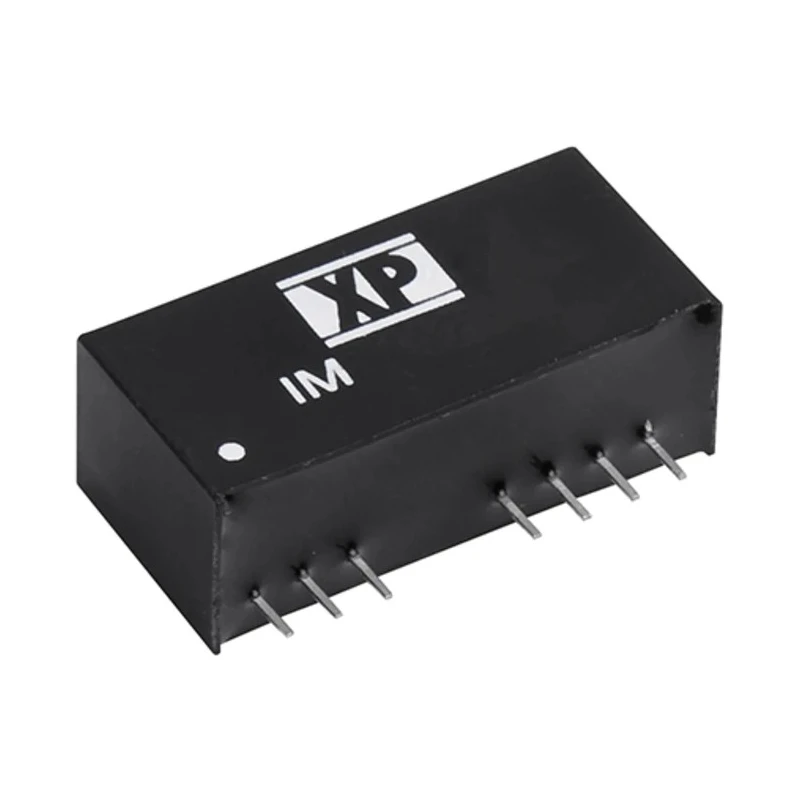

XP Power 2W Isolated Dual Output DC/DC Converter, 15V / -15V DC, 65mA Output, 75V DC Max Input, Through Hole IM4815S

XP Power IM4815S is a compact, high-reliability isolated DC/DC converter providing dual regulated outputs of +15V and -15V DC at 65mA output current each, delivering a maximum output power of 2 Watts. Designed for industrial, laboratory, and electronic device power management, this converter accepts a wide input voltage range from 18V to 75V DC, enabling versatile use in various power supply settings.

Encased in an industry standard SIP through-hole package, the IM4815S measures 26mm in length, 12.5mm in depth, and 9.2mm in width, with 7 pins, facilitating straightforward printed circuit board assembly. It offers an efficiency rating of 84%, enhancing energy savings in continuous operation.

Operating in harsh temperature environments from -40°C minimum to 100°C maximum, this product is capable of withstanding demanding industrial conditions. It also provides a high isolation voltage of 1500 V DC to protect circuitry from electrical noise and faults, making it suitable for sensitive electronic instrumentation and communication equipment.

Additional protections include continuous short circuit protection and remote on/off functionality, improving safety and flexibility in system designs. Its robust MTBF of 1,200,000 hours underscores exceptional reliability for long-term use.

Applications for the XP Power IM4815S DC/DC converter include industrial automation, telecommunications, laboratory instrumentation, and any electronics requiring isolated dual output low power supply solutions to ensure regulated and noise-free voltages.

This converter provides a regulated dual output voltage of +15V and -15V DC. It operates with a wide input voltage range from 18V to 75V DC, allowing flexible power input conditions. The device features a through-hole mount design for easy integration into printed circuit boards.

The efficiency reaches up to 84%, improving energy usage in systems. It supports an operating temperature range from -40°C to 100°C, suitable for harsh environments. Isolation voltage is rated at 1500 V DC, ensuring safety in sensitive applications.

The package type is SIP with 7 pins, measuring 26mm length, 12.5mm depth, and 9.2mm width. MTBF (Mean Time Between Failures) is rated at 1,200,000 hours, indicating high reliability. The converter incorporates continuous short circuit protection and remote on/off settings for operational safety.

Explore a comprehensive range of power supply solutions and DC/DC Converters from XP Power and other leading brands on EnvMart for your industrial and electronic project needs.
