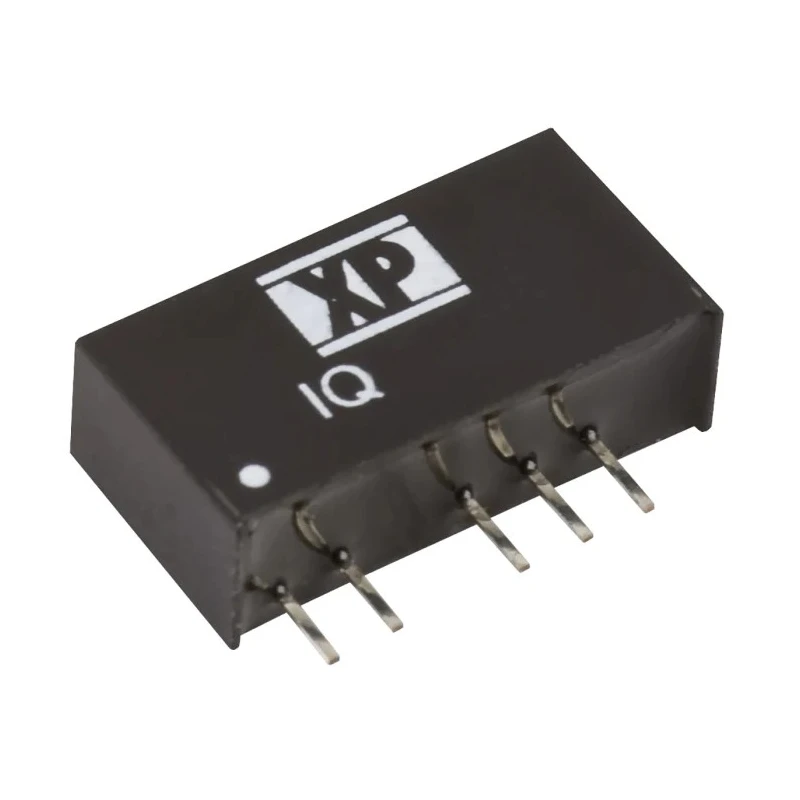

XP Power IQ Series Isolated DC/DC Converter Dual Output 5V and -5V 200mA 1W SIP Through Hole IQ0505S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IQ DC/DC Converter, 5V, -5 V/ 200 mA, 5 |
| Brand | XP Power |
| Efficiency | 83% |
| Length | 19.5mm |
| Model | IQ0505S |
| Depth | 10mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | IQ |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
Key Features
- The converter offers a maximum input voltage of 5.5V DC and a minimum input voltage of 4.5V DC.
- It features an isolation voltage of 1kV DC ensuring safety in industrial and electronic applications.
- Designed for reliable operation from -40°C to 85°C, suitable for harsh environments.
- The SIP package with 7 pins measures 19.5mm in length, 6mm width, and 10mm depth for easy through hole mounting.
- The unit achieves an efficiency of 83%, helping reduce energy loss in power conversion.
- With a mean time between failures (MTBF) of 1,100,000 hours, it ensures long-term reliability.
- Its isolated dual outputs are ideal for applications requiring both positive and negative voltages.
- Widely used in industrial, electronic, medical, and communication equipment requiring precise isolated DC power.
Product Description
XP Power IQ0505S DC/DC Converter is an isolated, dual output power module providing +5V and -5V outputs at 200mA with a maximum output power of 1W. It comes in a compact SIP through hole package designed for easy PCB mounting. The converter operates efficiently at 83% and is engineered to withstand operating temperatures from -40°C to 85°C, making it suitable for industrial and commercial electronic applications.
This DC/DC converter offers a nominal input voltage range between 4.5V to 5.5V DC with 1kV DC isolation between input and output circuits to prevent electrical noise and ensure safety. Its 7-pin SIP package measures 19.5mm by 6mm by 10mm, enabling use in space-constrained designs. The high MTBF of 1,100,000 hours indicates excellent reliability, providing long-term stable performance in demanding environments.
The IQ series represents XP Power's range of semi-regulated, isolated DC/DC converters optimized for applications in industrial controls, instrumentation, communications, medical devices, and other sensitive electronics requiring stable dual voltage rails. This model's isolated dual output voltages support dual rails often needed for operational amplifiers and analog circuitry.
Provides dual isolated outputs of +5V and -5V at 200mA. High efficiency of 83% minimizing power losses. Wide operating temperature range from -40°C up to 85°C. Compact SIP package with 7 pins for through hole mounting. 1kV DC isolation voltage for electrical noise reduction and safety.
Long service life with MTBF of 1,100,000 hours. Suitable for industrial, telecommunications, and medical applications.
This DC/DC converter offers rugged, reliable power conversion in a small footprint. The product is ideal for engineers seeking efficient isolated dual output power supply solutions within electronics and industrial applications. Browse more high-quality DC/DC Converters from XP Power and similar brands at EnvMart for precise power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the IQ0505S DC/DC converter is 5.5V DC.
This model provides dual outputs of +5V and -5V.
The efficiency rating of this converter is 83%, which helps minimize power losses during operation.
The operating temperature range for the IQ0505S is from -40°C to 85°C.
This model has two outputs.
The isolation voltage of the IQ0505S is 1kV DC, ensuring safety and reducing electrical noise.
The SIP package measures 19.5mm in length, 6mm in width, and 10mm in depth.
The mean time between failures (MTBF) for the IQ0505S is 1,100,000 hours, indicating high reliability.
This model utilizes a through hole mounting type for easy PCB installation.
The maximum output power of this converter is 1W.
The IQ0505S is commonly used in industrial, telecommunications, medical, and communication equipment requiring isolated DC power.
The SIP package of the IQ0505S has 7 pins.
