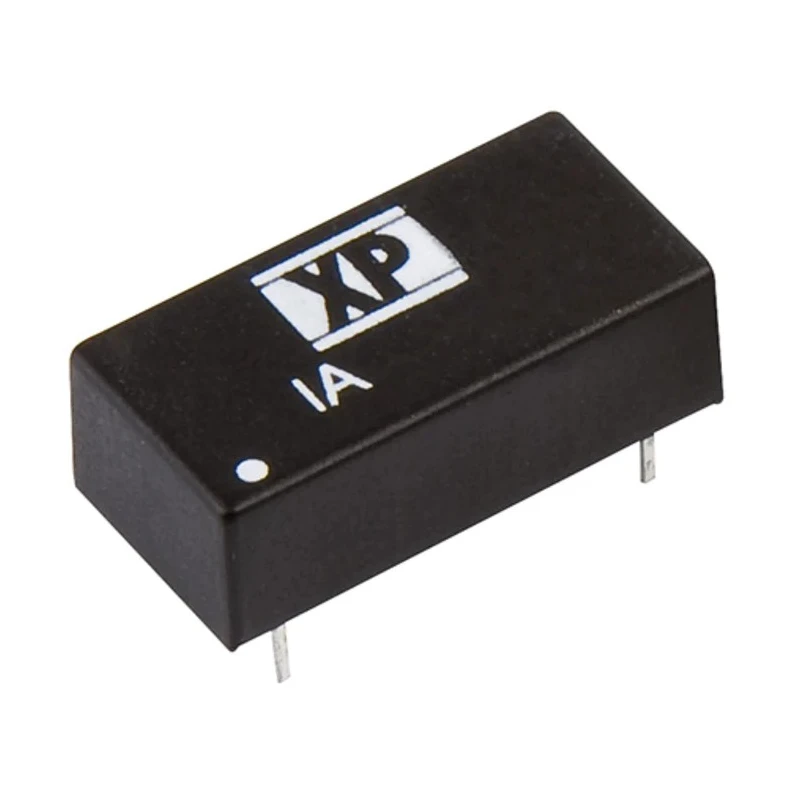

XP Power Dual Output Isolated 1W DC/DC Converter, 12V -12V Output, 5V DC Input, Through Hole DIP Package IA0512D

The XP Power IA0512D is a high-reliability, dual output isolated DC/DC converter designed for industrial, laboratory, and electronic equipment applications. It features two outputs providing 12V and -12V respectively, with an input voltage range of 0V to 5V DC. Encased in a standard through hole DIP package, this converter supports easy PCB mounting and integration with a pin count of four. The converter operates at an efficiency of approximately 78%, delivering up to 1 W of continuous output power.

With a wide operating temperature spanning from -40°C up to +85°C and an isolation voltage of 1000 VDC, the IA0512D offers robustness and safety essential for demanding environments such as manufacturing equipment, telecommunications, instrumentation, and healthcare electronics. The isolation ensures noise immunity and protects circuits from high voltage spikes.

Compact dimensions (20.32 mm length, 10.16 mm width, 6.35 mm depth) allow for high-density PCB layouts, while the industry-standard pinout facilitates swift replacement or design adoption. The high Mean Time Between Failures (MTBF) rating of 1,100,000 hours underlines the converter's dependable operation over extended periods.

This model is part of the IA series by XP Power, known for industrial-grade isolated DC/DC converters featuring SIP and DIP packages with wide temperature tolerances and strong electrical isolation. These converters are ideal for applications requiring stable, isolated dual voltage rails at low power levels.

Dual isolated 12V and -12V outputs with 5V DC input voltage. High reliability with an MTBF of over 1 million hours. Robust isolation of 1000 VDC for industrial safety. Operating temperature from -40°C to +85°C for extreme environment use.

Compact through hole DIP package with 4 pins. Efficiency rated at approximately 78% for power conservation.

XP Power's IA0512D DC/DC converter is suitable for industrial power supplies, test and measurement instruments, communications equipment, and medical devices requiring isolated dual voltage outputs with high reliability. It offers engineers a proven solution for small power isolated DC/DC conversion in space-constrained designs with demanding operating conditions.
