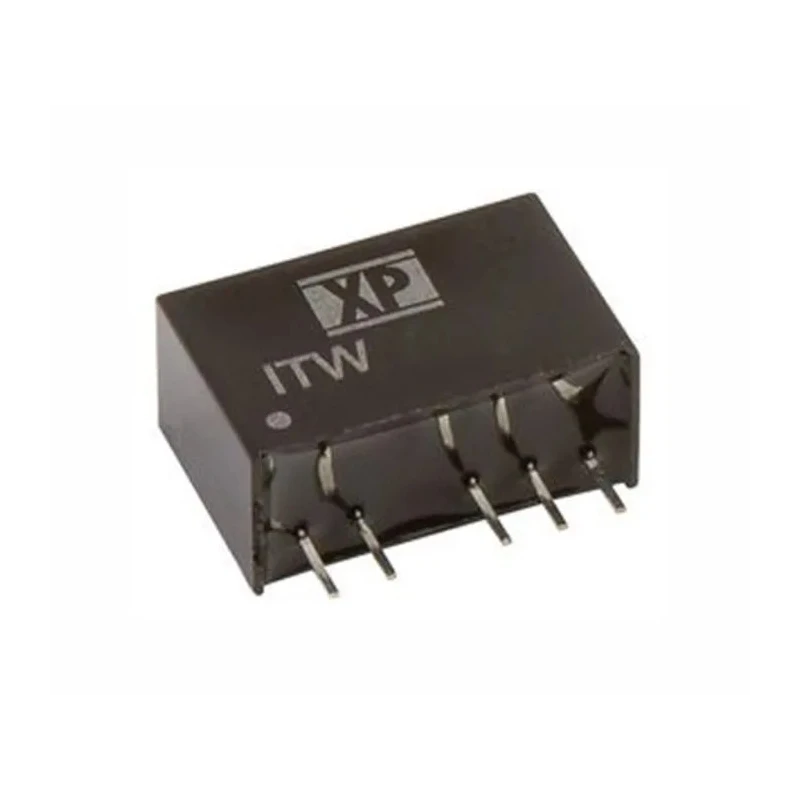

XP Power ITW Series Isolated DC/DC Converter 15V, -15V Output, 33mA, 36V DC Input, 1W, Through Hole ITW2415S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power ITW DC/DC Converter, 15V, -15 V/ 33 mA, 3 |
| Brand | XP Power |
| Efficiency | 79% |
| Length | 17mm |
| Model | ITW2415S |
| Depth | 11mm |
| Width | 7.62mm |
| Mount Type | Through Hole |
| Series | ITW |
| Maximum Operating Temperature | 105°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2800000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 33mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Operates with DC input voltage ranging from 18V minimum to 36V maximum.
- Compact SIP package with through-hole mounting for easy PCB assembly.
- High efficiency of 79% ensuring low power losses during operation.
- Wide operating temperature range from -40°C to 105°C suitable for harsh environments.
- Features 1.5kV DC isolation voltage for electrical safety and noise reduction.
- Includes 6 pins and industry standard pinout for reliable connections.
- Mean time between failures (MTBF) is 2,800,000 hours, indicating high reliability.
- Designed for applications requiring isolated dual outputs in power management and electronic circuits.
Product Description
XP Power ITW2415S is an isolated DC/DC converter from the ITW series, delivering dual output voltages of 15V and -15V with a maximum output current of 33mA and 1W output power. It accepts DC input voltages between 18V and 36V, making it suitable for a broad range of power supply applications.
The device features a through-hole SIP package with 6 pins, enabling straightforward PCB mounting and stable connection. Its efficiency rating of 79% ensures energy savings and less heat generation.
This converter offers robust operation across a wide temperature range of -40°C up to 105°C, suitable for industrial, laboratory, and commercial electronic systems that require reliable power conversion under varying environmental conditions.
The isolation voltage of 1.5kV DC provides enhanced electrical isolation, improving safety and noise immunity in sensitive electronic circuits. The high MTBF value of 2.8 million hours underlines its durability and long service life.
The compact dimensions (17mm length, 7.62mm width, 11mm depth) facilitate easy integration into space-constrained designs. The XP Power ITW series is ideal for applications in power management, automation, instrumentation, and other electronic systems requiring isolated dual voltage outputs.
Operates within 18V to 36V DC input voltage range. Dual isolated output: +15V and -15V with 33mA current capacity. SIP through-hole package with 6 pins for PCB assembly. High durability with MTBF of 2.8 million hours. Wide temperature operation from -40°C to 105°C.
Isolation voltage of 1.5kV DC for safety. Efficient power conversion with 79% efficiency. Compact size: 17 x 7.62 x 11 mm (LxWxD). Manufactured in Taiwan, Province Of China.
This product is a new condition isolated DC/DC Converter designed to meet industrial-grade power supply requirements. It is well-suited for applications in electronic manufacturing, measurement devices, and embedded system designs.
Explore EnvMart’s extensive range of power converters and electrical components for diverse industry needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a DC input voltage ranging from 18V to 36V.
This unit delivers dual isolated output voltages of +15V and -15V.
The maximum output current is 33mA.
It has an efficiency rating of 79%, which ensures low power losses during operation.
The isolation voltage is 1.5kV DC, providing enhanced electrical safety and noise reduction.
It operates within a wide temperature range from -40°C to 105°C.
This model features a through-hole SIP package for easy PCB assembly.
The dimensions are 17mm in length, 7.62mm in width, and 11mm in depth.
It includes 6 pins with an industry-standard pinout for reliable connections.
The MTBF is 2,800,000 hours, indicating high reliability.
It is designed for applications requiring isolated dual outputs in power management and electronic circuits.
It is manufactured in Taiwan.
