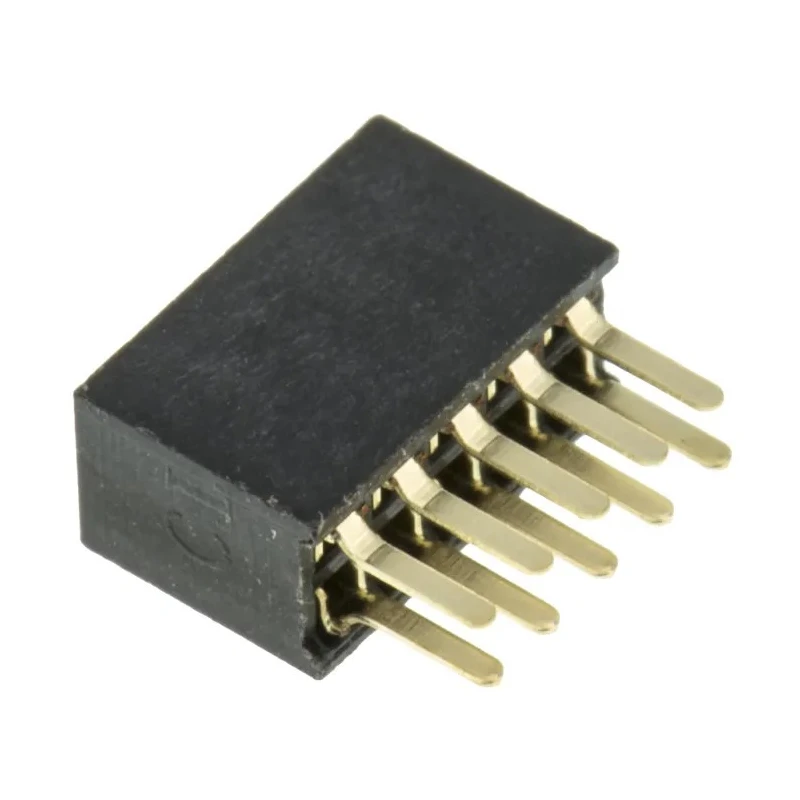

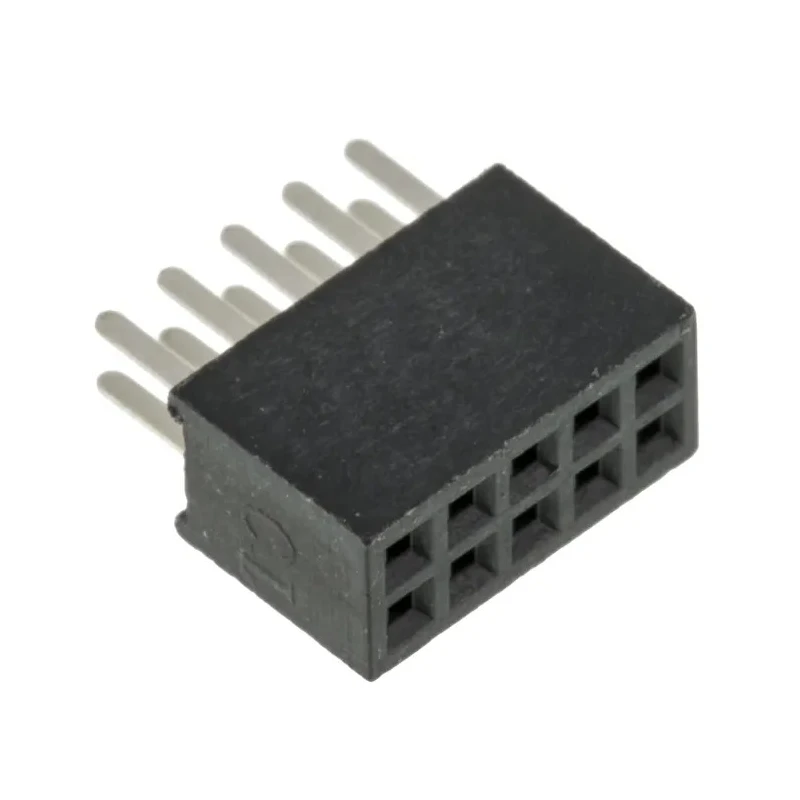

HARWIN M50 Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 1.27 mm Pitch, Solder Termination M50-3000545
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1kV |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M50-3000545 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M50 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a nylon housing material ensuring durable insulation.
- Gold-plated bronze contacts deliver excellent conductivity and corrosion resistance.
- Designed for through-hole mount with solder termination for secure assembly.
- Supports a current rating of 12A and voltage rating of 1kV.
- Operates reliably between -40°C to 105°C making it suitable for various industrial environments.
- Connector system is board-to-board with a straight orientation.
- Suitable for industrial electronics and PCB assembly applications.
- Manufactured in Taiwan, Province Of China ensuring quality standards.
Product Description
The HARWIN M50-3000545 PCB Socket is a high-quality, straight through hole connector designed for demanding industrial electronics applications. Featuring 10 female contacts arranged in 2 rows with a precise 1.27 mm pitch, it ensures accurate and reliable board-to-board interconnections in complex printed circuit board assemblies.
Constructed with a robust nylon housing, this socket provides excellent mechanical strength and electrical insulation. The contacts are made of bronze, enhanced with gold plating to provide superior conductivity and longevity, minimizing the risks of corrosion and contact wear over time.
This socket is designed for through-hole mounting with solder terminations, offering secure and durable solder joints on the PCB to withstand mechanical stress in industrial environments. Rated for a 12A current and up to 1kV voltage, it supports high-performance electronic circuits and power distribution requirements.
Operating temperature range from -40°C up to 105°C allows usage in a wide variety of industrial, manufacturing, and electronic assembly conditions. The connector system uses a straight orientation to facilitate easy and consistent mating with matching headers.
Durable nylon housing for electrical insulation and mechanical durability. Gold-plated bronze contacts to ensure outstanding electrical performance. Through-hole mount type providing reliable solder connections. High current and voltage rating suitable for demanding industrial circuits.
Wide operating temperature range for versatility in applications. Precise 1.27 mm pitch and 10 contacts arranged in 2 rows for compact design. Manufactured in Taiwan maintaining high-quality standards. Ideal for board-to-board connections in industrial electronics and manufacturing.
HARWIN’s M50 series connectors are widely used in industrial, electronic manufacturing, and PCB assembly applications for enhanced production efficiency and durability. This socket is compatible with a variety of matching headers in the M50 product family, securing excellent functional integration.
Explore a broad range of HARWIN PCB connectors and accessories with EnvMart for reliable sourcing of premium electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN M50-3000545 PCB socket supports a current rating of 12A and a voltage rating of 1kV.
This model features a pitch of 1.27 mm and has 10 female contacts arranged in 2 rows.
It uses solder termination for secure assembly on the PCB.
The housing is made of nylon, while the contacts are constructed from bronze and are gold-plated for enhanced conductivity.
The operating temperature range for this socket is from -40°C to 105°C.
This socket is designed for through-hole mounting.
Yes, it is designed for board-to-board connections with a straight orientation.
It is manufactured in Taiwan, Province Of China.
The specific dimensions of the HARWIN M50-3000545 socket are not provided in the available data.
This socket is suitable for industrial electronics and PCB assembly applications.
It utilizes a board-to-board connector system.
The contact gender of this socket is female.
