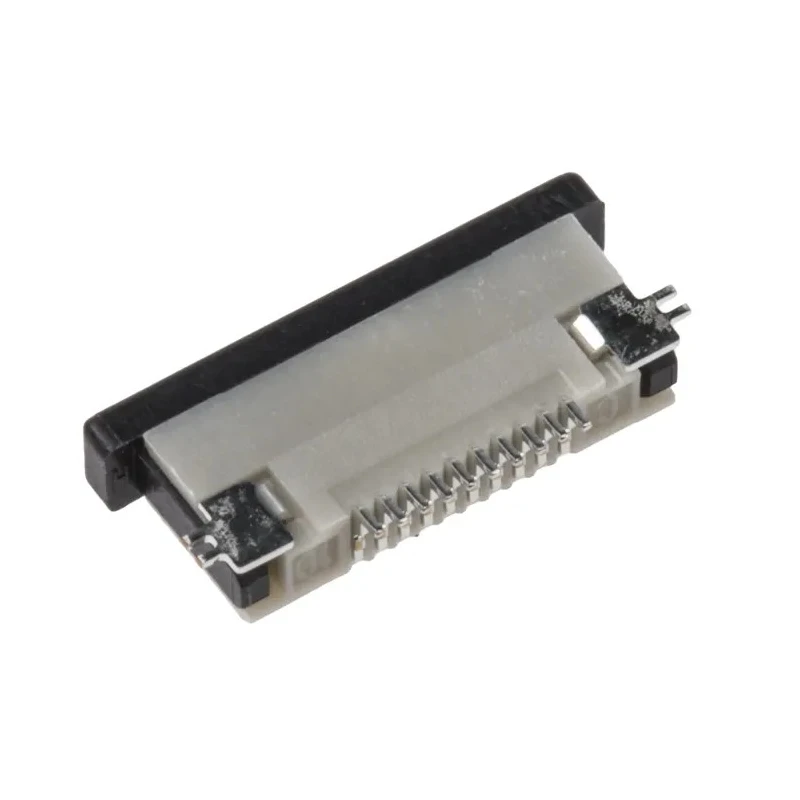

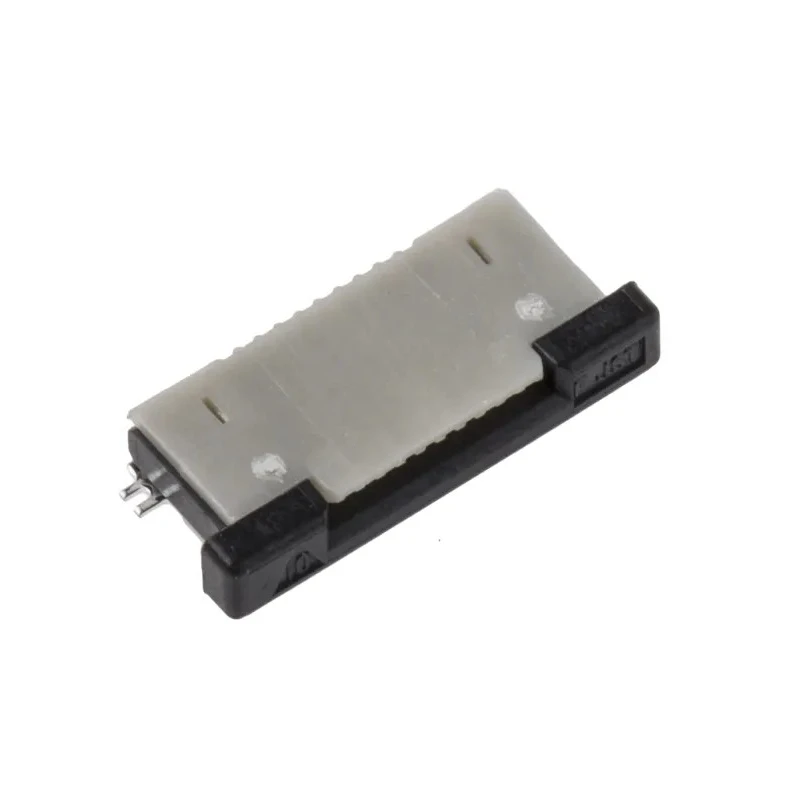

JST FLZ Series 0.5 mm Pitch 10 Way Straight Female FPC Connector, Surface Mount, Solder Termination 10FLZ-SM2-TB(LF)(SN)(P)

JST 10FLZ-SM2-TB(LF)(SN)(P) is a surface mount female FPC Connector from the FLZ series with a 0.5 mm pitch and 10 positions. This connector is designed to provide reliable connections for flexible printed circuits (FPC) and flexible flat cables (FFC) in electronics applications.

The zero insertion force (ZIF) mechanism significantly reduces force during cable insertion, minimizing contact wear and extending the connector’s lifespan. Its compact design with a height of just 2.00 mm above the PCB is ideal for space-constrained assemblies.

The connector is constructed from heat resistant polyphenylene sulphide housing that is compatible with SMT reflow soldering processes. Phosphor bronze contacts plated with tin ensure excellent electrical performance and durability under demanding industrial conditions. The locking mechanism secures the cable firmly in place to prevent disconnections.

Operating voltage is rated at 50 V AC with a current capacity of 500 mA, making it suitable for low power consumer electronics, instrumentation, and communication equipment. The temperature range of -25°C to 85°C ensures functionality in diverse environments.

This JST FLZ connector features a single row with 10 contacts arranged in a top contact position, designed for straight orientation and solder termination type. It supports both normal and reverse configurations for design flexibility.

Common applications include industrial instrumentation, consumer electronics, computing devices, and automotive electronics where compact and reliable FPC connections are essential.

Compact space-saving design for tight PCB layouts. Zero insertion force mechanism to reduce connector wear. Heat resistant thermoplastic housing, SMT reflow solder compatible. Surface mount tails allow inspection post assembly.

10 contacts with top position, straight orientation. Locking mechanism for secure connection retention. Operates between -25°C and 85°C ambient temperature. Phosphor bronze contact material with tin plating. Rated 50 V AC and 500 mA current capacity.

Manufactured in Japan by JST. Explore the full range of JST connectors and related electronic components at EnvMart for your industrial and laboratory requirements.
