JST FLZ 0.5 mm Pitch 12 Way Right Angle Female FPC Connector ZIF Top Contact 12FLZ-SM2-TB(LF)(SN)(P)

Free Delivery in India | Lowest Global Shipping Charges

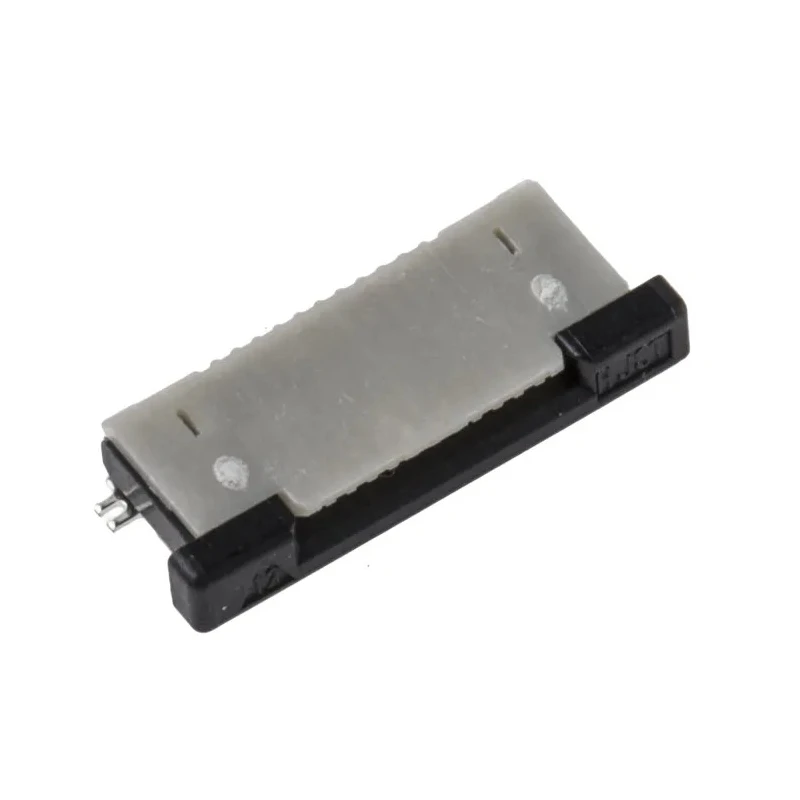

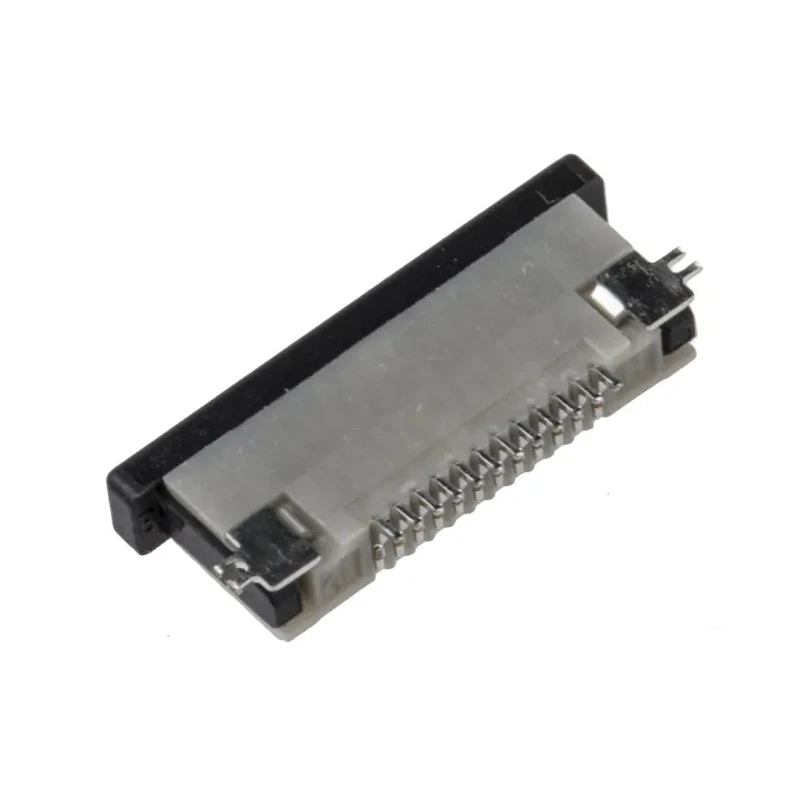

JST FLZ 0.5 mm Pitch 12 Way Right Angle Female FPC Connector ZIF Top Contact 12FLZ-SM2-TB(LF)(SN)(P)



Category FPC Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	50, 50V ac
Brand	JST
Orientation	Right Angle
Current	500mA
Model	12FLZ-SM2-TB(LF)(SN)(P)
Mount Type	Surface
Housing Material	Polyamide 6T
Contact Material	Phosphor Bronze
Series	FLZ
Termination Type	ZIF Top Contact
Maximum Operating Temperature	85°C
Sub Type	Easy-On FFC/FPC Connector
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Top

Key Features

Compact space-saving design with a height of 2.00 mm above PCB.
Zero Insertion Force (ZIF) mechanism enhances wear resistance and prolongs connector life.
Heat resistant polyamide 6T housing compatible with SMT reflow soldering.
Inline surface mount tails facilitate easy visual inspection.
Available in normal and reverse configurations for flexible designs.
Supports 500mA current with a 50V AC voltage rating.
Contact parts made of phosphor bronze with tin plating for reliable conductivity.
Operating temperature range from -25°C to 85°C ensures performance stability.

Product Description

JST 12FLZ-SM2-TB(LF)(SN)(P) is a 0.5 mm pitch 12 way right angle female FPC connector, providing a reliable ZIF (Zero Insertion Force) top contact solution for electronics requiring compact and robust PCB interconnections.

The connector features a low profile design with just 2.00 mm height above the PCB, enabling installation in tight space constrained applications. The ZIF mechanism reduces insertion force, minimizing wear and extending durability of both connector and cable.

The housing is made from heat resistant polyamide 6T thermoplastic material, making it fully compatible with SMT reflow soldering processes. Inline surface mount tails provide easy inspection during assembly to verify proper placement.

Designed for currents up to 500mA and an AC voltage rating of 50V, this connector supports industrial, commercial, automotive electronics, and laboratory applications requiring fine pitch flexible printed circuit (FPC) connections.

Its robust locking mechanism ensures secure mating of cables during device operation. Additionally, the connector has a wide operating temperature range from -25°C to 85°C, performing reliably under varied environmental conditions.

Contact materials feature phosphor bronze with tin plating to ensure excellent conductivity and corrosion resistance. The connector series supports both normal and reverse configurations, allowing flexibility in design requirements.

Manufactured in Japan, this product meets stringent quality standards suitable for electronics manufacturing, assembly, and repair processes. Compact space-saving design. Zero insertion force mechanism to reduce wear. Heat resistant thermoplastic housings compatible with SMT reflow solder.

Inline surface mount tails for easy inspection. Available in normal and reverse configurations for design flexibility. 500mA current support at 50V AC rating. Phosphor bronze contacts with tin plating. Operating temperature range -25°C to 85°C.

Secure locking mechanism. Manufactured in Japan ensuring quality.

Suitable for industrial, laboratory, automotive, and commercial electronic assemblies requiring precision and durability in flexible printed circuit connections. Explore more in EnvMart's Electronics Components FPC Connector category for compatible parts and accessories.
