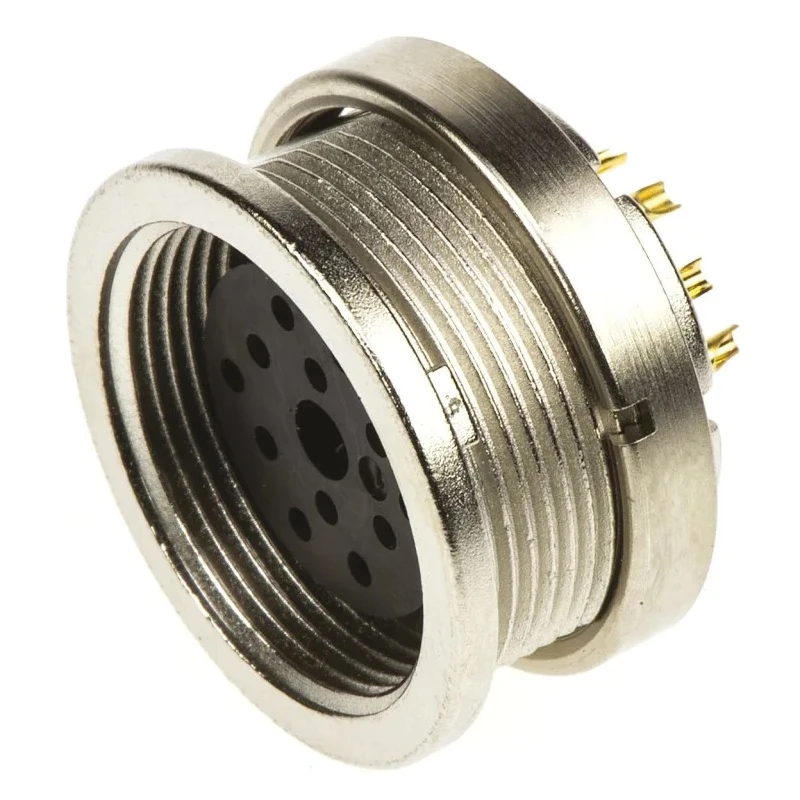

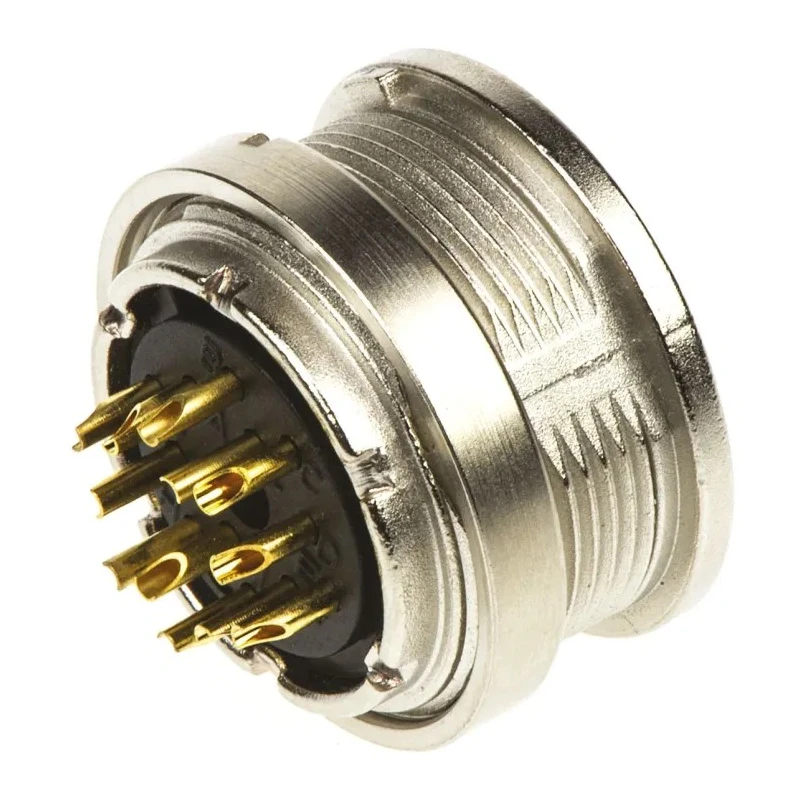

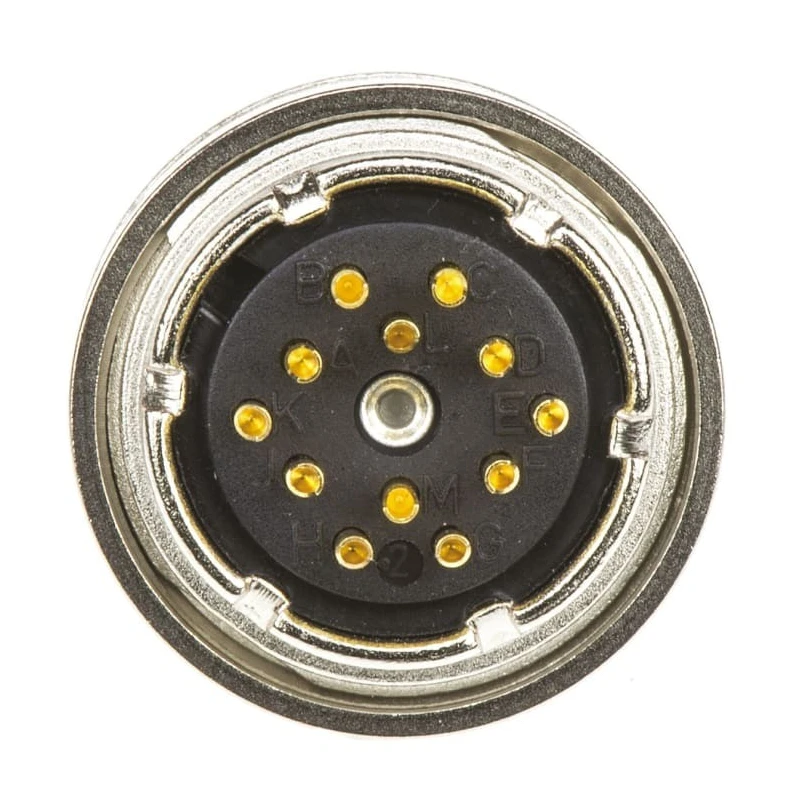

binder Circular Connector, 12 Contacts, Panel Mount, M16 Connector, Socket, Female, IP40, 680 Series 09-0332-00-12
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Shell Size | 18.5 mm |
| Connector Size | M16 |
| Plug/Socket | Socket |
| Hirose Connector, 12 Contacts, Panel Mount, Miniature Connector, MaleBrand | Hirose |
Key Features
- Provides reliable electrical connections with 12 gold-plated brass contacts.
- Panel mount design suitable for industrial and automation applications.
- Supports a rated current of 3A and voltage up to 60V.
- Constructed with die cast zinc housing for robustness and durability.
- Operating temperature range from -40°C to +85°C ensures performance in diverse environments.
- Connector series 680 ensures miniature size with straight orientation for easy installation.
- Solder termination type compatible with precise wiring requirements.
- Contact plating and material prevent oxidation and extend connector life.
Product Description
binder 09-0332-00-12 Circular Connector is a high-quality industrial grade circular connector featuring 12 gold-plated brass contacts arranged in a miniature M16 sized panel mount socket configuration. It operates reliably at currents up to 3A with voltage rating of 60V, making it suitable for a range of industrial automation, machine tool control, and instrumentation applications.
The connector’s robust die cast zinc housing offers durability and protection, while the IP40 rating ensures ingress protection against solid particles, suitable for indoor environments. Operating temperature spans from -40°C to +85°C, accommodating both cold and hot industrial climates.
The straight orientation and solder termination type support ease of assembly and precise wiring requirements. Contact materials are carefully selected silver-plated brass to prevent oxidation, protecting electrical conductivity over prolonged use.
This 680 series connector, manufactured in Germany, stands out as a reliable solution for demanding industrial connection needs including medical equipment and industrial automation systems.
12 gold-plated brass contacts for reliability. Panel mount type with M16 connector size. Supports current of 3A and voltage of 60V. Die cast zinc housing for enhanced durability. IP40 rating suitable for indoor protection.
Operating temperature range -40°C to +85°C for versatile environments. Straight orientation for straightforward wiring. Solder termination ensures strong connections. Manufactured in Germany for quality assurance.
This binder circular connector is ideal for industrial, laboratory, HVAC, manufacturing, and medical equipment applications. It provides a robust and durable connection option for panel mounting in electronic and electrical systems.
Explore more industrial connectors and components on EnvMart for comprehensive solutions tailored to your technical needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This circular connector supports a maximum current of 3A and a voltage rating of 60V.
The connector has an IP40 rating, providing protection against solid particles, making it suitable for indoor environments.
It features a die cast zinc housing for durability and gold-plated brass contacts to ensure reliable electrical connections.
The operating temperature range is from -40°C to +85°C, allowing it to perform in diverse environmental conditions.
This model uses a solder termination type, which supports precise wiring requirements for reliable connections.
The connector features 12 gold-plated brass contacts arranged in a female configuration.
The shell size of this circular connector is 18.5 mm, which corresponds to its M16 size designation.
No, the IP40 rating indicates it is designed for indoor use only, providing limited protection against environmental factors.
It is suitable for industrial automation, machine tool control, instrumentation, and medical equipment applications.
This connector is manufactured in Germany, ensuring quality assurance in its production.
The connector has a straight orientation, which facilitates straightforward wiring during installation.
The contacts are made of brass and are gold-plated to prevent oxidation and enhance conductivity over time.
