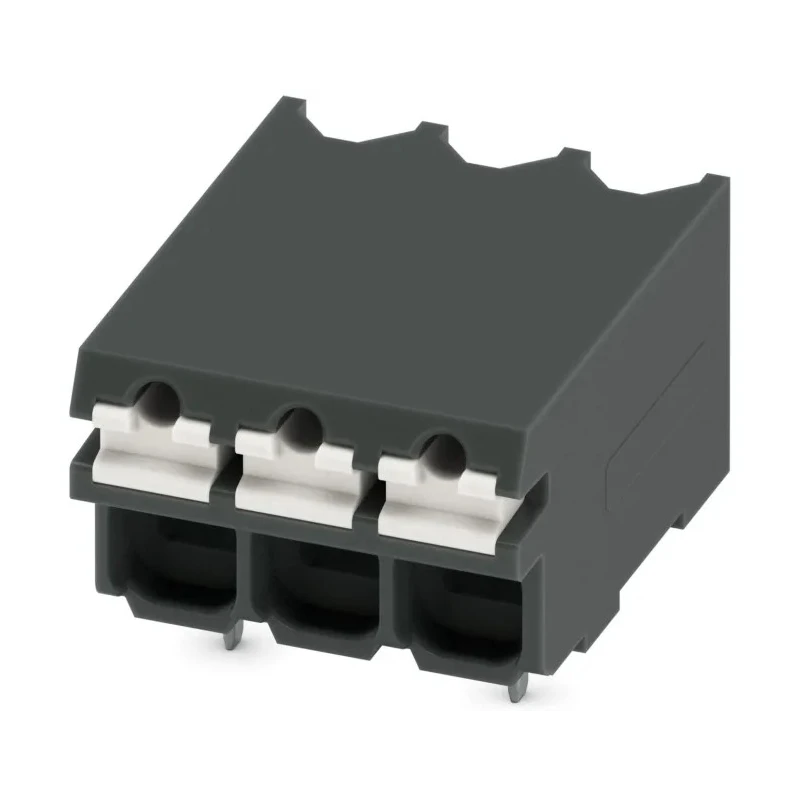

Phoenix Contact PCB Terminal Block 3-Contact 3.5 mm Pitch Surface Mount 160 V 17.5 A SPT-SMD 1.5/ 3-H-3.5 R24 1824530
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 17.5A |
| Length | 11mm |
| Model | 1824530 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Series | SPT-SMD 1.5/ 3-H-3.5 R24 |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Standards/Approvals | EU, RoHS |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- Supports current up to 17.5 amperes and voltage up to 160 volts.
- Push-in spring connection allows easy, tool-free conductor installation.
- Accommodates wire sizes from 24 AWG to 16 AWG (0.2 to 1.5 mm²).
- Features a spring actuation lever that simplifies conductor connection and disconnection.
- Delivered in tape-on-reel packaging suitable for automated assembly processes.
- Compact size with dimensions 11 mm length, 7.7 mm width, and 13.6 mm depth.
- Available in horizontal and vertical versions for flexible PCB mounting.
- Complies with EU RoHS standards ensuring environmentally safe materials.
Product Description
Phoenix Contact 1824530 PCB Terminal Block from the SPT-SMD 1.5/ 3-H-3.5 R24 series is a 3-contact surface mount terminal block designed for printed circuit board (PCB) applications. It features a 3.5 mm pitch and supports currents up to 17.5 A and voltages up to 160 V, making it suitable for medium power electrical connections in industrial and electronic devices.
The terminal block utilizes push-in spring technology with a spring actuation lever, allowing easy, tool-free connection and disconnection of solid or stranded conductors ranging from 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG). This connection method combines spring cage and direct push-in features for secure and reliable electrical contact, reducing assembly time and costs.
Designed for surface mounting, the horizontal versions incorporate two anchoring pins for PCB positioning alignment, while vertical versions employ twin soldering pins for firm attachment. The compact terminal has dimensions of 11 mm in length, 7.7 mm width, and 13.6 mm depth and is available in black color.
The SPT-SMD series terminal blocks are supplied on tape-on-reel packaging compliant with IEC 60283-3 standards, facilitating automated assembly with reflow soldering processes. Its compliance with EU RoHS regulations ensures environmentally friendly materials and processes.
Typical applications of this terminal block include industrial electronics, automation equipment, power distribution on PCBs, and other electronic control systems requiring robust electrical connections with simplified wiring and reliable performance.
Supports current up to 17.5 amperes and voltage up to 160 volts. Push-in spring technology with spring actuation lever for tool-free connections. Wire size range: 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG). Surface mount type with PCB anchoring and soldering pins.
Tape-on-reel packaging for automated PCB assembly. Complies with EU RoHS standards for hazardous substance control. Compact design measuring 11 mm by 7.7 mm by 13.6 mm. Available in both horizontal and vertical mounting versions.
Explore the Phoenix Contact range of PCB Terminal Blocks on EnvMart for reliable and efficient electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a maximum current of 17.5 amperes and a voltage of 160 volts.
It accommodates wire sizes ranging from 24 AWG to 16 AWG, or 0.2 mm² to 1.5 mm².
The terminal block utilizes a push-in spring connection method, allowing for easy, tool-free installation and disconnection of conductors.
The compact dimensions of this model are 11 mm in length, 7.7 mm in width, and 13.6 mm in depth.
This model is available in both horizontal and vertical mounting versions for flexible PCB installation.
It is delivered in tape-on-reel packaging, which is suitable for automated assembly processes.
It complies with EU RoHS standards, ensuring that it is made from environmentally safe materials.
This terminal block is part of the SPT-SMD 1.5/ 3-H-3.5 R24 series.
The terminal block is black in color.
The pitch of this terminal block is 3.5 mm.
This model features 3 contacts.
The country of origin for this terminal block is India.
