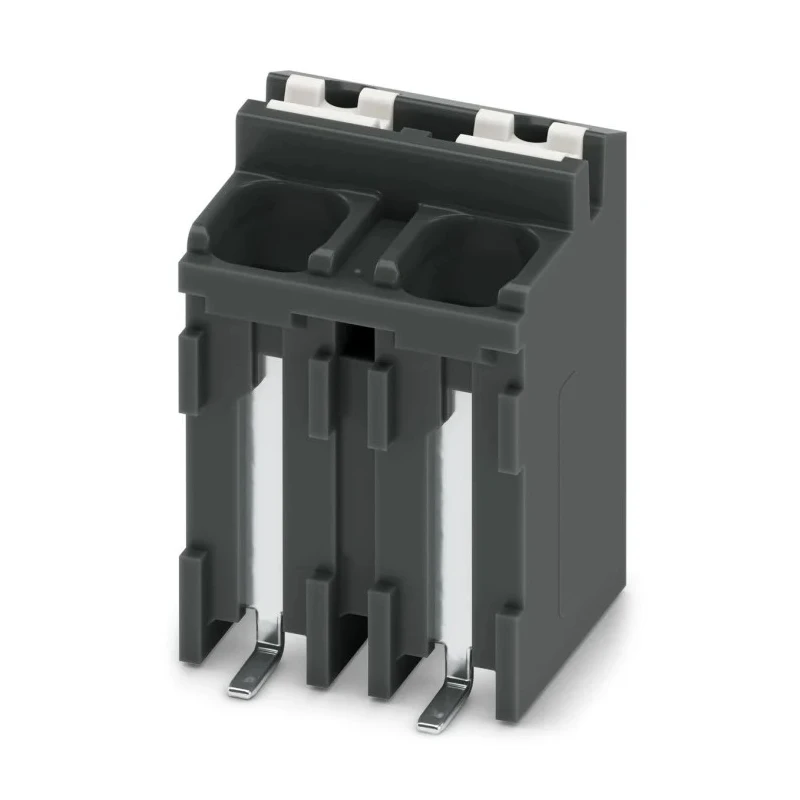

Phoenix Contact SPT-SMD 1.5/ 2-V-5.08 R24 Series PCB Terminal Block 2-Contact 5.08 mm Pitch Surface Mount 1824417
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 9.08mm |
| Model | 1824417 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | SPT-SMD 1.5/ 2-V-5.08 R24 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 2 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- Supports currents up to 13.5 A ensuring reliable electrical performance.
- Offers a voltage rating of 500 V suitable for various industrial applications.
- Constructed with Liquid Crystal Polymer housing material for durability and heat resistance.
- Features spring actuation lever for easy and tool-free wire connection and disconnection.
- Accommodates wire sizes from 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG).
- Available as a single row terminal block with 2 contacts for compact PCB layouts.
- Black color housing with straight orientation optimizes PCB design integration.
- Designed and manufactured in Germany ensuring high quality standards.
Product Description
Phoenix Contact 1824417 PCB Terminal Block is a high-quality surface-mounted electronic component designed for use in printed circuit boards. This product features a 2-contact configuration with a 5.08 mm pitch, making it ideal for reliable electrical connections in industrial, manufacturing, and automation equipment.
The terminal block supports a current rating of up to 13.5 A and a voltage of 500 V, suitable for demanding electrical applications. The housing is made from Liquid Crystal Polymer, which provides excellent heat resistance, mechanical strength, and durability during operation.
Equipped with a spring actuation lever, this PCB terminal block enables quick, tool-free wire connection and disconnection, saving installation time and improving maintenance efficiency. It accommodates wire sizes ranging from 0.2 mm² to 1.5 mm² (AWG 24 to AWG 16), supporting a variety of conductor types including solid and stranded wires.
This product is a single row terminal block in black color with a straight orientation, designed to fit compact and space-optimized PCB layouts. It features soldering pins that secure the connection to the PCB ensuring mechanical stability during operation and assembly. The SPT-SMD 1.5/ 2-V-5.08 R24 series is delivered in tape-on-reel packaging facilitating automated assembly processes such as reflow soldering.
Applications of the Phoenix Contact 1824417 include industrial automation systems, control panels, electrical distribution, and other electronics requiring dependable and quick-connect terminal block solutions. Made in Germany, this terminal block complies with high manufacturing and quality norms, delivering exceptional performance in electronics and electrical engineering tasks.
Supports currents up to 13.5 A ensuring reliable electrical performance. Offers a voltage rating of 500 V suitable for various industrial applications. Constructed with Liquid Crystal Polymer housing material for durability and heat resistance.
Features spring actuation lever for easy and tool-free wire connection and disconnection. Accommodates wire sizes from 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG). Available as a single row terminal block with 2 contacts for compact PCB layouts.
Black color housing with straight orientation optimizes PCB design integration. Designed and manufactured in Germany ensuring high quality standards.
Explore the category Electronics Components at EnvMart for a wide range of PCB Terminal Blocks and related products to complement your electronic design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block supports a maximum current rating of 13.5 A, ensuring reliable electrical performance in various applications.
It has a voltage rating of 500 V, making it suitable for demanding industrial applications.
This model features a pitch size of 5.08 mm, which is standard for many PCB layouts.
It accommodates wire sizes ranging from 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG), supporting both solid and stranded wires.
Wires are connected using a spring actuation lever, allowing for easy and tool-free connection and disconnection.
The housing is constructed from Liquid Crystal Polymer, providing excellent heat resistance and mechanical strength.
The dimensions are 9.08 mm in length, 7.7 mm in width, and 13.6 mm in depth, making it compact for PCB integration.
This model has 2 contacts, designed for single row configurations on PCBs.
It features a straight orientation, which optimizes PCB design integration.
It is designed and manufactured in Germany, ensuring adherence to high quality standards.
It is suitable for use in industrial automation systems, control panels, and electrical distribution, among other electronics applications.
The terminal block is delivered in tape-on-reel packaging, which facilitates automated assembly processes such as reflow soldering.
