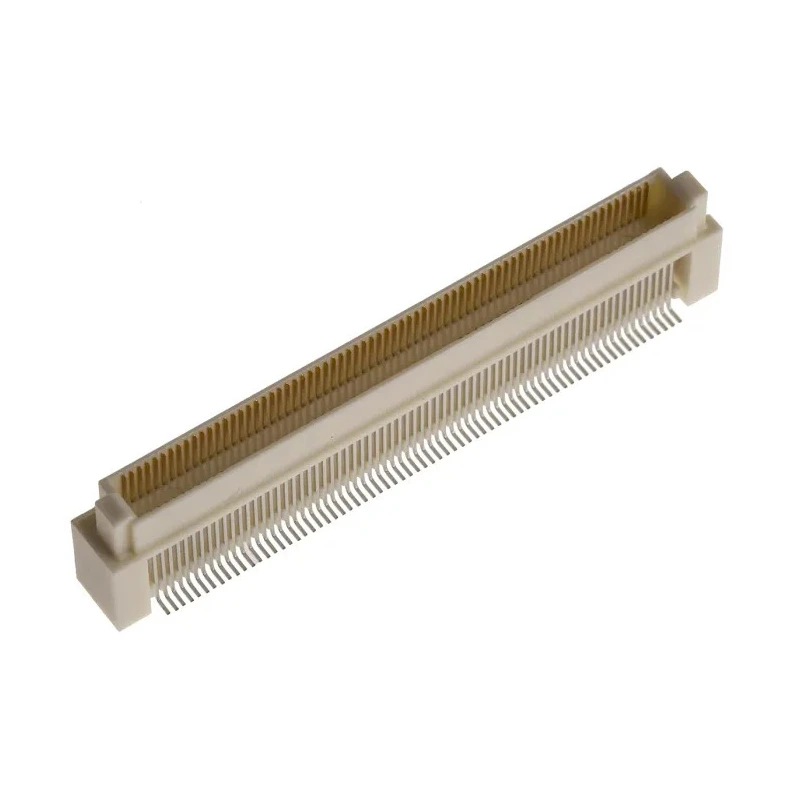

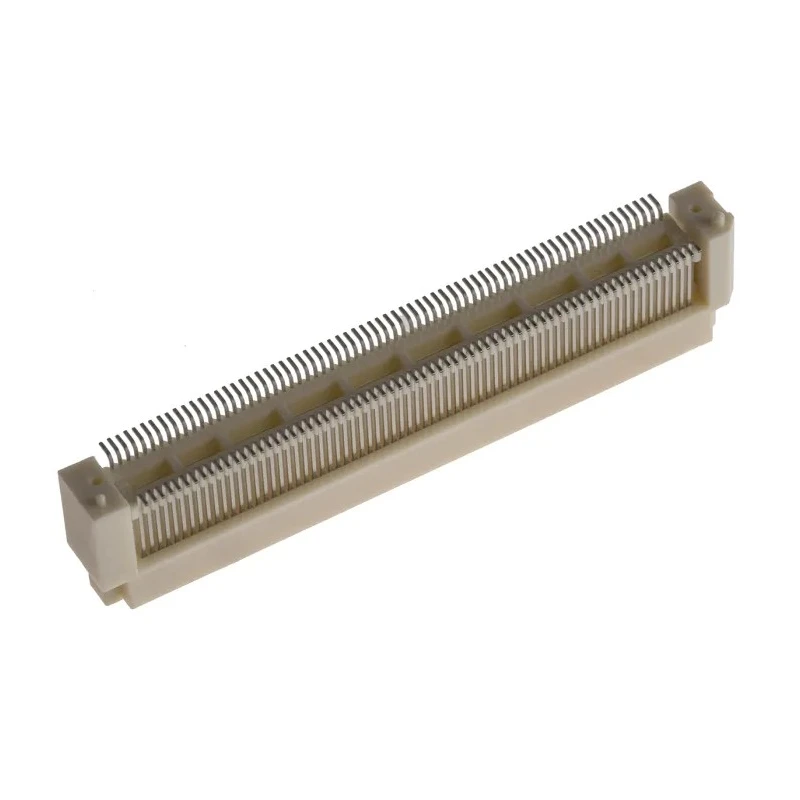

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 140 Contact, 0.6 mm Pitch, 2 Row, Shrouded FX8C

Hirose FX8C Series Straight Surface PCB Header FX8C offers 140 contacts with a precise 0.6 mm pitch in a 2-row shrouded configuration, designed for board-to-board surface mounting applications. Manufactured with polyphenylene sulphide housing and phosphor bronze contacts plated in gold, this connector assures excellent durability and conductivity within demanding industrial environments.

FunctionMAX FX8C connectors support high-speed data transmission up to 3.125 Gbit/s, ensuring superior signal integrity for critical communications in servers, broadcast equipment, and industrial machinery. The built-in mating guide ribs permit a self-alignment tolerance of +/- 0.6 mm, simplifying installation and allowing design flexibility.

These connectors feature a spring deflection contact design paired with a 2 mm wiping distance to maintain reliable electrical continuity over extended operational periods. Operating at currents up to 400mA and a voltage rating of 100V, they are suitable for varied electronic applications.

The connectors operate reliably in temperature ranges from -55°C to 85°C, making them well suited for harsh or temperature-variable industrial and medical equipment environments. The shrouded surface mount design and board-to-board system facilitate compact PCB layouts in space-constrained designs.

FunctionMAX FX8C series connectors cannot mate with FX8 series connectors, maintaining design integrity. This product is made in Indonesia and is provided new. Enables high-speed transmission of up to 3.125 Gbit/s for excellent signal integrity.

Features a built-in mating guide rib allowing +/- 0.6 mm self-alignment tolerance. Constructed with phosphor bronze contacts plated with gold for reliable conductivity. Shrouded connector system providing board-to-board connectivity with surface mount design.

Supports a current rating of 400mA and operating voltage of 100V. Compact 0.6 mm pitch spacing with 2 rows, suitable for dense PCB layouts. Wide operating temperature range from -55°C to 85°C to suit industrial applications.

Designed with spring deflection contacts for increased reliability and electrical continuity. Ideal for servers, broadcast equipment, industrial and medical devices, and POS terminals. Explore the complete range of Hirose electronic connectors on EnvMart to find solutions tailored to your industrial and commercial PCB interconnection needs.
