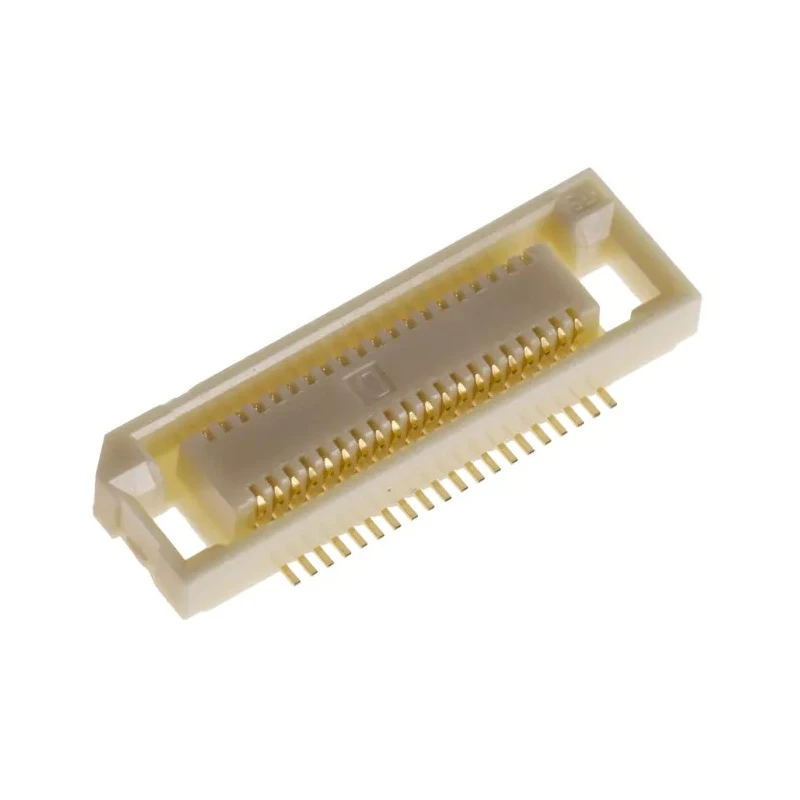

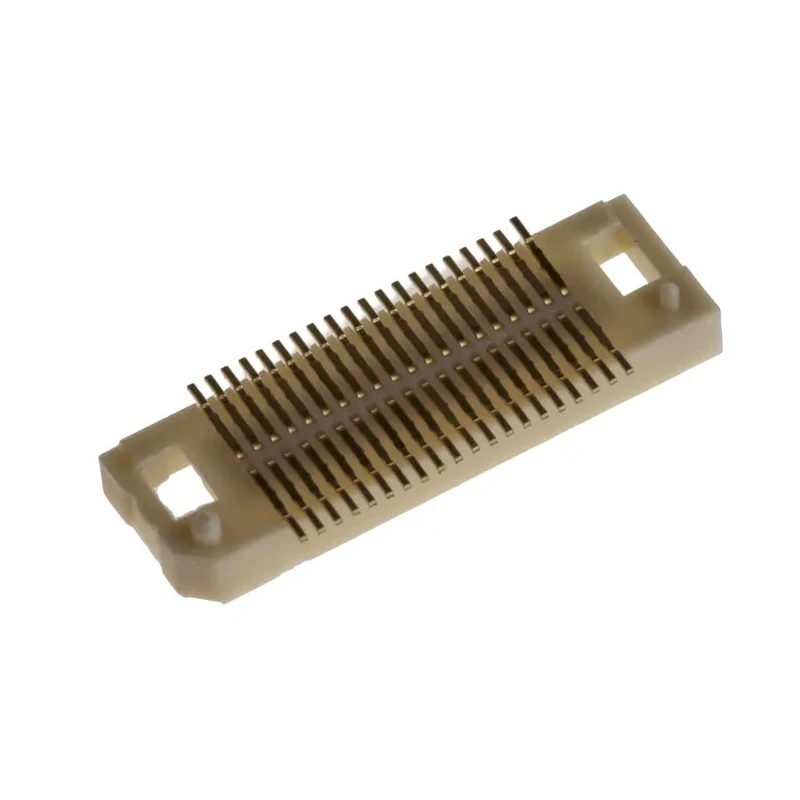

Hirose FunctionMAX FX8 Series Straight Surface PCB Socket 40-Contact 1 Row 0.6 mm Pitch Solder FX8-40S-SV(21)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8-40S-SV(21) |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Bronze |
| Series | FunctionMAX FX8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Stacking Height | 16mm |
Key Features
- Supports high-speed transmission up to 3.125 Gbit/s ensuring excellent signal integrity.
- Built-in guide ribs permit ±0.6 mm mating misalignment tolerance for easy connector mating.
- Contact current rating of 400mA with voltage rating of 100V.
- Constructed with polyphenylene sulphide housing and gold-plated bronze contacts for durability and performance.
- Operates reliably in temperature ranges from -55°C to 85°C, suitable for industrial applications.
- Features SMT coplanarity with solder area tolerance less than 0.1 mm for precise mounting.
- Includes guide posts for PCB alignment and to prevent misinsertion during assembly.
- Designed for servers, broadcast equipment, medical devices, industrial gear, and POS terminals.
Product Description
Hirose FX8-40S-SV(21) is a FunctionMAX FX8 Series Straight Surface PCB Socket featuring 40 female contacts arranged in a single row with a fine 0.6 mm pitch, designed for surface mount technology applications.
This PCB socket is engineered for high-speed data transmission up to 3.125 Gbit/s, making it ideal for contemporary electronic devices requiring superior signal integrity and noise resistance.
The connector's polyphenylene sulphide housing provides robust mechanical durability and thermal stability, while gold-plated bronze contacts ensure high conductivity and reliable long-term electrical performance.
Its operational temperature range of -55°C to 85°C enables deployment in demanding industrial, server, broadcast, and medical equipment applications. The built-in guide ribs and mating guides support ±0.6 mm alignment tolerance, facilitating easy and accurate mating without stress to the boards.
Additional features include a 2 mm wiping distance for electrical continuity and an optimized spring deflection contact design to enhance reliability over multiple connection cycles.
Installation is streamlined by the surface mount orientation with tight SMT coplanarity, maintaining solder area tolerance less than 0.1 mm. Guide posts of varying diameter assist in correct PCB placement and prevent connector misinsertion during assembly processes.
High-speed data transmission up to 3.125 Gbit/s. ±0.6 mm built-in misalignment tolerance with guide ribs. Gold-plated bronze contacts for durability and conductivity. Polyphenylene sulphide robust housing for thermal and mechanical stability.
Wide operating temperature range from -55°C to 85°C. 2 mm wiping distance enhancing electrical continuity. Surface mount technology with precise SMT coplanarity. Guide posts prevent misinsertion and ease assembly. Applications across servers, broadcast, medical, and industrial sectors.
This FunctionMAX FX8 Series connector represents Hirose’s commitment to advancing industrial and electronic communications technology with high-quality, reliable, and versatile PCB Socket solutions.
Explore more Hirose PCB connectors and related FunctionMAX series products on EnvMart for comprehensive electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports high-speed data transmission up to 3.125 Gbit/s, ensuring excellent signal integrity.
This model operates reliably within a temperature range of -55°C to 85°C, making it suitable for industrial applications.
The contact current rating is 400mA with a voltage rating of 100V.
It features a polyphenylene sulphide housing and gold-plated bronze contacts, providing durability and high conductivity.
This PCB socket has 40 female contacts arranged in a single row with a 0.6 mm pitch.
The built-in guide ribs allow for ±0.6 mm mating misalignment tolerance, facilitating easy and accurate mating without stress to the boards.
It is designed for surface mount technology (SMT) applications, ensuring precise installation.
The FX8-40S-SV(21) features a 2 mm wiping distance that enhances electrical continuity during connection.
It is suitable for use in servers, broadcast equipment, medical devices, industrial gear, and POS terminals.
The stacking height of this model is 16 mm, which is important for space considerations in PCB design.
This connector has a straight orientation, suitable for direct board-to-board connections.
The country of origin for this model is Japan.
