Hirose FunctionMAX FX18 Series Straight Surface PCB Header 80 Contacts 0.8 mm Pitch 2 Row Shrouded

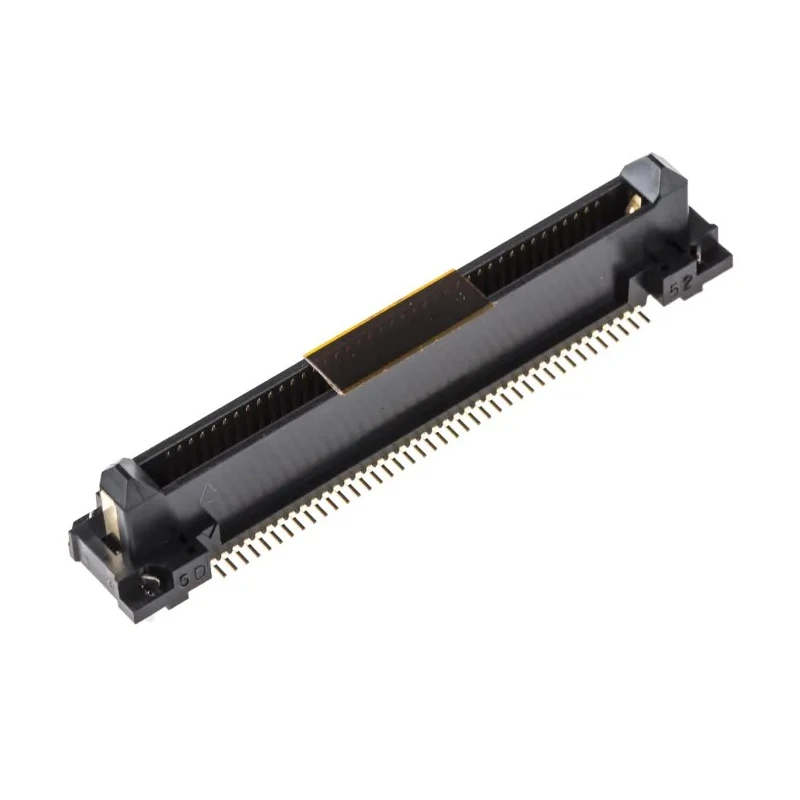

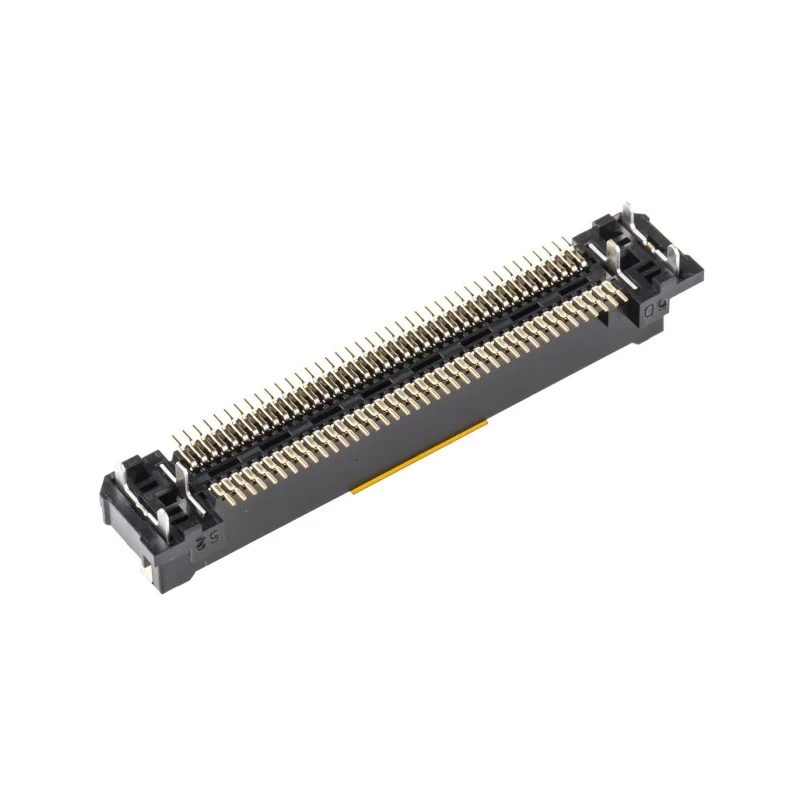

Hirose FX18-80P-0.8SV is a high-performance PCB header from the FunctionMAX FX18 Series featuring 80 contacts with a precise 0.8 mm pitch arranged in 2 rows with a straight surface mount configuration and shrouded housing. It is designed for board-to-board connections requiring high-speed transmission capabilities up to 10+ Gbit/s, supporting coplanar, vertical, and stacking mating styles, suitable for advanced industrial and commercial electronic assemblies.

This connector incorporates multifunctional contacts including ground contacts that reduce cross talk by being adjacent to differential pairs, power supply contacts capable of handling 3A per pin for efficient power distribution, and 3-step sequential contacts for grounding and detection functions. The phosphor bronze contact material ensures resilience and conductivity, enhanced by gold plating for corrosion resistance.

The shrouded design offers mechanical protection and precise mating guidance, complemented by six through-hole pins that aid PCB retention and resistance to mechanical wrenching forces. The surface mount solder termination facilitates secure installation on the PCB.

Operating reliably over a broad temperature range from -55°C to 85°C, the FX18-80P-0.8SV PCB header is ideal for applications in medical equipment, industrial controllers, servers, smart meters, base station transceivers, PLCs, and other critical industrial and commercial electronic systems.

Manufactured in Malaysia, this connector upholds high quality standards within the FunctionMAX brand line known for designing connectors that meet evolving needs for high transmission rates and robust performance in diverse environments.

High-speed transmission capable of 10+ Gbit/s ensuring fast data transfer. Suitable for coplanar, vertical, and parallel board-to-board mating styles. Advanced multifunctional contacts including ground, power supply, and 3-step sequential contacts.

Power supply contacts support up to 3A per pin enabling 12A total usage. Phosphor bronze contacts plated with gold for enhanced conductivity and durability. Shrouded design improves protection and precise mating alignment.

Surface mount type with solder termination ensuring secure installation. Wide operating temperature range from -55°C to 85°C. Designed for use in demanding industrial, medical, and server applications. Manufactured in Malaysia ensuring quality and compliance.
