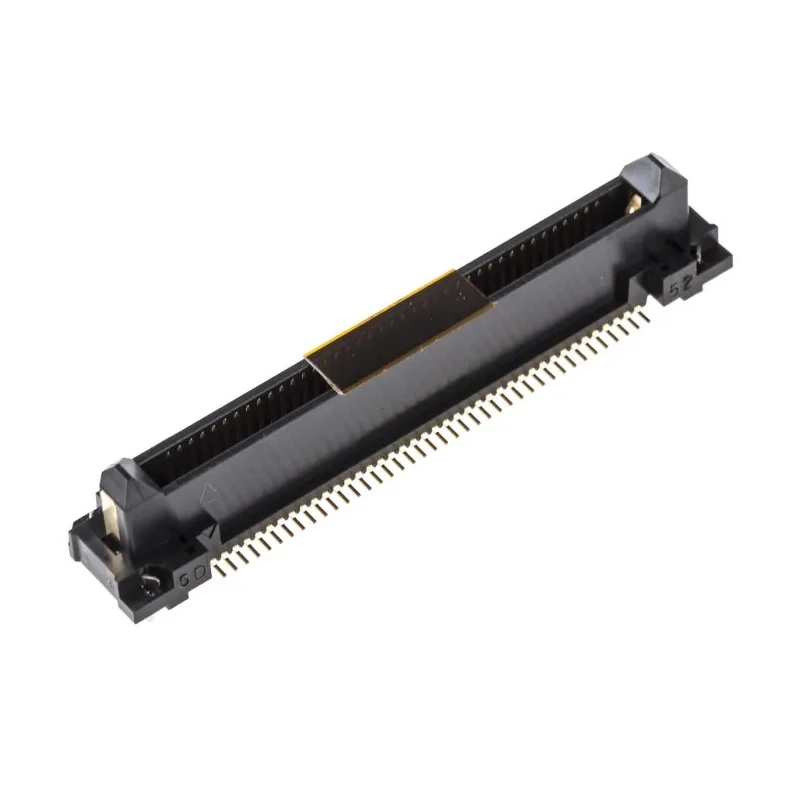

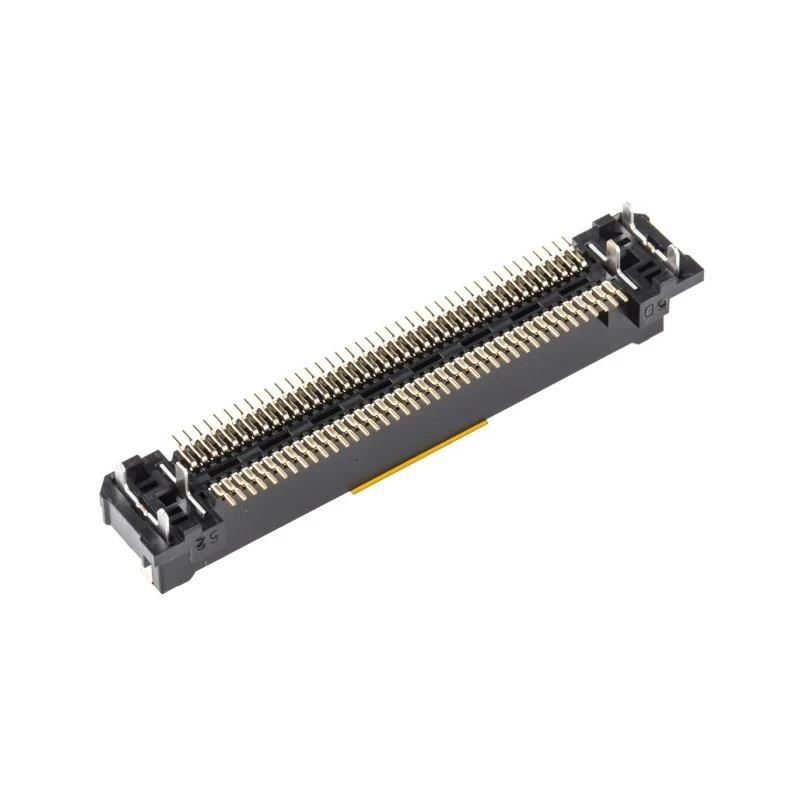

Hirose FunctionMAX FX18 Series 0.8 mm Pitch 80 Contact 2 Row Straight Surface PCB Header Shrouded
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 3mA |
| Model | FX18 |
| Mount Type | Surface |
| Housing Material | Polyamide Resin |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- High-speed board to board connector with 0.8 mm pitch for precise alignment.
- 80 contact pins arranged in 2 rows for reliable electrical connection.
- Shrouded housing made from polyamide resin for robust protection.
- Gold-plated phosphor bronze contacts to ensure low resistance and corrosion resistance.
- Supports current up to 3 mA and voltage rating up to 100 V.
- Operates reliably between -55°C and 85°C to withstand harsh environments.
- Surface mount type with solder termination for secure PCB mounting.
- Designed for high-speed transmission up to 10 Gbit/s suitable for PCI Express 2.0.
Product Description
Hirose FX18-80P-0.8SV is a FunctionMAX FX18 Series Straight Surface PCB Header designed for high-speed board to board connectivity with 80 contacts at 0.8 mm pitch and 2-row straight configuration. The connector features a shrouded polyamide resin housing protecting the high quality gold-plated phosphor bronze male contacts. It supports signal currents up to 3 mA and operates safely within temperature ranges of -55°C to 85°C, suitable for demanding industrial and electronic applications.
This PCB header ensures high-speed transmission capability exceeding 10 Gbit/s, fully compatible with PCI Express Version 2.0 standards. It includes advanced multifunctional contacts, comprising ground, power supply, and three-step sequential contacts, to reduce crosstalk and optimize signal quality. The power contacts allow up to 3A per pin, relieving signal pins and promoting space-saving designs.
The robust surface mount termination type with solder connections enhances durability, while six through-hole pins improve PCB retention and resistance to mechanical wrenching forces. Large mating guides facilitate secure and accurate coupling with mating receptacles. The connector is ideal for use in medical equipment, industrial controllers, motors, servers, measurement devices, smart meters, base station transceivers, and programmable logic controllers (PLCs).
FunctionMAX brand connectors are engineered for advanced industrial electronics requiring high performance, noise resistance, and functionality in diverse environments. The FX18 series combines high-speed data transmission with multifunctional contact features, meeting modern tech demands efficiently.
High-speed transmission of 10+ Gbit/s. Suitable for coplanar, vertical, and parallel board-to-board mating configurations. Advanced multifunctional contacts for ground, power, and detection. Through-hole pins enhance mechanical retention strength on PCBs.
Large mating guides for precise connector alignment. Polyamide resin housing with gold-plated phosphor bronze contacts. Supports 3 mA current and 100 V voltage rating. Operates in temperature range from -55°C to 85°C. Surface mount solder termination ensures stable PCB connection.
Compatible with PCI Express Ver. 2.0 standards. Explore high-quality PCB Headers from the Hirose FunctionMAX FX18 series to meet your industrial and electronic connectivity requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 100 V.
This model operates reliably between -55°C and 85°C, making it suitable for harsh environments.
It has 80 contact pins arranged in 2 rows.
The connector features a surface mount termination type with solder connections for secure PCB mounting.
The housing is made from polyamide resin, and the contacts are gold-plated phosphor bronze.
The pitch size of the contacts is 0.8 mm.
This model supports a signal current of up to 3 mA per pin.
Yes, it is fully compatible with PCI Express Version 2.0 standards.
The FX18 series utilizes a board-to-board connector system.
The connector includes six through-hole pins that enhance PCB retention and resistance to mechanical wrenching forces.
It supports high-speed transmission exceeding 10 Gbit/s.
The connector is manufactured in Malaysia.
