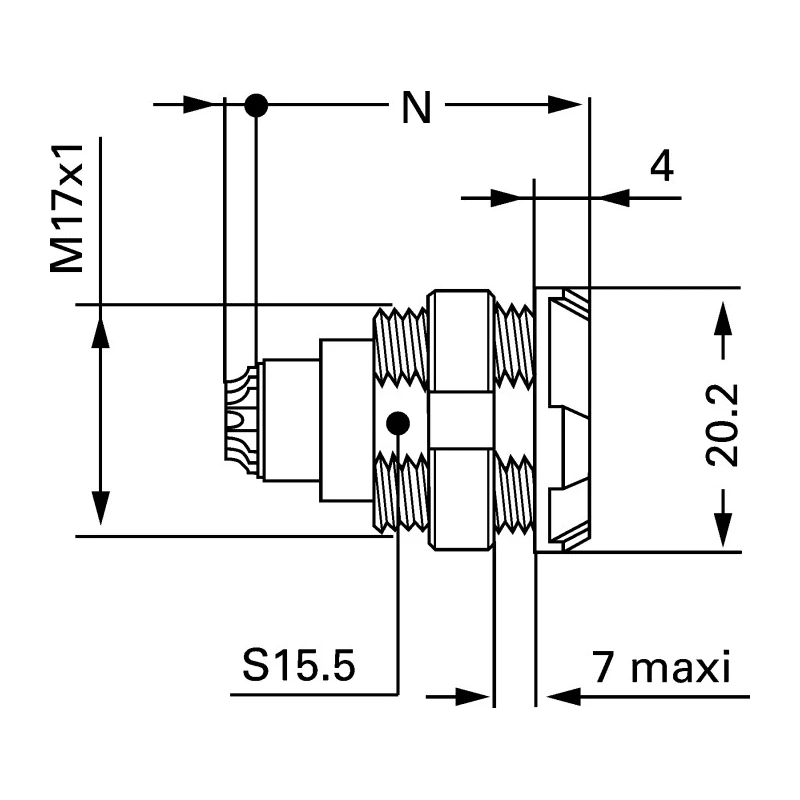

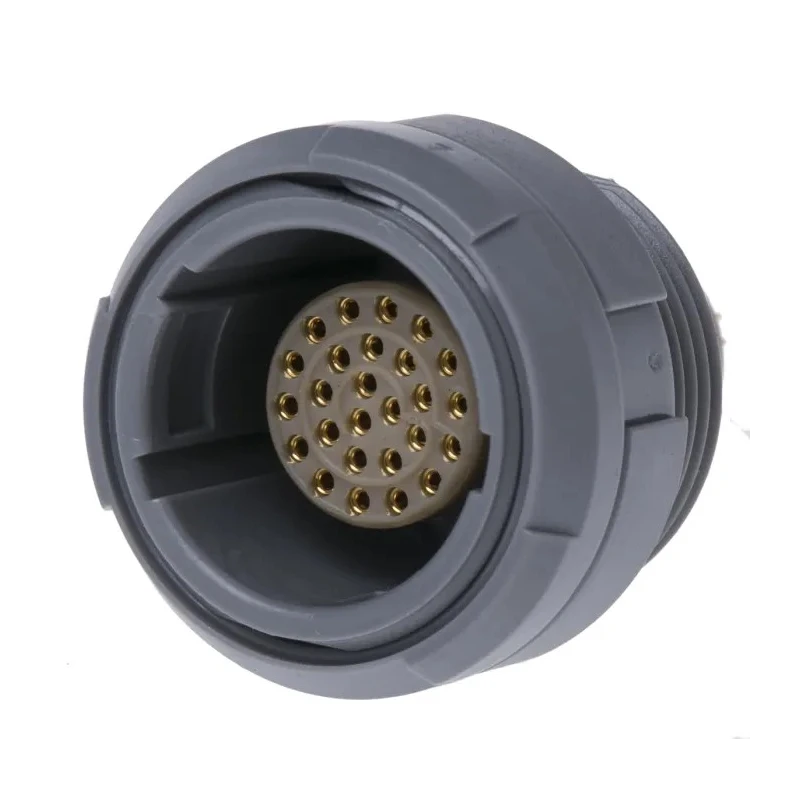

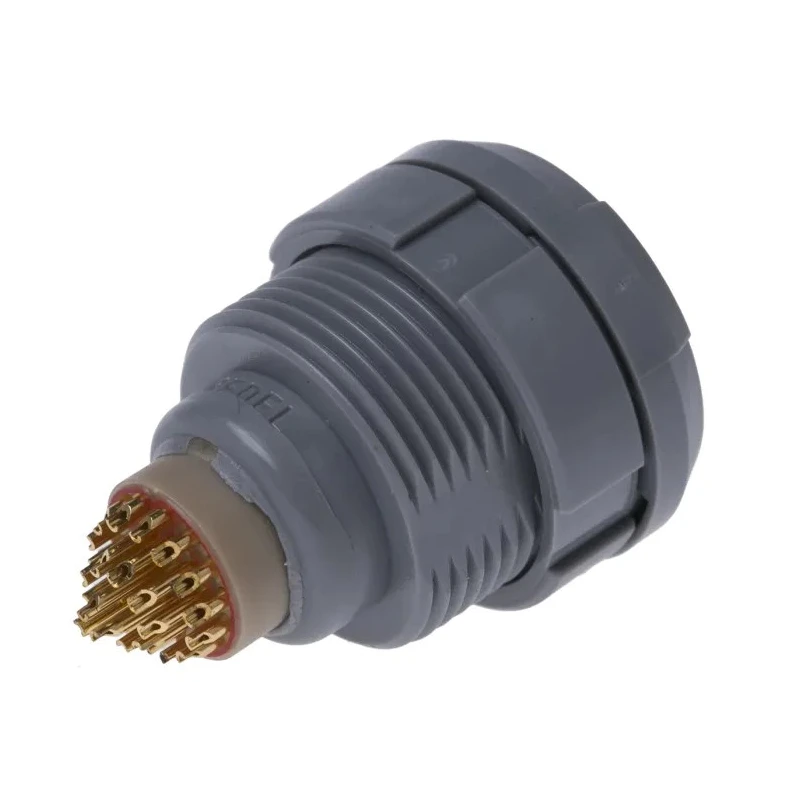

LEMO Circular Connector, 26 Contacts, Panel Mount, M17 Connector, Socket, Female, IP50 Protection, Redel P CKB.M26.GL.LG
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 350, 450V |
| Brand | LEMO |
| Orientation | Straight |
| Current | 2A |
| Model | CKB.M26.GL.LG |
| IP Rating | IP50 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Redel P |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -50°C |
| Pole Format | 26 |
| Contact Plating | Gold over Copper, Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Shell Size | 2P |
| Mating Type | Keyed |
| Connector Size | M17 |
| Plug/Socket | Socket |
Key Features
- This M17 size connector supports 2A current with 350 to 450V voltage rating.
- It features a keyed mating type to ensure proper connection and a straight orientation for easy installation.
- The connector has a durable polymer housing certified with UL94V-0 flammability rating.
- Gold plated copper-nickel contacts guarantee reliable conductivity and at least 1000 mating cycles.
- Designed for use in industrial, electronic, and power connector applications requiring robust and secure cabling.
- Operating temperature ranges from -50°C to 150°C, ensuring performance in harsh environments.
- Termination is by solder with a socket female contact gender configuration.
Product Description
LEMO CKB.M26.GL.LG is a premium circular connector designed for panel mount installation with 26 contacts in the M17 size class. It is a socket type connector with female contacts, rated for currents up to 2A and voltages between 350 and 450V, suitable for demanding industrial and electronic power connection needs.
The connector is part of the Redel P series, offering quality and durability with LEMO's proven push-pull self-latching mechanism that prevents accidental disconnections. Its housing is made from rugged polysulphone polymer material, UL certified with a flammability rating of UL94V-0, providing excellent mechanical and safety properties. The redel series is suitable for sterilisation by gas or steam up to 20 cycles, making it versatile in medical or laboratory environments.
Gold plating over copper and nickel contacts assures stable electrical performance and enduring contact life exceeding 1000 mating cycles. With a keyed mating design and straight orientation, this connector minimizes installation errors while ensuring secure electrical contact. The termination method uses solder tails, compatible with cable diameters from 4 mm to 5.2 mm, supporting flexible wiring options.
Operating temperature tolerance from -50°C up to 150°C enables usage in extreme environments, making this connector highly reliable for industrial automation, control systems, telecommunications, instrumentation, and power supply applications.
The product is manufactured in Switzerland, embodying high European standards in connector technology and materials. This LEMO circular connector is ideal for industrial circular connector applications requiring secure, high-quality signal or power connections.
The panel mount configuration simplifies integration into instrument panels and equipment chassis. IP50 ingress protection guards against dust penetration and mechanical contact, suitable for many industrial environments.
With 26 poles in a compact M17 shell size, it supports complex wiring needs without excessive bulk. The LEMO Redel P series connects reliably under vibration and mechanical stress, essential for manufacturing and automation sectors.
Browse more Industrial Circular Connectors from LEMO and other leading brands in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 350 to 450V.
It supports a maximum current of 2A.
The operating temperature ranges from -50°C to 150°C, allowing it to function in extreme environments.
The termination method for this connector is solder, compatible with cable diameters from 4 mm to 5.2 mm.
This connector features 26 contacts.
It has an IP50 ingress protection rating, which guards against dust penetration and mechanical contact.
The housing is made from a polymer material, and the contacts are gold plated over copper and nickel.
The connector features a straight orientation for easy installation.
This connector is manufactured in Switzerland.
It is part of the Redel P series, known for its durability and reliability.
This model utilizes a keyed mating type to ensure proper connection and minimize installation errors.
It is designed for use in industrial, electronic, and power connector applications that require secure cabling.
