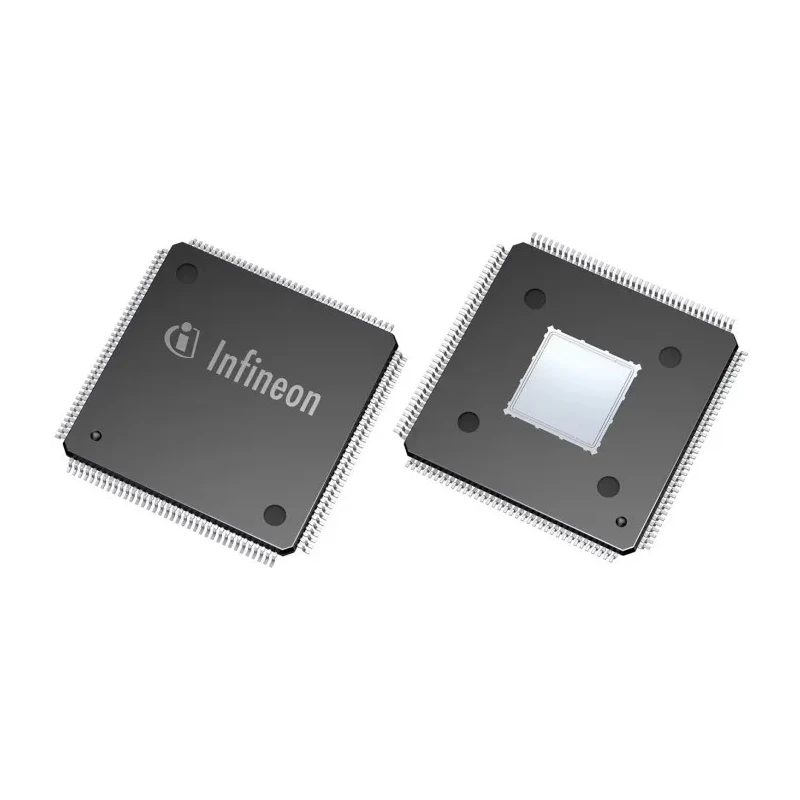

Infineon 32 bit ARM Cortex M4 Microcontroller XMC4500F144F1024ACXQMA1 120 MHz 1.024MB FLASH 144-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.4mm |
| Length | 20mm |
| Model | XMC4500F144F1024ACXQMA1 |
| Width | 20mm |
| Mount Type | Surface |
| Series | XMC4000 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB functionality facilitates straightforward connectivity |
| Ram size | 160kB |
| Pin Count | 144 |
| Maximum Supply Voltage | 3.3V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.3V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 1.024MB |
| Maximum Clock Frequency | 120MHz |
| Number of Programmable I/Os | 91 |
| Number of Timers | 26 |
| Instruction Set Architecture | DSP, MAC |
| ADCs | 8 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- High-performance ARM Cortex M4 core operating at 120 MHz.
- 1.024 MB flash memory enables extensive programming flexibility.
- 32-bit data bus width supporting advanced processing.
- Operates over wide industrial temperature range from -40°C to 85°C.
- 144-pin LQFP surface-mount package measuring 20mm x 20mm x 1.4mm.
- Includes 160 kB RAM for efficient data handling.
- Equipped with eight 12-bit ADCs and two 12-bit DACs for signal processing.
- Supports multiple CAN channels and integrated USB connectivity.
Product Description
Infineon XMC4500F144F1024ACXQMA1 is a 32 bit ARM Cortex M4 microcontroller from the XMC4000 series designed for demanding industrial environments. Operating at a maximum frequency of 120 MHz, it features 1.024 MB of FLASH program memory and 160 kB of RAM, ensuring robust performance for complex applications.
The microcontroller is housed in a 144-pin LQFP surface mount package with compact dimensions of 20mm by 20mm and a height of 1.4mm, enabling space-efficient PCB designs. It supports a wide operating temperature range from -40°C to 85°C, suitable for harsh industrial conditions.
Equipped with eight 12-bit ADCs and two 12-bit DACs, it offers precise analog-to-digital and digital-to-analog conversion capabilities, vital for signal processing tasks. The device integrates multiple communication interfaces including up to three CAN channels and USB functionality for flexible industrial connectivity.
Additional technical features include 26 timers, 91 programmable input/output pins, and a DSP, MAC instruction set architecture enhancing processing speed and control efficiency. The microcontroller’s power dissipation is limited to 1 W, promoting energy-efficient operation.
This microcontroller is ideal for applications including complex motor control systems, industrial automation, power conversion, and precise sensing or control solutions across diverse devices. Its integrated peripherals and robust design facilitate reliable and efficient performance in industrial, manufacturing, and automation domains.
High-performance ARM Cortex M4 core operating at 120 MHz. 1.024 MB flash memory enables extensive programming flexibility. 32-bit data bus width supporting advanced processing. Operates over wide industrial temperature range from -40°C to 85°C.
144-pin LQFP surface-mount package measuring 20mm x 20mm x 1.4mm. Includes 160 kB RAM for efficient data handling. Equipped with eight 12-bit ADCs and two 12-bit DACs for signal processing. Supports multiple CAN channels and integrated USB connectivity.
Low power dissipation capped at 1 W for energy efficiency. Extensive 26 timers and 91 programmable I/Os for versatile control applications. Explore more Microcontrollers and semiconductor solutions at EnvMart for advanced industrial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this microcontroller is 120 MHz.
It features a program memory size of 1.024 MB, allowing for extensive programming flexibility.
The XMC4500F144F1024ACXQMA1 operates over a wide temperature range from -40°C to 85°C, suitable for industrial environments.
This model is equipped with eight 12-bit ADCs and two 12-bit DACs for signal processing tasks.
It comes in a 144-pin LQFP (Low-Profile Quad Flat Package) surface-mount package.
The minimum supply voltage is 1.3V and the maximum supply voltage is 3.3V.
This microcontroller features 91 programmable input/output pins for versatile control applications.
It supports multiple CAN channels and includes USB functionality for straightforward connectivity.
The package dimensions are 20mm x 20mm with a height of 1.4mm.
The XMC4500F144F1024ACXQMA1 includes a total of 26 timers.
It includes 160 kB of RAM for efficient data handling.
This model utilizes a DSP and MAC instruction set architecture to enhance processing speed and control efficiency.
