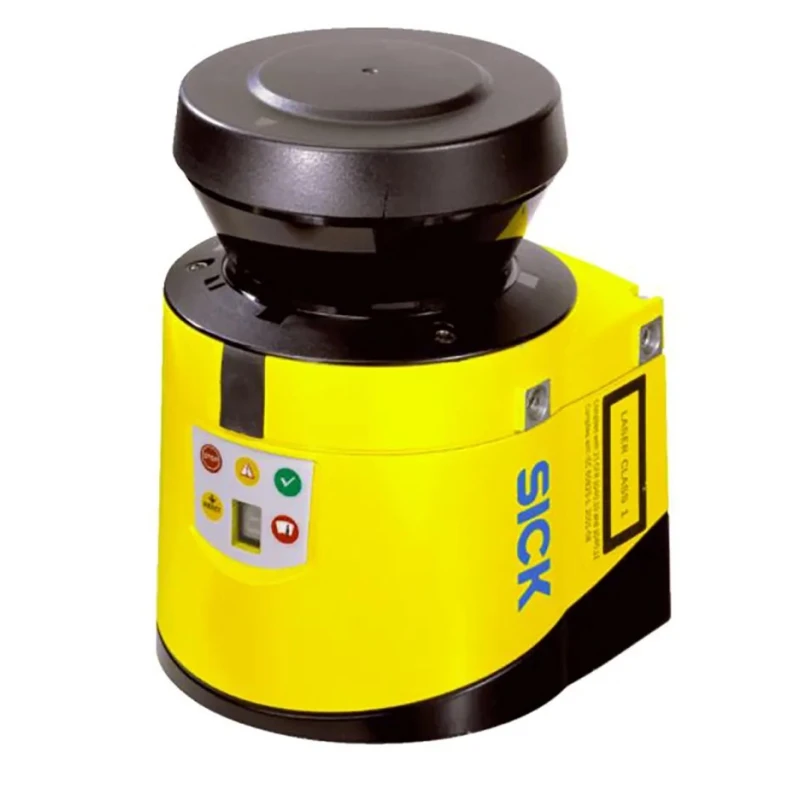

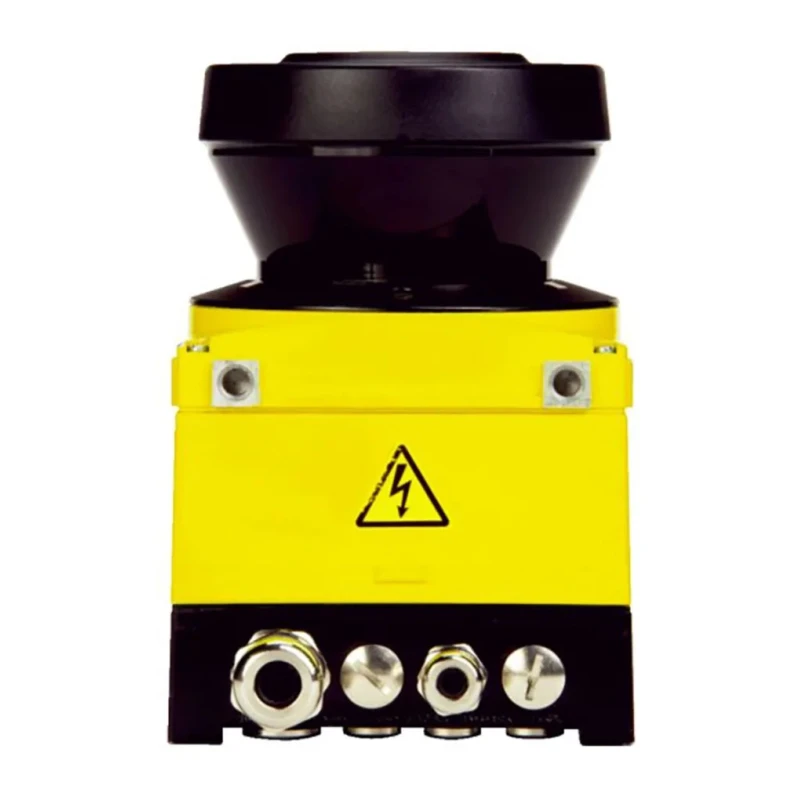

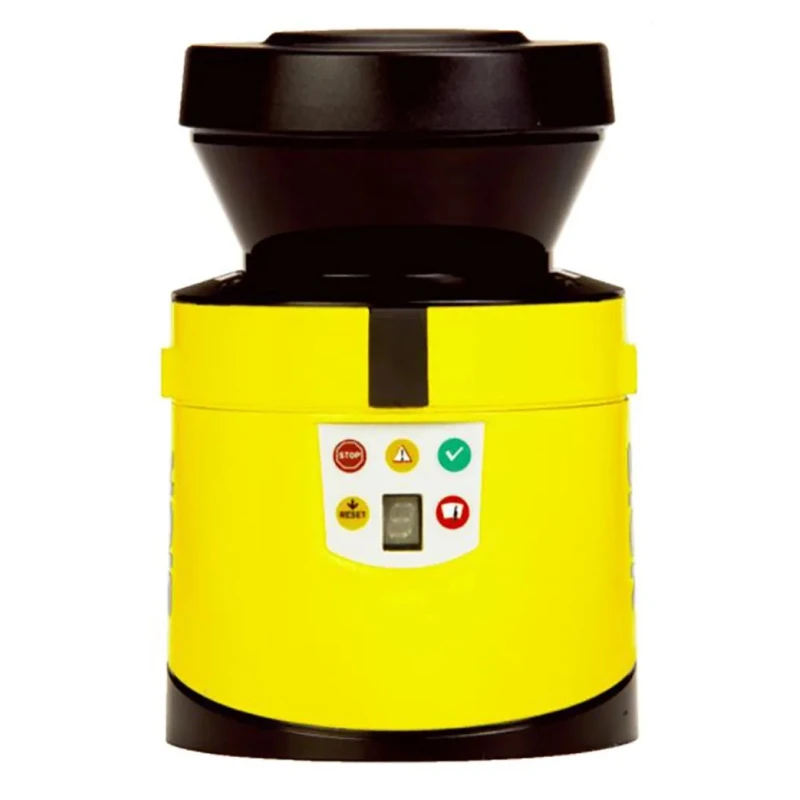

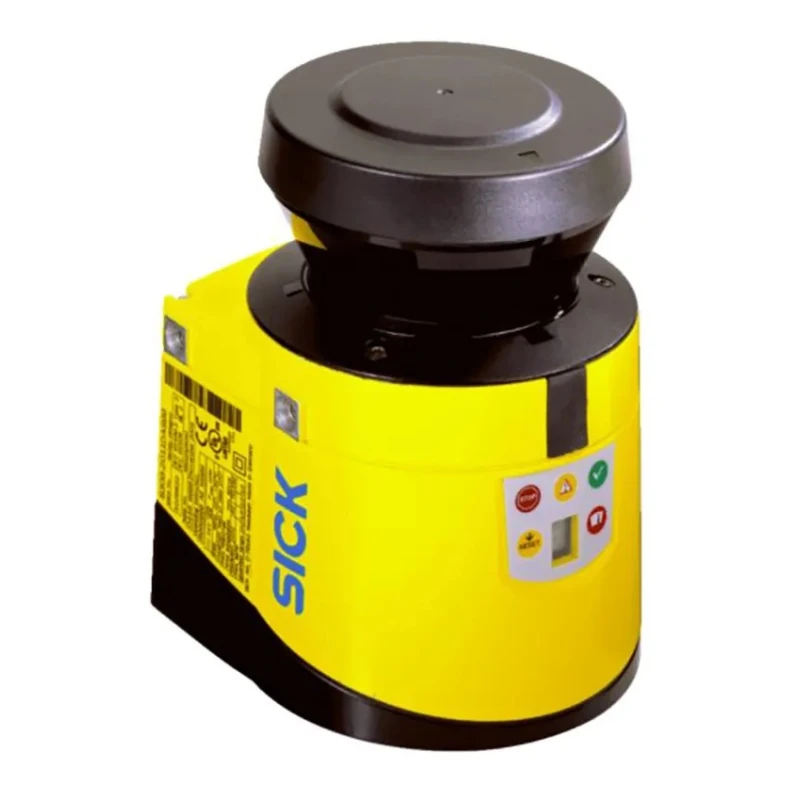

SICK S300 Advanced Series Laser Scanner Scanner, 30 m Max Range S30B-3011CA S30B-3011CA / 1056428

The SICK S30B-3011CA is an advanced series laser scanner scanner offering a maximum scanning distance of 30 meters tailored for industrial safety and automation applications. Manufactured in Germany, it delivers reliable and precise light detection over a broad area with a 270° scanning window.

This device is equipped with programmable protection and warning fields allowing customized setup suitable for various environments. It features a short response time of 80 milliseconds helping to ensure fast detection and response when safety hazards are identified.

With two simultaneously monitored protection fields and multiple safety outputs including two OSSD safety outputs, it guarantees uninterrupted and reliable safety monitoring. The IP65 rated enclosure protects the scanner from dust and moisture, making it suitable for various industrial conditions.

The scanner has compact dimensions of 102 mm in length, 152 mm in height, and 106 mm in width, facilitating easy installation in tight spaces. Connectivity is enabled via an 8-Pin M12 male terminal. It operates at a peak wavelength of 905 nm, optimized for accurate light detection in diverse environments.

Typical industrial use cases include robot cells, tube bending machines, automotive manufacturing, collision avoidance for Automated Guided Vehicles (AGVs), area protection in factories, and replacing traditional safety mats with advanced scanning technology.

Supports simultaneous monitoring of two protection fields for enhanced safety. Features a 270° scanning window for broad area coverage. Offers short response time of 80 milliseconds for quick detection. Programmable warning and protection fields via supplied software.

Includes two OSSD safety outputs, one warning output, and diagnostic output. IP65 rated housing ensures protection against dust and water. Suitable for applications in robot cells, automotive industry, and collision avoidance.

Compact dimensions of 102 mm length, 152 mm height, and 106 mm width. Operates at a peak wavelength of 905 nm for precise light detection. Equipped with 8-Pin M12 male terminal for easy connection. Explore the SICK range of advanced optical scanners and sensors on EnvMart to enhance your automation and safety solutions.
