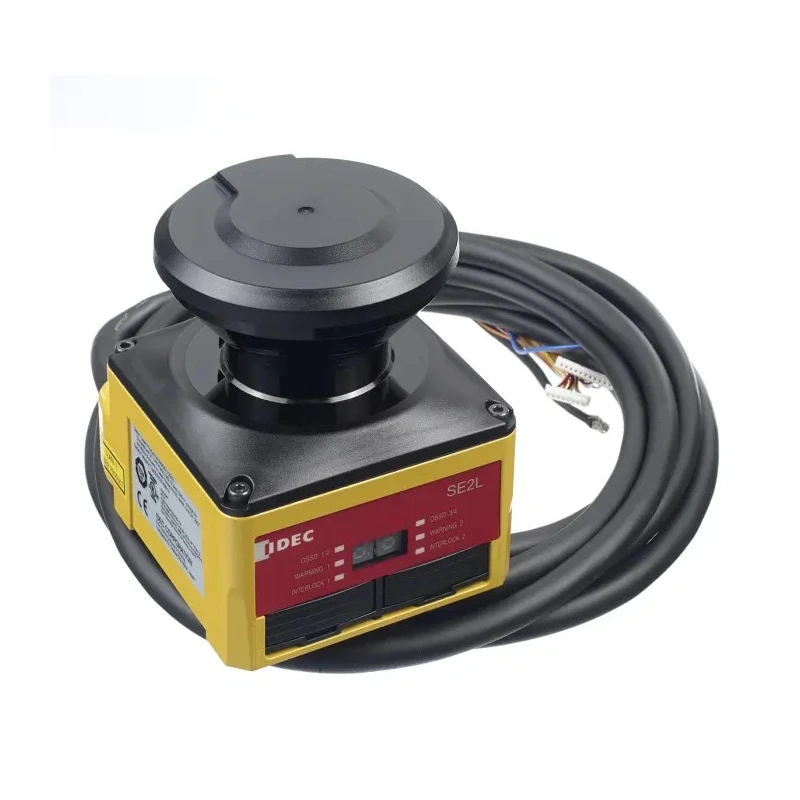

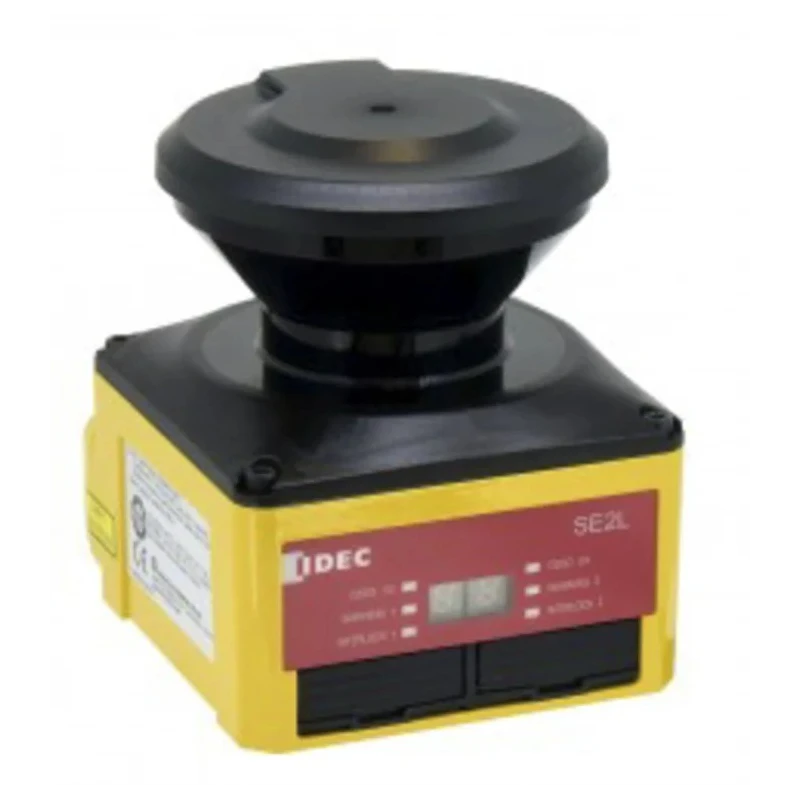

Idec SE2L Series Laser Scanner Downlights & Display Lighting

Idec SE2L-H05LP laser scanner downlights and display lighting are innovative sensors designed for high-performance safety applications in industrial and automation environments. This compact laser scanner is the smallest in the world for its class, providing robust safety detection capabilities.

The device features a wide 270 degree sensing angle with a 5m safety protection zone and a 20m warning zone, making it suitable for guarding critical areas in manufacturing, robotics, and automated guided vehicle operations. Configurable Master and Slave modes allow up to four SE2L units to be connected for complete perimeter detection.

Dual protection modes enable monitoring two separate zones simultaneously, reducing the need for multiple scanners and light curtains. The SE2L supports up to 32 customizable protection patterns to adapt to diverse safety requirements. Advanced functions include the ability to monitor external device monitoring (EDM) and a MicroSD slot for loading configuration parameters.

The compact size of 80mm length and 80mm width fits easily into restricted spaces while ensuring maximum coverage. Manufactured in Japan, this laser scanner guarantees quality and reliability expected in demanding industrial applications.

270 degree sensing angle for comprehensive safety coverage. 5m safety protection zone combined with 20m warning zone. Supports linking up to four units using Master and Slave configuration. Dual protection mode for two robot safety zones.

Customizable protection patterns with maximum 32 pattern support. Equipped with EDM safety functions and MicroSD card slot. Compact dimensions of 80mm x 80mm for flexible installation.

This product is ideal for industrial automation, robotics safety, manufacturing plants, and material handling systems requiring reliable Light Detection and Ranging sensors. Browse further in EnvMart's sensor and automation categories for related safety solutions.
