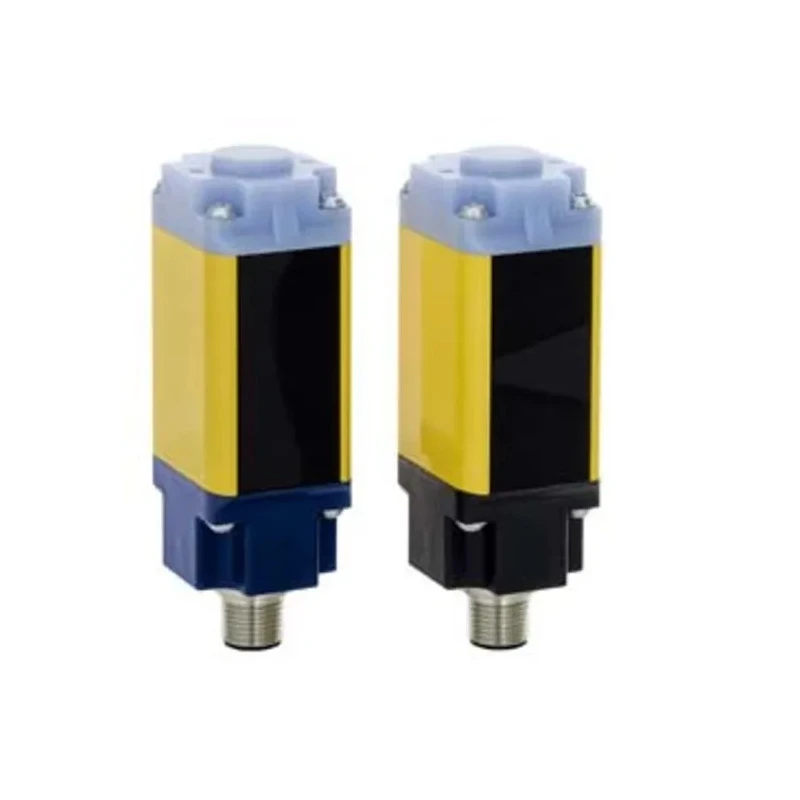

Schmersal Light Beam Sender 1 Beam, 15 m Max Range, M12 Plug, Type 4 Safety, PL e, Compact Aluminium Enclosure SLB440

Free Delivery in India | Lowest Global Shipping Charges

Schmersal Light Beam Sender 1 Beam, 15 m Max Range, M12 Plug, Type 4 Safety, PL e, Compact Aluminium Enclosure SLB440

Name: Schmersal Light Beam Sender 1 Beam, 15 m Max Range, M12 Plug, Type 4 Safety, PL e, Compact Aluminium Enclosure SLB440
Brand: SCHMERSAL
SKU: 213748
Price: 690.06 USD
Availability: InStock



Category Light Detection and Ranging Brand SCHMERSAL Condition New

Specifications

Country of Origin	Germany
Brand	Schmersal
Height	131mm
Length	33mm
Model	SLB440
Number of Beams	1
Width	27.8mm
Series	SLB440
Terminal type	M12 Plug
Component Type	Sender
Standards/Approvals	PL e
Peak Wavelength	880nm
Safety Type	Type 4
Minimum Scanning Distance	300mm
Maximum Scanning Distance	15m
Maximum Response Time	22ms

Key Features

The device features a compact aluminium enclosure rated IP67 for dust and water protection.
It operates reliably in temperatures from -30°C to +50°C.
Equipped with an M12 4-pin plug for straightforward connection.
The sender uses a peak wavelength of 880nm to detect obstructions.
Has a safety rating of Type 4 with PL e standards compliance.
Its fast maximum response time is 22 milliseconds, enhancing hazard detection.
Lightweight at 240g, reducing mechanical strain at the installation site.
Compact dimensions of 33 mm length, 27.8 mm width, and 131 mm height enable installation in limited space.

Product Description

Schmersal SLB440 Light Beam Sender is a precision sensor device designed to enhance workplace safety in industrial settings. With a maximum scanning distance of 15 meters and a minimum of 300 mm, this sender unit effectively works with a receiver to monitor safety light curtains by detecting beam interruptions.

Featuring a robust aluminium enclosure with IP67 rating, it ensures durability against dust ingress and temporary immersion in water, making it suitable for harsh environments. The device operates over a wide temperature range from -30°C to +50°C, suitable for varied industrial climates.

The SLB440 sender integrates an M12 4-pin plug for reliable and easy connectivity. The compact form factor measuring 33 mm in length, 27.8 mm in width, and 131 mm in height fits installations in limited spaces without compromising sensor performance.

This sensor meets rigorous Type 4 safety standards and achieves Performance Level (PL) e, providing high levels of reliability to mitigate machinery hazards. Its peak wavelength of 880 nm ensures efficient light beam transmission and detection. The fast maximum response time of 22 ms facilitates almost instantaneous machine shutdown upon detection of safety interruptions, reducing risk of injuries.

Compact and corrosion-resistant aluminium housing with IP67 rating. Operates effectively in demanding environments with a wide temperature tolerance. Fast response time from 7 ms to 22 ms for instant hazard reaction. Lightweight design limits mechanical strain on mounting structures.

Standard M12 plug simplifies installation and maintenance. Designed for use in laboratories, automation, and pharmaceutical manufacturing.

Manufactured in Germany, this Schmersal SLB440 unit provides dependable safety control when integrated into automated systems. Explore related Schmersal sensor products in the Light Detection and Ranging category on EnvMart for comprehensive industrial safety solutions.
