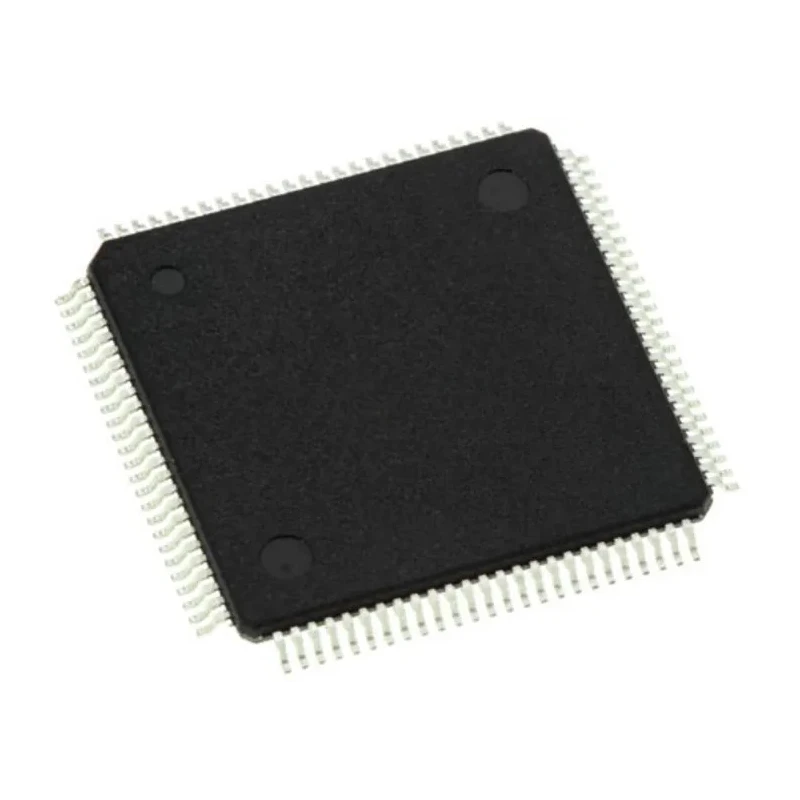

Infineon 16 bit C166 XE166 Microcontroller 80 MHz 768kB FLASH 100-Pin LQFP XE164F96F80LACFXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 16 bit C166 XE166 Microcontroller 80 MHz 768kB FLASH 100-Pin LQFP XE164F96F80LACFXUMA1

Name: Infineon 16 bit C166 XE166 Microcontroller 80 MHz 768kB FLASH 100-Pin LQFP XE164F96F80LACFXUMA1
Brand: Infineon
SKU: 138855
Price: 17.78 USD
Availability: InStock



Category Microcontroller Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.4mm
Length	14mm
Model	XE164F96F80LACFXUMA1
Width	14mm
Mount Type	Surface Mount
Series	XE166
Maximum Operating Temperature	125°C
Package Type	LQFP
Minimum Operating Temperature	-40°C
Ram size	64kB
Pin Count	100
Maximum Supply Voltage	5.5V
Maximum Power Dissipation Pd	1W
Minimum Supply Voltage	3V
Device Core	C166
Program Memory Size	768kB
Maximum Clock Frequency	80MHz
Number of Timers	2
Instruction Set Architecture	CISC, RISC, DSP
ADCs	16 x 10 Bit
Program Memory Type	FLASH

Key Features

Operates with a maximum power dissipation of 1 watt for efficient energy use.
Supports Surface Mount technology with a 100-pin count for compact designs.
Includes 64kB RAM and 16 10-bit ADCs for versatile embedded applications.
Designed for robust operation between -40°C and 125°C operating temperatures.
Compatible with a wide supply voltage range from 3V minimum to 5.5V maximum.
Features dual timers and CISC, RISC, DSP instruction set architecture integration.
Flash memory type ensures reliable program storage and fast execution.
Compact dimensions of 14mm length, 14mm width, and 1.4mm height support space-constrained PCB layouts.

Product Description

Infineon XE164F96F80LACFXUMA1 is a 16 bit C166 family microcontroller designed for high-efficiency embedded applications. Operating at a maximum clock speed of 80 MHz, this microcontroller features 768kB of FLASH memory and 64kB RAM, making it ideal for automotive, industrial, mass storage, and communications systems.

This device supports surface mount technology with a 100-pin LQFP package, enabling high density and compact PCB implementations. It includes 16 analog-to-digital converters (ADCs) with 10-bit resolution, dual timers, and supports CISC, RISC, and DSP instruction architectures for versatile processing capabilities.

It operates reliably across a broad temperature range from -40°C to 125°C, suiting rugged environments. With power dissipation limited to 1 watt and supply voltage requirements between 3V and 5.5V, it ensures energy-efficient performance.

The microcontroller’s size is optimized with dimensions of 14 mm x 14 mm x 1.4 mm, suitable for space-constrained applications in embedded systems. Maximum clock frequency: 80 MHz. Program memory size: 768kB FLASH. RAM size: 64kB.

Analog inputs: 16 x 10 bit ADCs. Operating temperature: -40°C to 125°C. Surface mount LQFP package with 100 pins. Power dissipation: 1 watt maximum. Instruction set supports CISC, RISC, and DSP.

This microcontroller is tailored for applications requiring real-time control performance typically found in automotive and industrial applications. It offers the efficiency of 16-bit processing with a cost-effective memory footprint, making it ideal for communication devices and embedded computing.
