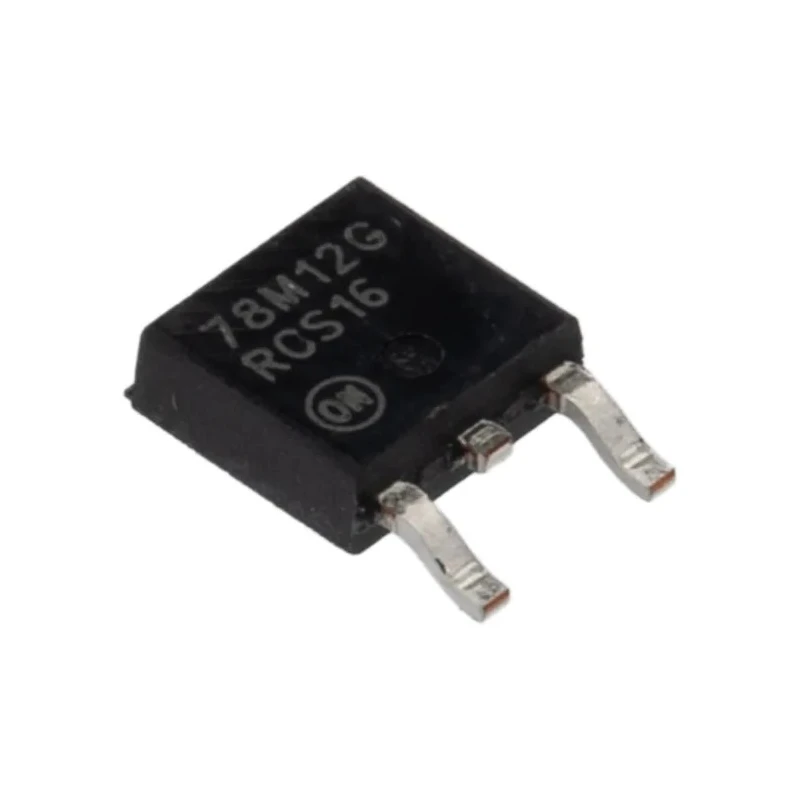

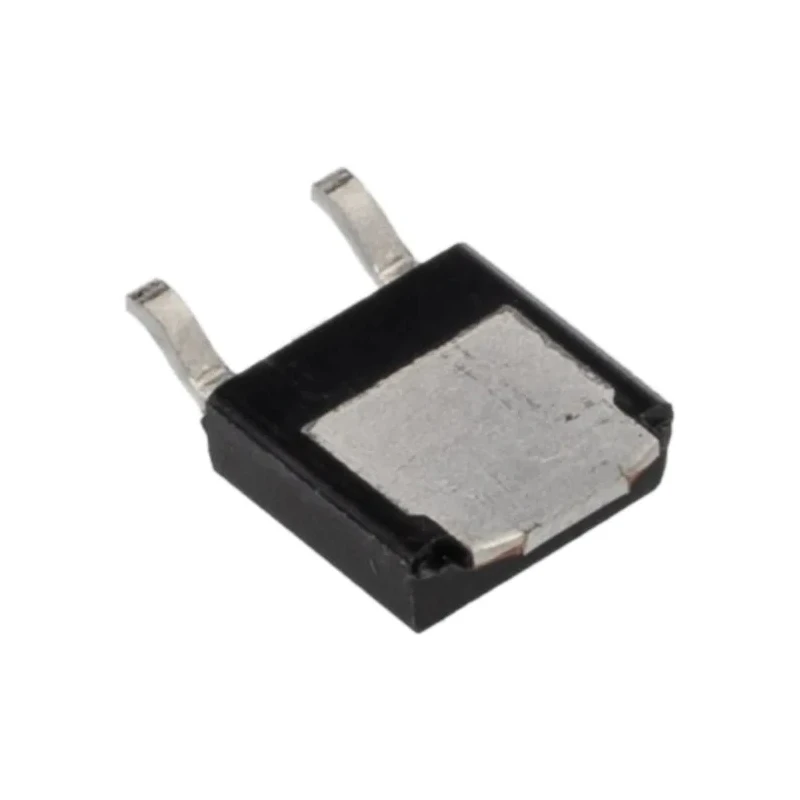

onsemi Surface Mount Positive Voltage Regulator MC78M12CDTG 35V 3-Pin MC78M12CDTG

onsemi MC78M12CDTG is a surface mount positive voltage regulator designed for reliable and efficient power management with a 3-pin configuration. It supports a maximum input voltage of 35 volts and offers a robust solution for local voltage regulation in electronic circuits.

This linear regulator incorporates internal current limiting, thermal shutdown protections, and safe operating area protections for the output transistor, enhancing durability and safety in a range of applications. It is suitable for use in automotive-grade systems, complying with the AEC-Q100 standard, ensuring high reliability under demanding conditions.

The device operates with a low quiescent current of 3.2 mA, improving power efficiency and reducing energy loss. Its compact surface mount package measures approximately 6.73 mm in length, 6.22 mm in width, and 2.38 mm in height, making it ideal for space-constrained electronic designs.

Typical applications include industrial power management, automotive electronics, and semiconductor circuits requiring positive voltage regulation with currents up to 500 mA when used in conjunction with suitable heat sinking solutions.

This device is a robust linear voltage regulator designed for local, on-card voltage regulation. Supports output current up to 500 mA with appropriate heat sinking. Features internal current limiting and thermal shutdown protections.

Operates with maximum input voltage of 35V and minimum input voltage of 14V. Complies with automotive AEC-Q100 standards for reliability. Compact surface mount design with 3 pins. Low quiescent current of 3.2 mA.

For engineers and designers working on industrial, automotive, and power management applications, this onsemi MC78M12CDTG Voltage Regulator offers reliable performance and compliance with industry standards. Explore more voltage regulation components and power management devices on EnvMart.
