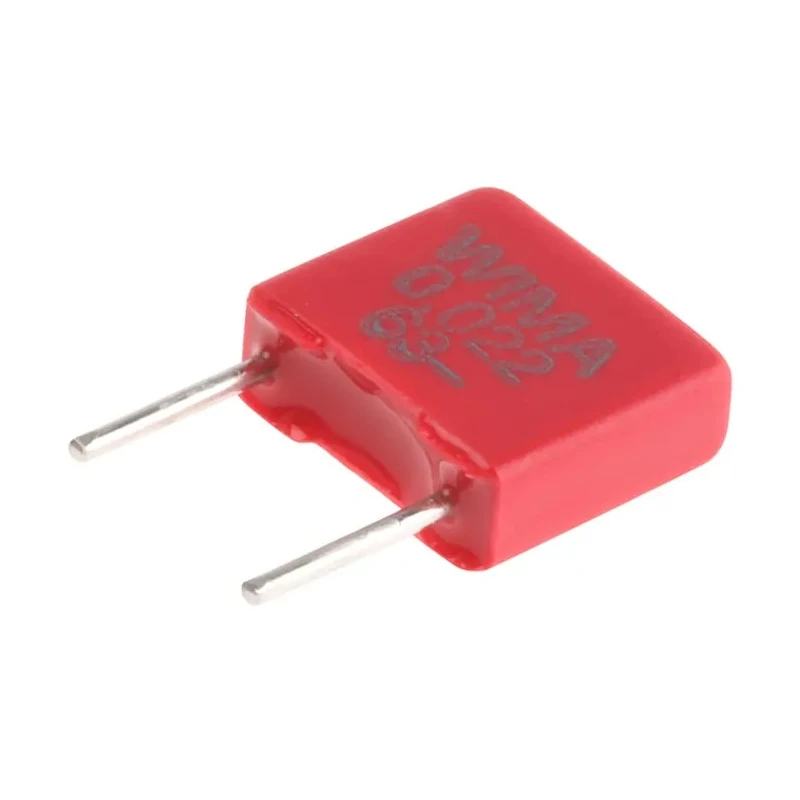

WIMA MKS2 Series Film Capacitor 22nF 40V AC 63V DC Through Hole Mount Metalized Polyester PET

WIMA MKS2 Film Capacitor model MKS2C022201A00KSSD is a metallized polyester (PET) film capacitor designed for precise and reliable electronic circuit applications. Rated at 22nF capacitance, it supports 40V AC and 63V DC operating voltages. The capacitor features through-hole mounting with a 5mm lead pitch and 0.5mm lead diameter, making it suitable for robust assembly on printed circuit boards.

Its compact size with dimensions 7.2mm (length), 6.5mm (height), and 2.5mm (width) allows easy integration in constrained spaces. The maximum operating temperature of 100°C ensures stable performance under typical thermal stresses encountered in industrial and automotive environments.

Constructed with vacuum deposited electrodes and metal contact layers laminated with plastic film, this capacitor offers self-healing properties enhancing longevity and reliability. It complies with RoHS, ISO 9001:2008, and DIN EN ISO 14001:2004 standards, reflecting strict quality and environmental management practices.

The plastic flame-retardant casing and epoxy resin sealing provide additional safety and solvent resistance. The MKS2 series capacitors are suitable for a wide range of applications including bypassing, blocking, coupling, decoupling, and timing circuits. Their AEC-Q200 qualification makes them ideal for automotive electronics as well.

Manufactured in Germany, the product is built to high-quality industrial standards, compatible with advanced circuit design requirements in electronics manufacturing, automotive, HVAC, telecommunications, and consumer electronics. The package is intended for professionals requiring reliable components for precise capacitor needs.

Constructed with metallized polyester PET film providing high reliability. Rated for 40V AC and 63V DC voltage applications. Features a 5mm lead pitch with 0.5mm lead diameter for through-hole mounting. Compact dimensions: 7.2mm length, 6.5mm height, and 2.5mm width.

Operates at a maximum temperature of 100°C for reliable performance. Meets RoHS, ISO 9001:2008, and DIN EN ISO 14001:2004 compliance standards. Self-healing capability ensures durability in demanding electrical environments.

Suitable for bypassing, blocking, coupling, decoupling, and timing in automotive and industrial applications. Flame-retardant plastic casing with epoxy resin sealing for enhanced safety. Manufactured in Germany ensuring high-quality standards.
