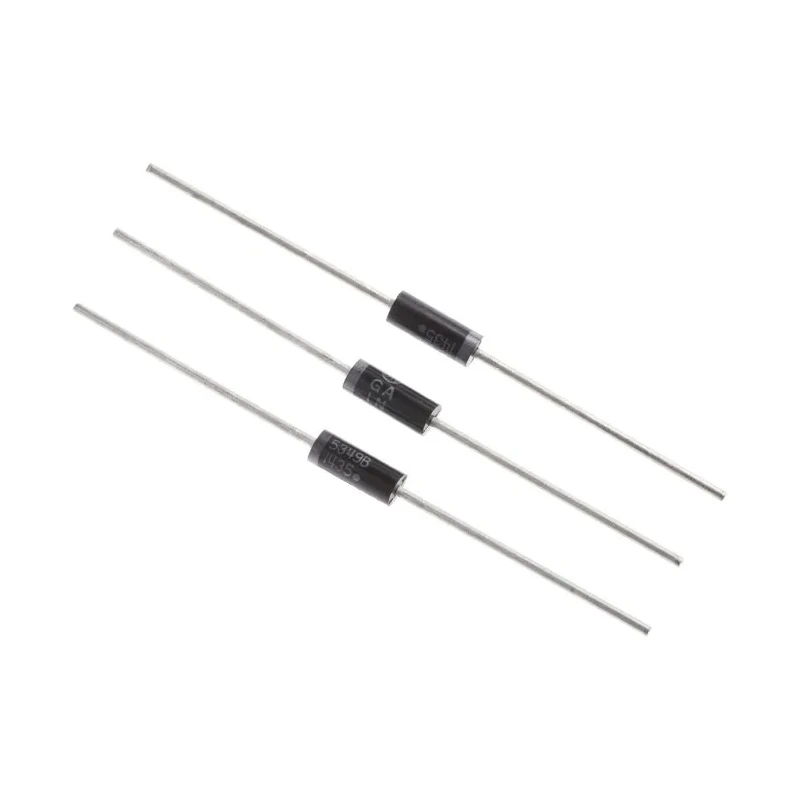

onsemi Zener Diode Voltage Regulator 12V 5W Through Hole 2-Pin DO-15 1N5349BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5349BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 100mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 12V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2.5Ω |
| onsemi 1, 12 V Zener Diode, Single 3 W 5 % Through Hole 2-Pin DO-41Brand | onsemi |
Key Features
- This diode features a nominal Zener voltage of 12V with 5% tolerance.
- Maximum power dissipation is rated at 5 Watts for robust performance.
- The device uses a single-element configuration providing stable voltage regulation.
- Its package type is DO-15 with axial leads for through-hole mounting.
- Maximum operating temperature is 200°C, supporting industrial environments.
- Test current is 100mA and maximum reverse leakage current is very low at 2μA.
- It has a maximum Zener impedance of 2.5 ohms ensuring low voltage variation.
- Suitable for industrial power management and consumer electronics applications.
Product Description
onsemi 1N5349BG is a high-quality Zener Diode voltage regulator, rated at 12V and 5 Watts, packaged in a 2-pin DO-15 axial lead through-hole configuration. Designed for industrial and consumer electronics, it provides tight voltage regulation for various power management needs.
This single-element diode offers robust operation with a 5% voltage tolerance and a maximum power dissipation of 5W. Constructed with void-free transfer-molded thermosetting plastic, it ensures durability and protection against common environmental conditions.
The diode operates reliably across a wide temperature range, from -65°C to 200°C, and features a low maximum reverse leakage current of 2μA. The maximum Zener impedance is 2.5 ohms, ensuring stable voltage output even under transient conditions.
The axial leads allow for easy through-hole mounting on printed circuit boards, ideal for industrial power management, consumer electronics, and portable device applications. This component belongs to the well-known onsemi 1N53 series, noted for its performance and reliability.
This diode features a nominal Zener voltage of 12V with 5% tolerance. Maximum power dissipation rated at 5 Watts. Single-element configuration ensures stable voltage regulation. DO-15 package with through-hole axial leads.
Wide operating temperature range from -65°C to 200°C. Low maximum reverse leakage current of 2μA. Maximum Zener impedance of 2.5 ohms. Suitable for industrial, consumer electronics, and portable devices. Durable thermosetting plastic molded package.
Choose onsemi 1N5349BG Zener Diode for reliable voltage regulation in your electronic designs. Explore the wide array of semiconductor components available at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 12V with a tolerance of 5%.
The maximum power dissipation for this model is rated at 5 Watts.
It operates reliably across a wide temperature range from -65°C to 200°C.
This diode is packaged in a DO-15 type with axial leads for through-hole mounting.
The maximum reverse leakage current is very low at 2μA.
The maximum Zener impedance is 2.5 ohms, ensuring stable voltage output.
The test current for this model is 100mA.
This diode has a single-element configuration.
The height of this diode is 3.68mm and the length is 8.89mm.
The diode is manufactured in India.
This model is suitable for industrial power management and consumer electronics applications.
It has a single diode configuration, providing stable voltage regulation.
