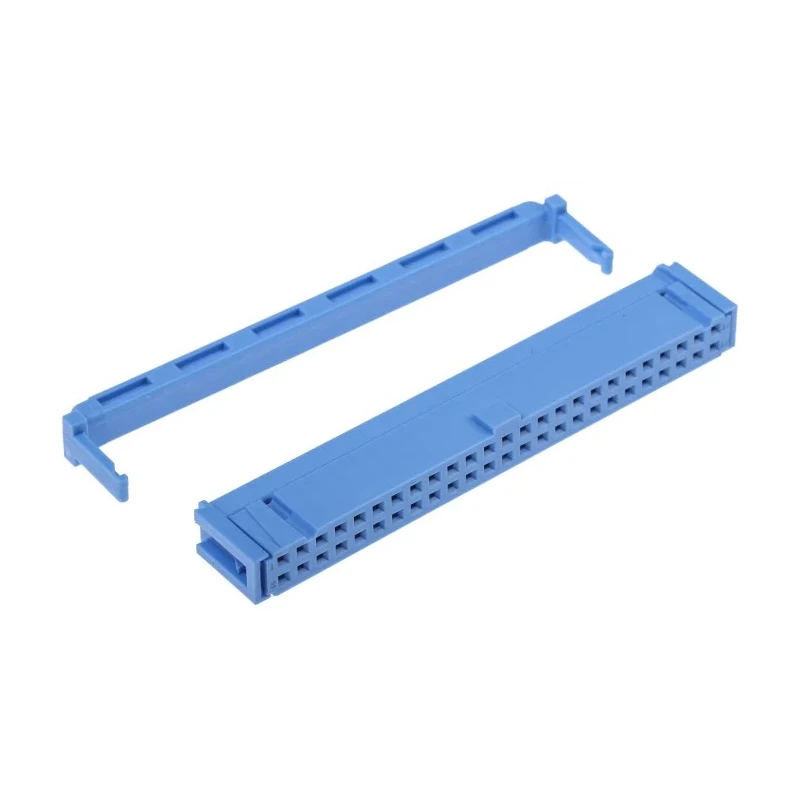

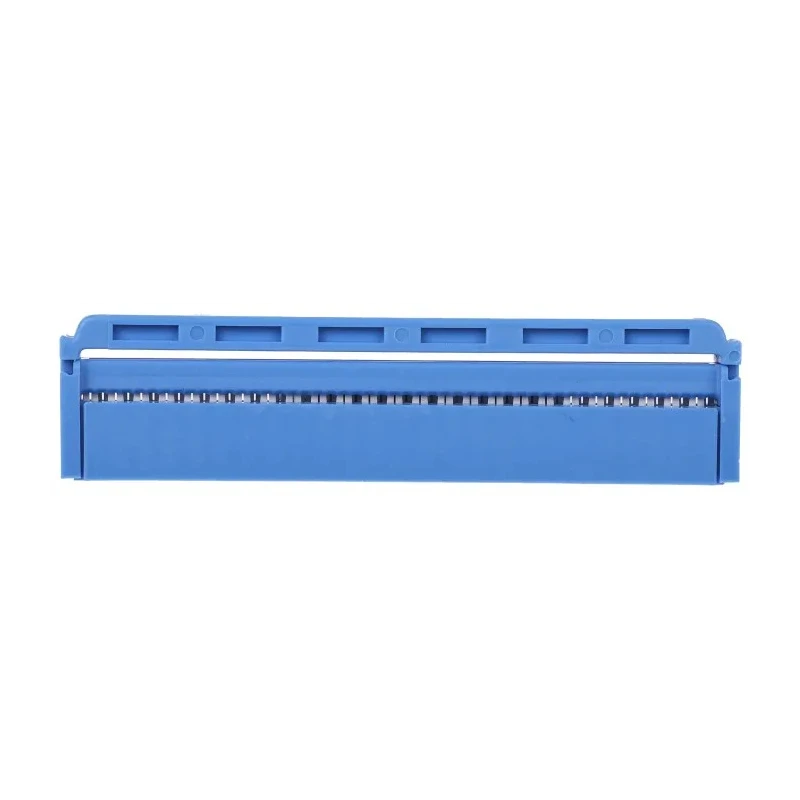

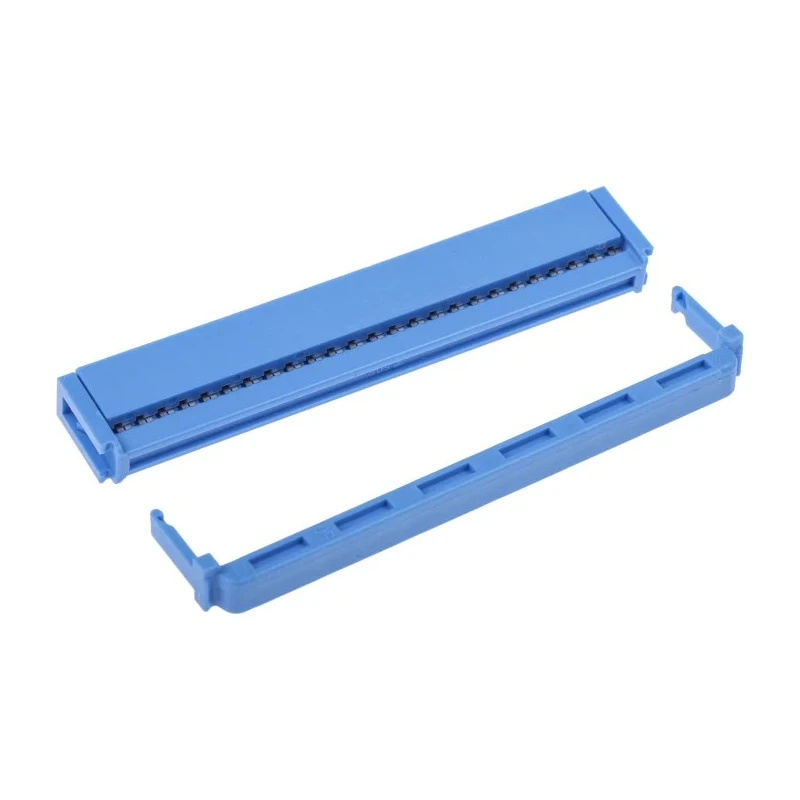

TE Connectivity 50-Way IDC Connector Female for Cable, 2 Row, 250V, 1A Current, AMP-LATCH 622 Series 1-1658527-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper |
| Series | AMP-LATCH 622 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| HARTING 50-Way IDC Connector Female for Cable, 2 RowBrand | HARTING |
Key Features
- Constructed with beryllium copper contacts for high performance.
- Gold over nickel plated contacts ensure reliable connectivity.
- Housing made of UL 94V-0 rated thermoplastic for durability and safety.
- Compatible with 26-28 AWG or stranded PVC insulated flat ribbon cables.
- Operating temperature ranges from -55°C to 125°C for robust applications.
- 2.54mm contact pitch with shrouded design to prevent accidental shorting.
- Termination by IDC (insulation displacement contact) for easy assembly.
- Part of AMP-LATCH 622 series, designed for military and center polarization applications.
Product Description
TE Connectivity 1-1658527-5 IDC Connector Female is a high-quality 50-way, 2 row right angle connector designed for cable mounting applications. It operates at 250V and supports a current of 1A, making it suitable for various industrial and electronic uses.
Featuring beryllium copper contact material with gold over nickel plating, the connector ensures excellent electrical conductivity and long-lasting performance. The housing is constructed from glass-filled thermoplastic rated UL 94V-0 for flame resistance and robust mechanical stability.
This connector uses a single slot, flat tuning fork style contact design with a 2.54mm pitch, compatible with 26-28 AWG or stranded PVC insulated ribbon cables. Its insulation displacement contact (IDC) termination type allows quick and reliable cable assembly without soldering.
Operating between -55°C and 125°C and offering a shrouded design, it provides secure connections and is ideal for demanding applications in industrial electronics, telecommunications, and instrumentation.
Contact Material: Beryllium Copper. Contact Plating: Gold over Nickel. Housing Material: Thermoplastic, UL 94V-0 rated. Contact Pitch: 2.54mm. Number of Contacts: 50. Number of Rows: 2. Maximum Operating Temperature: 125°C.
Minimum Operating Temperature: -55°C.
As part of the AMP-LATCH 622 series, this connector provides military and center polarization, enhancing cable assembly reliability for professional electronic systems. It suits applications like industrial controls, manufacturing equipment interfaces, and electronic instrumentation wiring.
Browse the wide range of electronic connectors at EnvMart to find compatible products for your specific application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this connector is 250V.
This model supports a current capacity of 1A.
It uses insulation displacement contact (IDC) termination for easy assembly without soldering.
The contact pitch is 2.54mm.
The operating temperature range for this unit is from -55°C to 125°C.
The contacts are made of beryllium copper with gold over nickel plating, and the housing is made of thermoplastic rated UL 94V-0.
This connector has a total of 50 contacts arranged in 2 rows.
Yes, it is part of the AMP-LATCH 622 series, which is designed for military and center polarization applications.
It is compatible with 26-28 AWG or stranded PVC insulated flat ribbon cables.
This connector has a right angle orientation.
The shrouded design helps prevent accidental shorting, ensuring secure connections.
This connector is manufactured in India.
