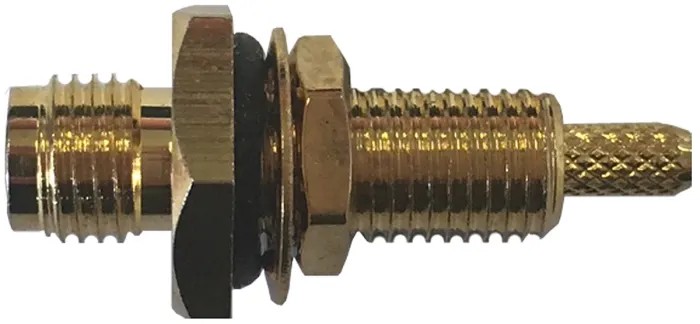

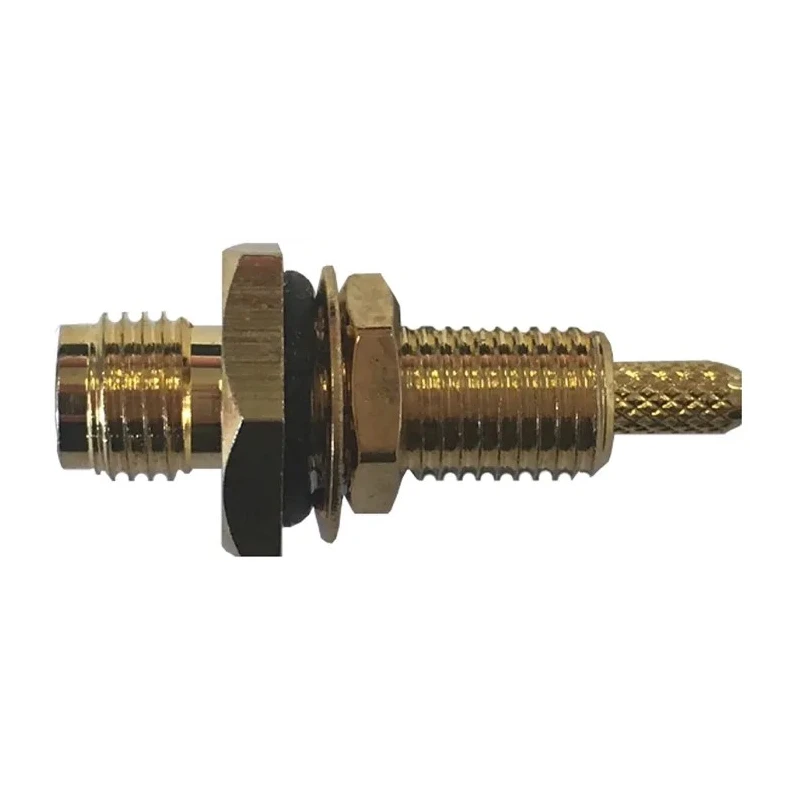

RF Solutions CON Series Coaxial Connector Panel Mount Female SMA, 50 Ω, Straight Body Crimp CON-SMAF-RG174IP
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | RF Solutions |
| Orientation | Straight |
| Model | CON-SMAF-RG174IP |
| Mount Type | Panel Mount |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | CON |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Cable Type | RG174 |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- Panel mount type connector for secure installation.
- Operates effectively up to 6 GHz frequency.
- Gold plated brass contact ensures excellent conductivity.
- Waterproof crimp termination suitable for RG174 cable.
- Wide temperature range from -55°C to 155°C for versatile environments.
- Standard size with bulkhead and normal polarity for compatibility.
- Made in China offering quality assurance.
- Contact and body plating in gold to resist corrosion.
Product Description
RF Solutions CON-SMAF-RG174IP is a high-quality Coaxial Connector from the CON Series designed for panel mount applications. This female SMA connector features a straight body and crimp termination optimized for RG174 cable, with an impedance of 50 Ω and an operating frequency up to 6 GHz. Its gold-plated brass contacts provide excellent signal integrity and corrosion resistance, while the waterproof crimp ensures durability and reliability in challenging environments.
The connector is engineered to withstand a broad temperature range from -55°C minimum to 155°C maximum, making it suitable for industrial, electronics, communication, laboratory, and RF testing applications. The standard size bulkhead design allows for straightforward panel mounting with normal polarity. The gold plating on both the body and contacts enhances performance by reducing oxidation and signal loss over time.
This connector is part of a series that includes crimp and solder versions, with this particular model offering waterproof crimp termination for increased protection against moisture ingress. Applications include RF modules, antennas, wireless communication devices, test equipment, and precision RF signal transmission systems.
Panel mount for secure mechanical installation. Operating frequency up to 6 GHz supports high-frequency RF signals. Gold plated brass contact for excellent electrical performance. Waterproof crimp termination designed for RG174 cable.
Temperature tolerant from -55°C to 155°C for industrial environments. Standard size and bulkhead allow compatibility and ease of use. Gold plated body and contact resist corrosion and ensure long-term reliability.
RF Solutions offers a wide range of Coaxial Connectors known for durability and precision. This product is ideal for professionals in telecommunications, manufacturing, electronics design, and testing fields seeking robust panel mount SMA connectors with reliable performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively up to 6 GHz, making it suitable for high-frequency RF signals.
It is designed for use with RG174 cable, featuring a waterproof crimp termination for secure installation.
The connector can operate within a temperature range of -55°C to 155°C, accommodating various industrial environments.
This coaxial connector has an impedance of 50 Ω, which is standard for many RF applications.
The contacts are made of brass and are gold plated to ensure excellent conductivity and corrosion resistance.
It features a panel mount design, allowing for secure mechanical installation in various applications.
This model has a straight body orientation, which is typical for panel mount applications.
It utilizes a crimp termination method, which is designed to provide a reliable connection for RG174 cables.
Yes, the waterproof crimp termination enhances its durability and makes it suitable for outdoor and challenging environments.
This coaxial connector is manufactured in China, ensuring quality assurance in its production.
It is suitable for RF modules, antennas, wireless communication devices, and test equipment, among other precision RF signal transmission systems.
It has a standard size with a bulkhead design, allowing for compatibility and ease of use in various setups.
