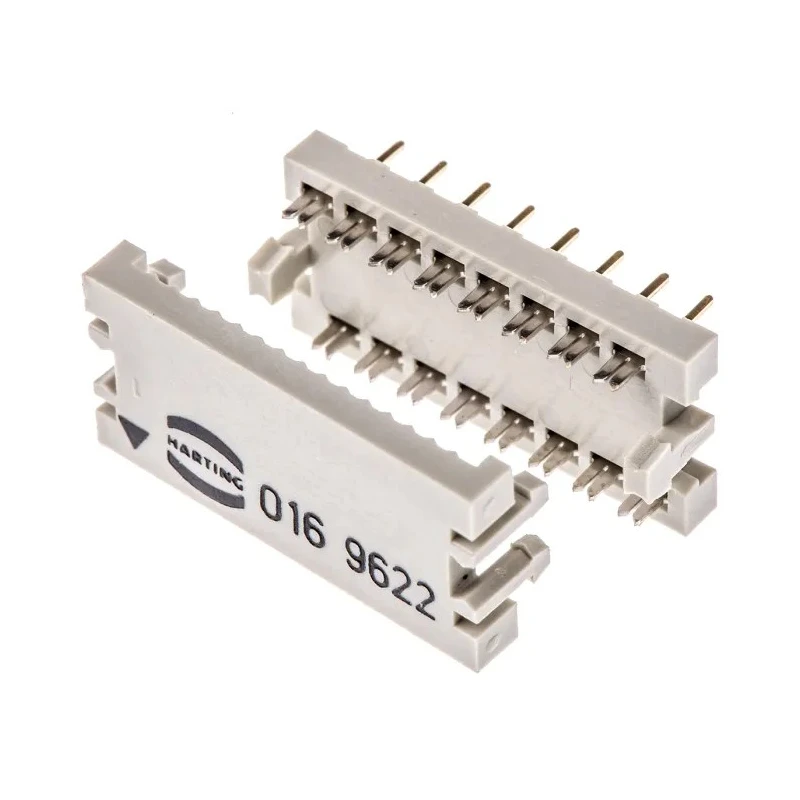

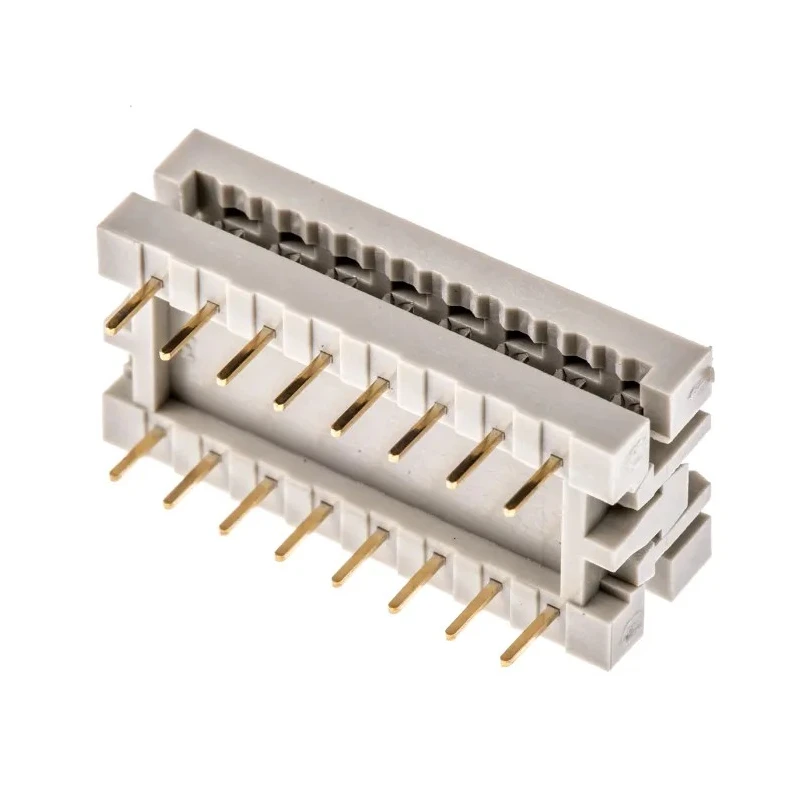

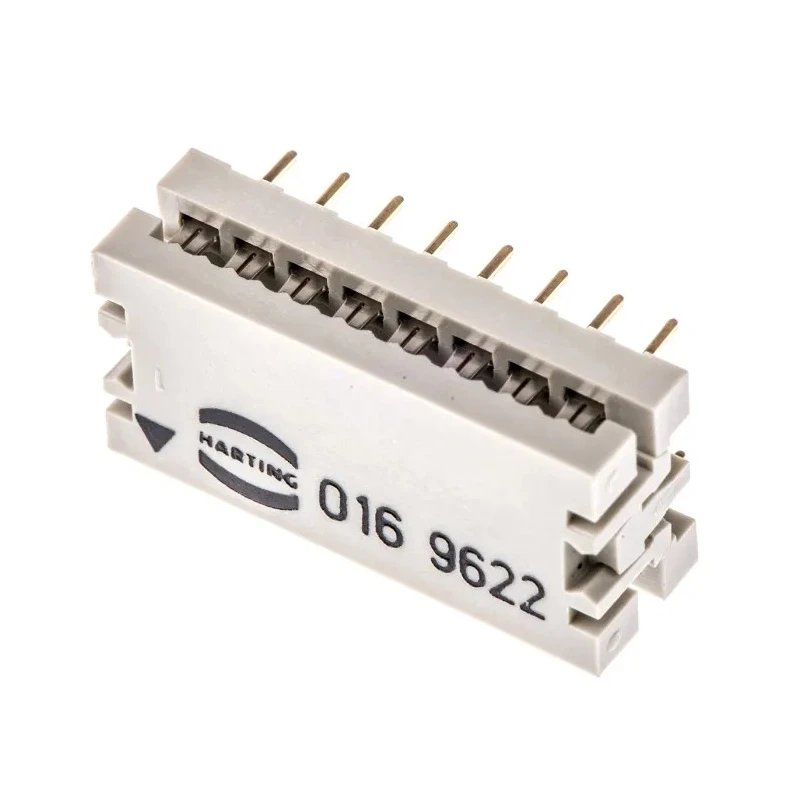

HARTING 16-Way IDC Connector Male for Cable, 2 Row, 500V, 1A, Tin Plating, SEK-17 Series 09170169622

Free Delivery in India | Lowest Global Shipping Charges

HARTING 16-Way IDC Connector Male for Cable, 2 Row, 500V, 1A, Tin Plating, SEK-17 Series 09170169622

Name: HARTING 16-Way IDC Connector Male for Cable, 2 Row, 500V, 1A, Tin Plating, SEK-17 Series 09170169622
Brand: HARTING
SKU: 138258
Price: 6.63 USD
Availability: InStock



Category IDC Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	HARTING
Orientation	Right Angle
Current	1A
Mount Type	Cable
Housing Material	Thermoplastic Resin
Contact Material	Nickel
Series	SEK-17
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	16
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded
TE Connectivity 16-Way IDC Connector Male for Cable, 2 RowBrand	TE Connectivity
HARTING 16-Way IDC Connector Plug for Cable Mount, 2-RowBrand	HARTING

Key Features

The connector features a 2.54mm pitch for compact mounting.
It is shrouded and male gender ensuring secure cable connection.
Constructed with nickel contacts and thermoplastic resin housing for durability.
Designed to operate between -40°C and 125°C temperature range.
Right angle cable mount type facilitates efficient PCB layout.
Contact plating is tin to optimize conductivity and corrosion resistance.
Compliance with UL, CSA standards provides assured safety and quality.
SEK-17 series ensures compatibility with related components.

Product Description

HARTING 09170169622 IDC Connector Male for Cable, 2 Row is a precision-engineered 16-contact electrical connector designed for secure and durable cable to PCB connections. Rated at 500 volts and 1 ampere, this connector is suitable for a wide range of electronic and industrial applications including electronic manufacturing, industrial automation, and PCB assembly.

Featuring a 2-row configuration with a 2.54mm pitch, the connector is shrouded to protect contacts and prevent accidental damage or shorting. The nickel contact material combined with tin plating provides excellent conductivity and corrosion resistance, while the thermoplastic resin housing offers insulation and mechanical stability.

Its robust design supports operation in harsh environments with a temperature range from -40°C up to 125°C, suitable for demanding industrial and commercial applications. The right-angle cable mount style helps optimize PCB space utilization. The IDC (Insulation Displacement Contact) termination type facilitates fast and reliable cable assembly.

This product meets recognized UL and CSA safety standards, ensuring dependable performance and compliance with industrial quality benchmarks. Originating from Germany, it belongs to the SEK-17 series of connectors widely used in electronic component integration.

Key Features:. 16 contacts with a 2-row layout and 2.54mm pitch. Shrouded male connector design for secure cable connection. Nickel contacts with tin plating for durability and conductivity. Thermoplastic resin housing for electrical insulation and robustness.

Rated voltage of 500V and current of 1A. Operating temperature range from -40°C to 125°C. Right angle cable mount for efficient PCB integration. IDC termination type for fast cable assembly. Certified to UL and CSA standards, ensuring safety and reliability.

This HARTING IDC Connector is ideal for electronic component manufacturing, laboratory instrumentation, and industrial equipment requiring reliable, high-density cable connections. Explore more HARTING connectors and components on EnvMart for your industrial and commercial applications.
