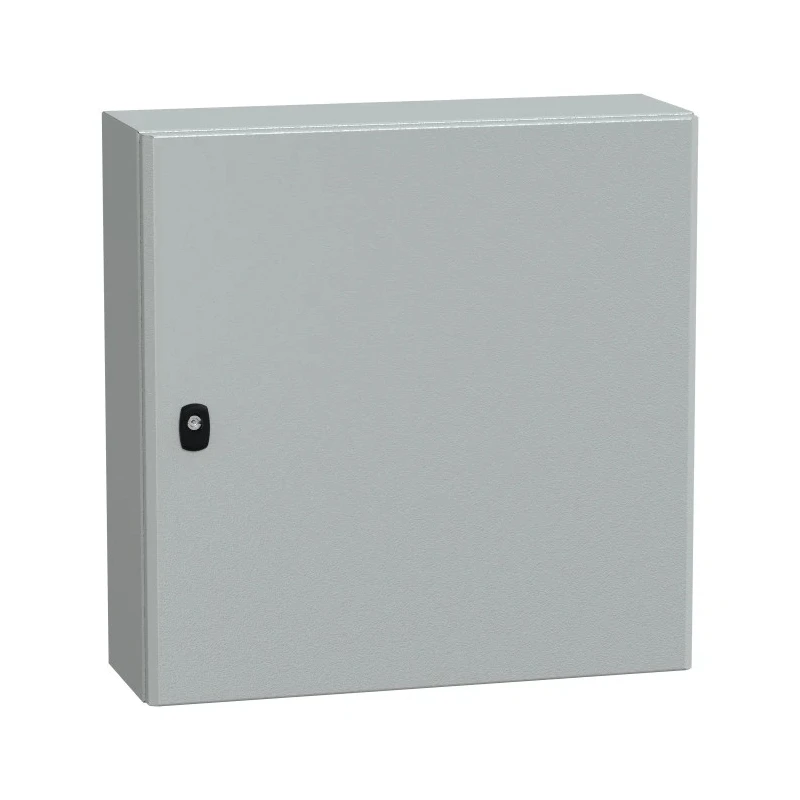

RS PRO PanelSeT S3D Series Steel Wall Box IP66 Grey 600 mm x 600 mm x 200 mm NSYS3D6620P
Specifications
| Country of Origin | France |
|---|---|
| Brand | RS PRO |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYS3D6620P |
| IP Rating | IP66 |
| Series | PanelSet S3D |
| External Width | 600mm |
| External Depth | 200mm |
| External Height | 600mm |
| Standards/Approvals | BV, REACH, UL, RoHS, IEC 62208, DNV, LR, cUL |
| Door Lock Type | Double Bar |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| nVent - Hoffman GL66 Series Steel Wall Box, IP66, 600 mm x 600 mm x 210mmBrand | nVent - Hoffman |
| RS PRO Steel Wall Box, IP66, 600 mm x 600 mm x 200 mmRS Stock No. | 775-5820Brand: RS PRO |
| Rittal KEL Series PET Wall Box, IP66, 600 mm x 600 mm x 200mmBrand | Rittal |
| Sarel Spacial 3D Series Steel Wall Box, IP66, 600 mm x 600 mmBrand | Sarel |
Key Features
- Constructed from steel with an epoxy-polyester powder finish in grey RAL 7035.
- Measures 600 mm in width and height with 200 mm depth for versatile installation space.
- Equipped with a single-piece body, panel mounting plate, and a 3-point closure system with handle.
- Features a 3 mm double bar lock insert for enhanced security and IK10 impact resistance.
- Door opens up to 120 degrees facilitating easy component installation.
- UV-resistant and protected against strong water jets suitable for indoor and outdoor use.
- Complies with BV, REACH, UL, RoHS, IEC 62208, DNV, LR, and cUL standards for reliable safety and performance.
- Includes fixing kit and gland plate, designed for easy mounting and cable entry management.
Product Description
Schneider Electric NSYS3D6620P PanelSeT S3D Series Steel Wall Box is a professional-grade electrical enclosure designed for robust and secure housing of electrical components and panels. Its durable steel construction features an epoxy-polyester powder coating in grey (RAL 7035) ensuring long-lasting protection against corrosion and mechanical damage.
This wall box measures 600 mm in width and height, and 200 mm in depth, providing ample internal space for panel mounting and wiring requirements. The enclosure body is a single-piece design with a panel mounting plate included for convenient installation of internal components.
The enclosure is rated IP66 for ingress protection, meaning it protects against dust ingress and powerful water jets, making it suitable for both indoor and outdoor industrial, manufacturing, workshop, and food production facility applications. It also features an IK10 impact resistance rating, safeguarding against high mechanical impact.
The door mechanism utilizes a 3-point closure system with a handle that doubles as an operating key and protective cap removal tool. A 3 mm double bar lock with three locking points enhances security against unauthorized access. The door opens to a 120-degree angle to provide easy access for installation and maintenance operations.
Additional features include a gland plate for cable entry management, fixing kit for secure mounting, and a UV-resistant coating to ensure longevity when exposed to sunlight. The design conforms to international standards including IEC 62208, UL, cUL, BV, DNV, LR, REACH, and RoHS promoting compliance with global safety and environmental regulations.
Designed for disassembly, this product supports sustainable practices by facilitating recycling and reducing environmental impact. Manufactured in France, it exemplifies quality engineering for demanding industrial electrical enclosure requirements.
Constructed from steel with epoxy-polyester powder finish in grey RAL 7035. Protects components with IP66 ingress and IK10 impact resistance ratings. Single piece body with included panel mounting plate and 3-point closure door system.
Door opens 120 degrees with dual-purpose handle and secure double bar lock. Includes fixing kit and gland plate for installation and cable management. Meets international standards BV, REACH, UL, RoHS, IEC 62208, DNV, LR, and cUL.
UV resistant for effective outdoor and indoor use. Suitable for food production, workshop, office, and industrial environments. Designed for easy disassembly with environmental sustainability in mind. Manufactured in France ensuring high standards of quality.
Explore more electrical enclosures and Wall Boxes from reliable brands on EnvMart to meet your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures 600 mm in width, 600 mm in height, and 200 mm in depth.
It has an IP66 rating, which means it is protected against dust ingress and powerful water jets, suitable for both indoor and outdoor use.
The enclosure features an IK10 impact resistance rating, providing protection against high mechanical impact.
It is constructed from steel with an epoxy-polyester powder finish in grey (RAL 7035).
The door utilizes a double bar lock with a 3-point closure system for enhanced security.
The door opens to a 120-degree angle, allowing easy access for installation and maintenance.
It complies with several international standards including BV, REACH, UL, RoHS, IEC 62208, DNV, LR, and cUL.
Yes, it comes with a panel mounting plate included for convenient installation of internal components.
It includes a gland plate for cable entry management and a fixing kit for secure mounting.
This product is manufactured in France, ensuring adherence to high quality standards.
It is suitable for use in industrial, manufacturing, workshop, and food production facility environments.
The UV-resistant coating helps ensure longevity when the enclosure is exposed to sunlight, making it suitable for outdoor use.
