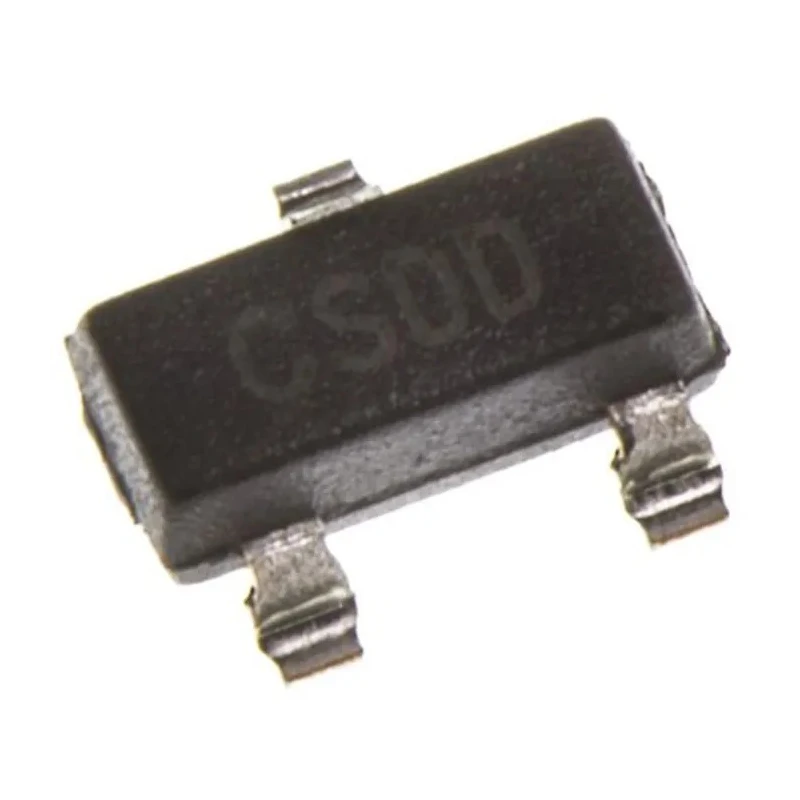

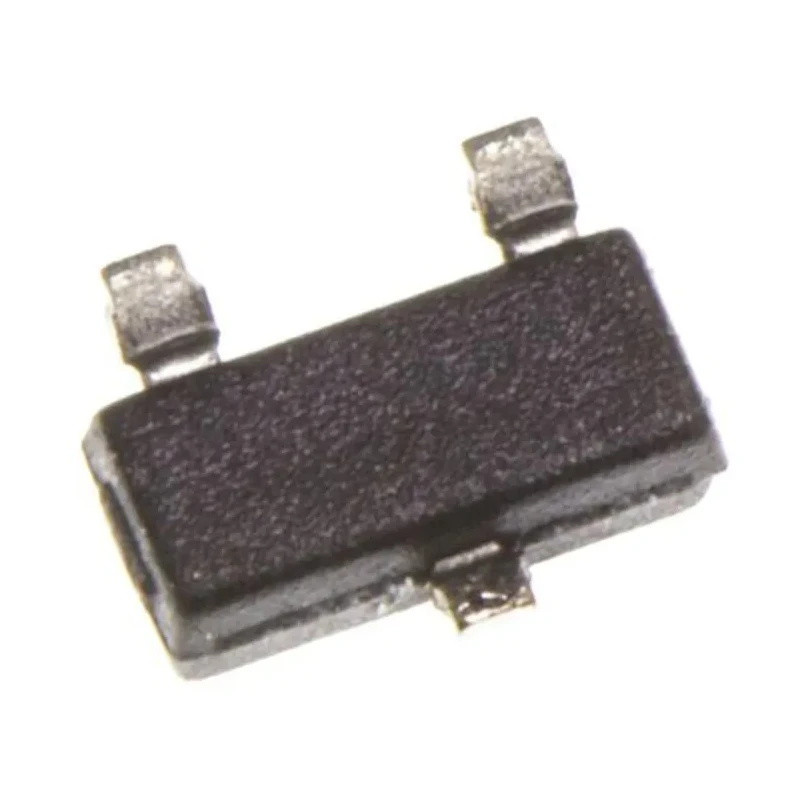

Renesas Electronics Fixed Series Precision Voltage Reference 3.3V ±0.03% 20mA Surface Mount 3-Pin SOT-23 ISL60002BAH333Z-T7A

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics Fixed Series Precision Voltage Reference 3.3V ±0.03% 20mA Surface Mount 3-Pin SOT-23 ISL60002BAH333Z-T7A

Name: Renesas Electronics Fixed Series Precision Voltage Reference 3.3V ±0.03% 20mA Surface Mount 3-Pin SOT-23 ISL60002BAH333Z-T7A
Brand: Renesas Electronics
SKU: 138200
Price: 11.8 USD
Availability: InStock



Category Voltage Reference Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	950μm
Length	2.92mm
Model	ISL60002BAH333Z-T7A
Mount Type	Surface
Output type	Fixed
Series	ISL60002
Temperature Coefficient	20 ppm/°C
Output Current	20mA
Topology	Series
Maximum Operating Temperature	105°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Reference Type	Fixed
Maximum Input Voltage	5.5V
Line Regulation	200 μV/V
Minimum Input Voltage	2.7V
Pin Count	3
Reference Voltage	3.3V
Initial Accuracy	±0.03 %

Key Features

This voltage reference features a 3-pin SOT-23 surface mount package.
Initial accuracy is guaranteed at ±0.03% ensuring high precision.
The device operates over a temperature range of -40°C to 105°C.
It supports a maximum input voltage of 5.5V and a minimum input voltage of 2.7V.
Temperature coefficient is rated at 20 ppm/°C, ensuring stable voltage output.
Line regulation is 200 μV/V, minimizing voltage variation with input changes.
The compact dimensions measure 2.92mm in length and 950μm in height.
Ideal for industrial, automotive, and power management applications requiring stable voltage references.

Product Description

Renesas Electronics ISL60002BAH333Z-T7A is a fixed series precision voltage reference designed for surface mount applications, packaged in a 3-pin SOT-23 housing. It delivers a stable 3.3V output voltage with an initial accuracy of ±0.03%, making it suitable for high-precision industrial and automotive circuits.

This voltage reference operates reliably over wide temperature conditions from -40°C to 105°C, with an excellent temperature coefficient of 20 ppm/°C that ensures minimal output drift. It can source up to 20mA output current, accommodating various load conditions, and maintains line regulation at 200 μV/V for stability against input voltage fluctuations.

The component’s maximum input voltage is rated at 5.5V, with a minimum operating voltage down to 2.7V, allowing versatile power supply designs. Its compact SOT-23 package dimensions of 2.92mm length and 950μm height make it ideal for space-constrained PCB layouts.

Applications include industrial control systems, power management circuits, precision measurement equipment, and automotive electronics where voltage accuracy and stability are critical. This component is not certified against automotive standards but excels in general precision voltage reference roles.

3.3V fixed output voltage for precise referencing. Initial accuracy ±0.03% for high precision. Output current capability of 20mA supports diverse loads. Wide operating temperature range from -40°C to 105°C. Compact 3-pin SOT-23 package suitable for surface mounting.

Line regulation of 200 μV/V ensures stable output. Temperature coefficient of 20 ppm/°C for minimal drift. Input voltage range from 2.7V to 5.5V enables flexible design.

This voltage reference is essential for electronics design engineers requiring accurate, stable voltage sources for industrial automation, instrumentation, power management ICs, and related fields. Browse more precision Voltage References and power management components on EnvMart for optimized electronic system design.
