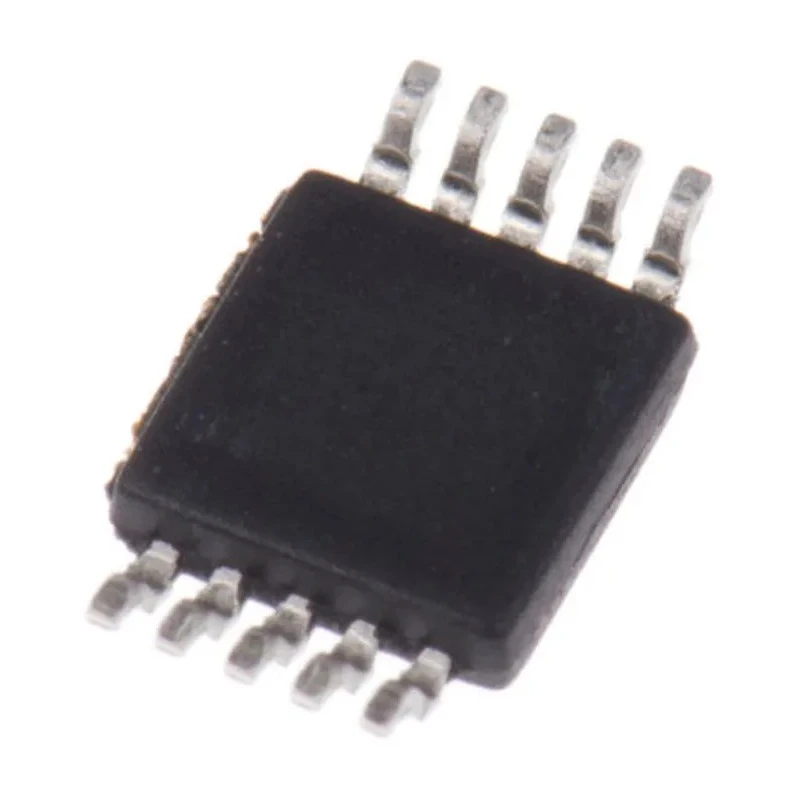

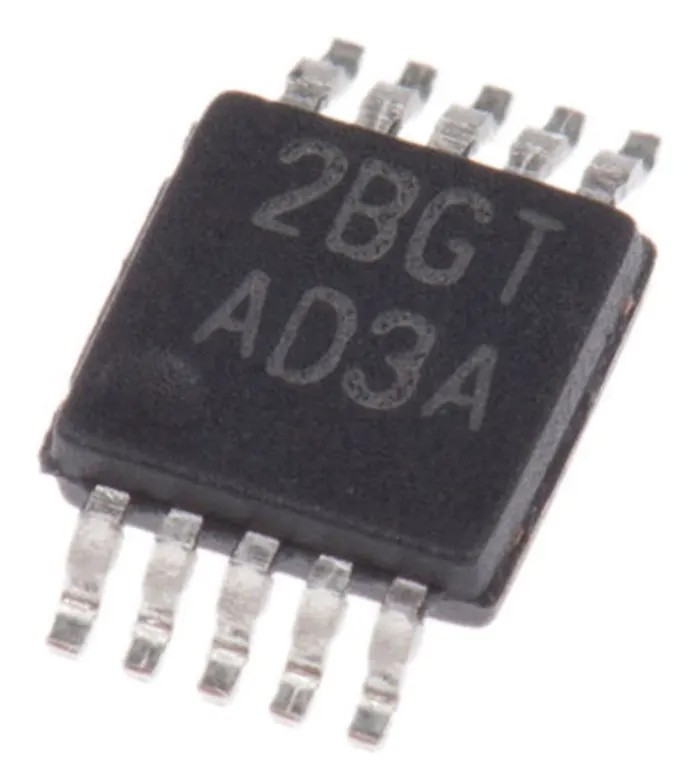

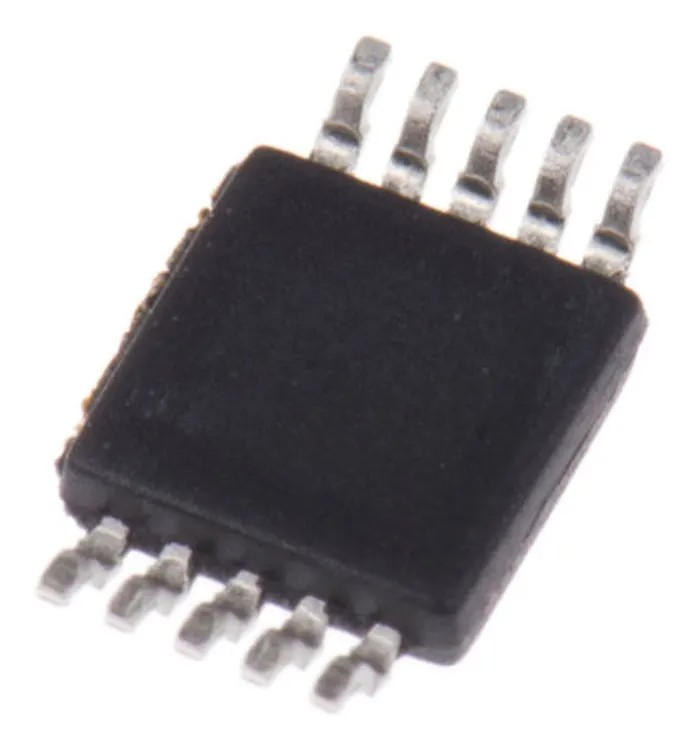

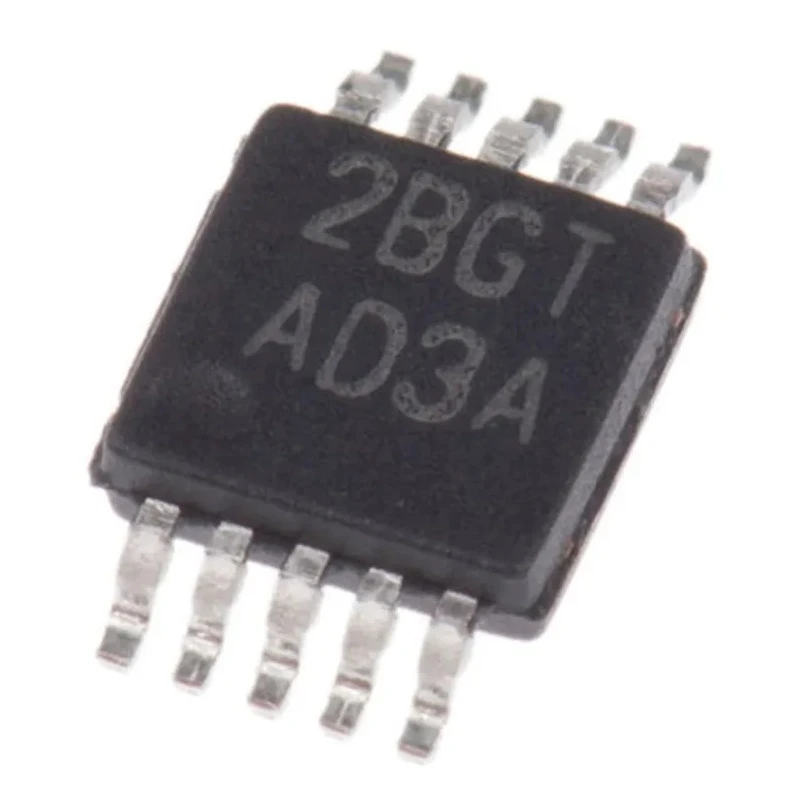

Renesas Electronics Line Transceiver 3 State, 10-Pin MSOP ISL3170EIUZ

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics Line Transceiver 3 State, 10-Pin MSOP ISL3170EIUZ

Name: Renesas Electronics Line Transceiver 3 State, 10-Pin MSOP ISL3170EIUZ
Brand: Renesas Electronics
SKU: 138197
Price: 1.93 USD
Availability: InStock



Category Line Interface ICs Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	850μm
Length	3.05mm
Model	ISL3170EIUZ
Width	4.9mm
Mount Type	Surface
Output type	3 State
Series	ISL3170E
Input Type	Differential
Maximum Operating Temperature	85°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
IC Type	Line Transceiver IC
Standards/Approvals	RS-485, IEC61000 ESD, RoHS, RS-422
Pin Count	10
Maximum Supply Voltage	3.6V
Logic Family	CMOS
Logic Function	Bus Transceiver
Minimum Supply Voltage	3V
Maximum High Level Output Current	4mA
Maximum Propagation Delay Time @ CL	1500ns
Supply Current	800μA

Key Features

Operates with a minimum supply voltage of 3V and a maximum of 3.6V.
Maximum high and low level output current of 4mA each for reliable signal transmission.
Low supply current of 800μA ensures energy-efficient operation.
Operating temperature range from -40°C to 85°C, suitable for industrial environments.
Complies with RS-485, IEC61000 ESD, RoHS, and RS-422 standards for robust and safe use.
Logic family CMOS and differential input type for noise immunity in data lines.
Surface mount MSOP package facilitates automated assembly processes.

Product Description

Renesas Electronics ISL3170EIUZ is a high-performance line transceiver IC featuring 3 state output and housed in a compact 10-pin MSOP package. Designed for robust bus transceiver applications, it supports RS-485 and RS-422 protocols widely used in industrial, communication, and automation systems.

This line transceiver operates efficiently within a supply voltage range of 3V to 3.6V, drawing a low current of 800μA, which makes it ideal for low-power embedded applications. The device delivers a maximum high level and low level output current of 4mA, providing reliable signal strength in noisy environments.

The ISL3170EIUZ is designed to operate over a wide temperature range from -40°C to 85°C, ensuring durability and stable performance in harsh industrial conditions. Its compact dimensions, with a length of 3.05mm, width of 4.9mm, and height of 850μm, enable dense PCB layout configurations suitable for modern electronics manufacturing.

The device uses CMOS logic family technology with differential input type and 3 state output, offering excellent noise immunity on data lines. The MSOP surface mount package is compatible with automated pick-and-place equipment, improving assembly efficiency.

Certified to comply with RS-485, IEC61000 ESD, RoHS, and RS-422 standards, the ISL3170EIUZ line transceiver ensures safety, reliability, and environmental compliance. Typical use cases include industrial automation, data communication networks, and instrumentation systems requiring robust differential signaling over long twisted pair cables.

Operates between 3V to 3.6V supply voltage. Maximum high and low level output currents of 4mA each. Low supply current of 800μA for power efficiency. Wide operating temperature range of -40°C to 85°C. Compact 10-pin MSOP surface mount package.

Meets RS-485, IEC61000 ESD, RoHS, and RS-422 standards. CMOS logic family with differential input. Ideal for industrial and communication system applications. Explore the comprehensive range of Line Interface ICs and bus transceivers at EnvMart for your industrial, laboratory, and communication equipment needs.
