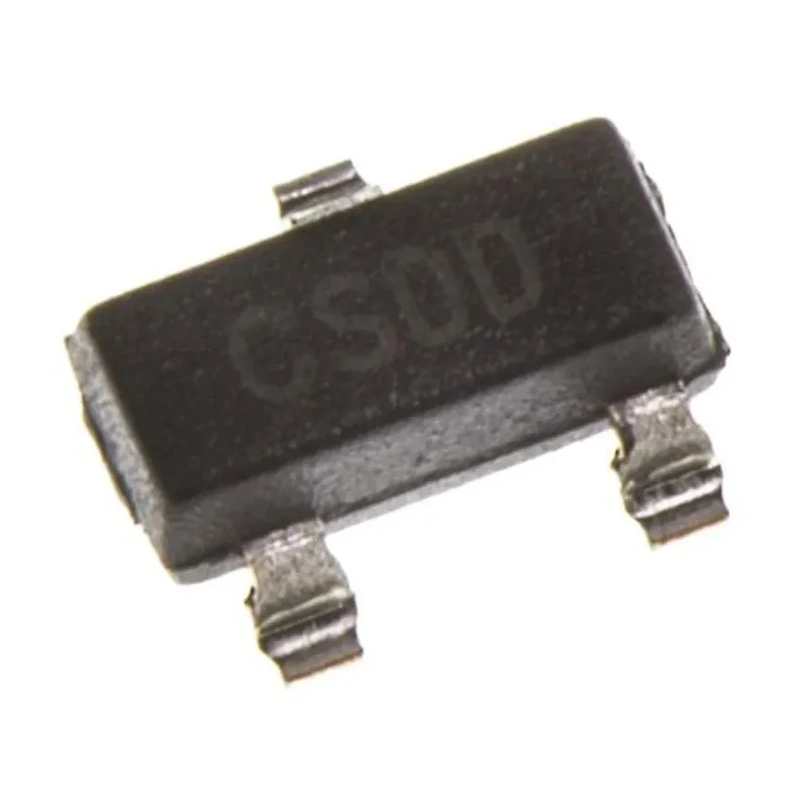

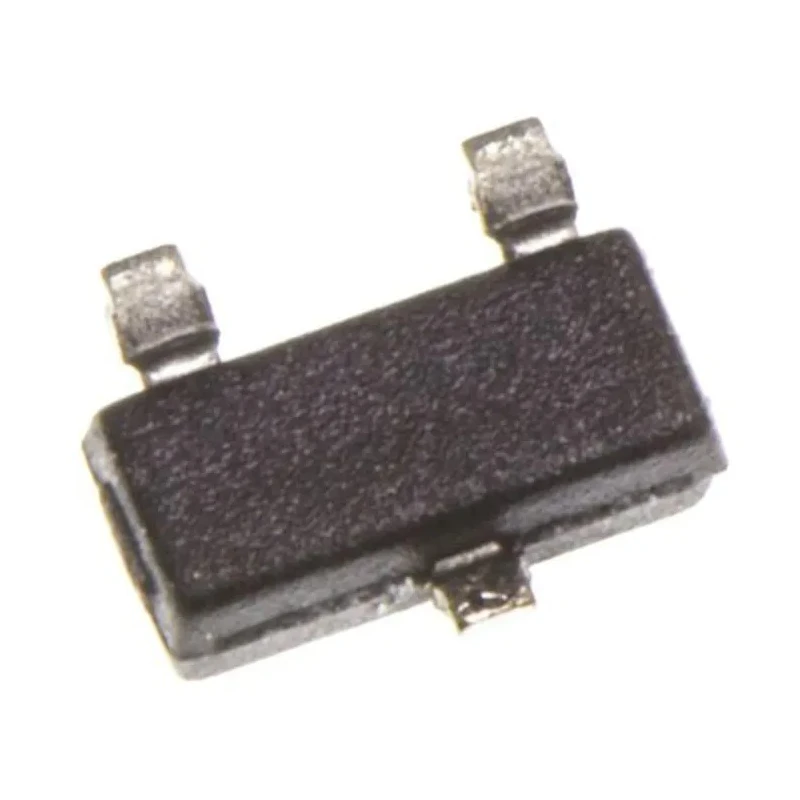

Renesas Electronics Fixed Series Voltage Reference 5V ±0.2 % Accuracy 7mA Output Current 3-Pin SOT-23 ISL21080CIH315Z-T7A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 950μm |
| Length | 2.92mm |
| Model | ISL21080CIH315Z-T7A |
| Mount Type | Surface |
| Output type | Fixed |
| Series | ISL21080 |
| Temperature Coefficient | 50 ppm/°C |
| Output Current | 7mA |
| Topology | Series |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Load Regulation | 350 μV/mA |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 5.5V |
| Line Regulation | 350 μV/V |
| Minimum Input Voltage | 2V |
| Pin Count | 3 |
| Reference Voltage | 5V |
| Initial Accuracy | ±0.2 % |
Key Features
- Maintains reference voltage stability across temperature with 50 ppm/°C coefficient.
- Designed for surface mount applications with a small 2.92mm length and 950μm height.
- Operates within a temperature range of -40°C to 85°C for industrial robustness.
- Provides line regulation of 350 μV/V and load regulation of 350 μV/mA for precise voltage control.
- Supports input voltage ranging from 2V to 5.5V ensuring flexible power supply integration.
- Features a fixed voltage output type optimized for consistent performance.
- Has a series topology suitable for stable reference across circuits.
Product Description
Renesas Electronics ISL21080CIH315Z-T7A fixed series voltage reference combines precise 5V output voltage with a tight ±0.2 % initial accuracy, ideal for demanding electronic applications.
This voltage reference is housed in a compact 3-pin SOT-23 surface mount package measuring 2.92mm in length and 950μm in height, suited for space-constrained circuit boards.
Operating reliably over a wide temperature range from -40°C to 85°C, this device is well-suited for industrial and automotive environments where temperature variations are frequent.
The output current capability of 7mA along with line regulation of 350 μV/V and load regulation of 350 μV/mA ensures stable voltage under varying supply and load conditions, essential for precision equipment operation.
The ISL21080 series utilizes a series topology with fixed output, simplifying design requirements in power management and analog signal conditioning applications. Maintains voltage accuracy with a low temperature coefficient of 50 ppm/°C.
Compact SOT-23 surface mount package suitable for automated PCB assembly. Wide operating voltage input range from 2V to 5.5V for design flexibility. Stable output current of 7mA to support downstream circuitry. Industrial-grade temperature specs for reliable operation in harsh conditions.
Low line and load regulation values for minimized output fluctuation. Fixed output voltage type for straightforward implementation.
Applicable in industrial electronics, power management ICs, instrumentation, and automotive control systems requiring precise voltage references. The compact size and robust accuracy make it suitable for embedded systems and test equipment.
This voltage reference can be integrated seamlessly into complex electronic assemblies that demand stable voltage supplies for ADCs, DACs, and other sensitive components. Explore comprehensive selections of power management ICs and Voltage References for diverse industrial and laboratory environments at EnvMart.
