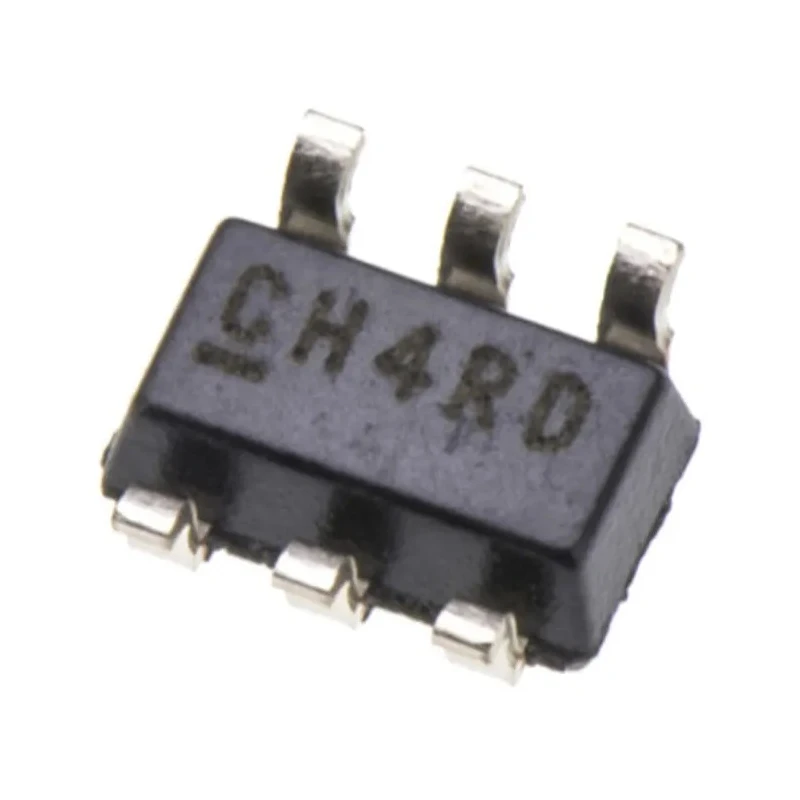

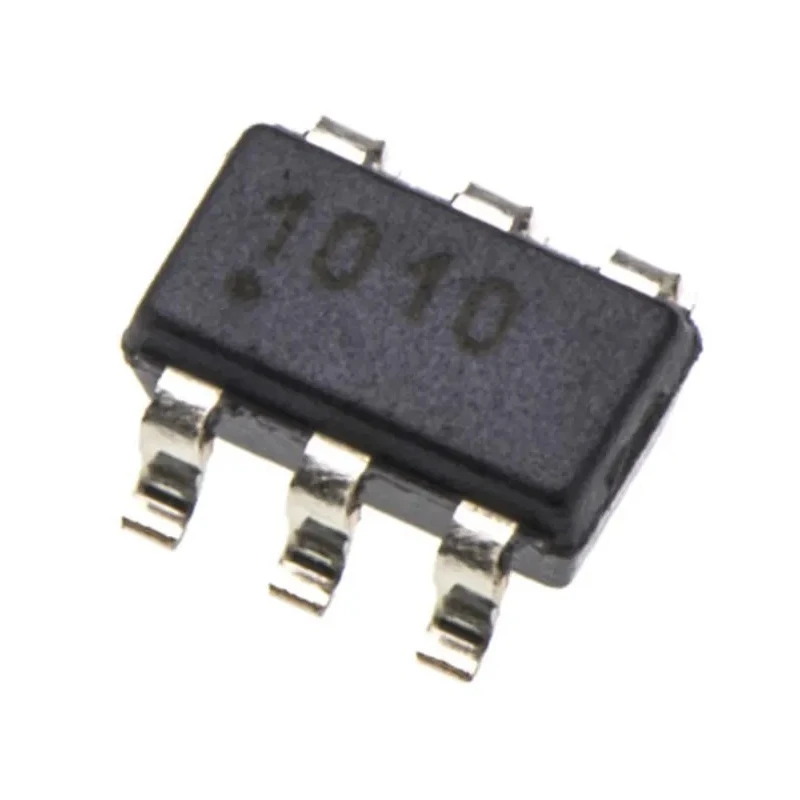

Renesas Electronics Line Transceiver, 3 State, Bipolar, 6-Pin SOT-23 ISL3295EIHZ-T7A

Renesas Electronics ISL3295EIHZ-T7A is a high-performance line transceiver designed for reliable RS-485 communication over long twisted pair wiring in industrial settings. This device features a 3 state bipolar output and supports both TTL and CMOS logic families, making it ideal for diverse interface requirements.

The compact 6-pin SOT-23 surface mount package offers a small footprint with dimensions of 2.9mm length, 2.8mm width, and 1.15mm height, facilitating installation in space-constrained applications.

With a minimum supply voltage of 3.3V and a maximum of 5.5V, this transceiver operates efficiently at low power levels, drawing only 1µA in supply current. Its maximum propagation delay is 42ns at CL, enabling fast and reliable data transmission.

The operating temperature range of -40°C to 125°C suits the demanding environments common in automotive and industrial electronics. The bipolar polarity and differential input type enhance noise immunity and signal integrity over extended cable lengths.

Supports TTL and CMOS logic families for broad compatibility. Compact SOT-23 6-pin package ensures ease of mounting and high-density usage. Low supply current minimizes power consumption in embedded systems. Wide temperature range enables operation in harsh environmental conditions.

Fast propagation delay ensures timely signal processing. Robust differential input design improves communication reliability. Suitable for industrial, automotive, and communication applications. Manufactured in Malaysia, complying with quality standards.

This line transceiver from Renesas Electronics is suited for industrial, laboratory, and communication equipment requiring reliable RS-485 data transmission with energy efficiency and compact design.
