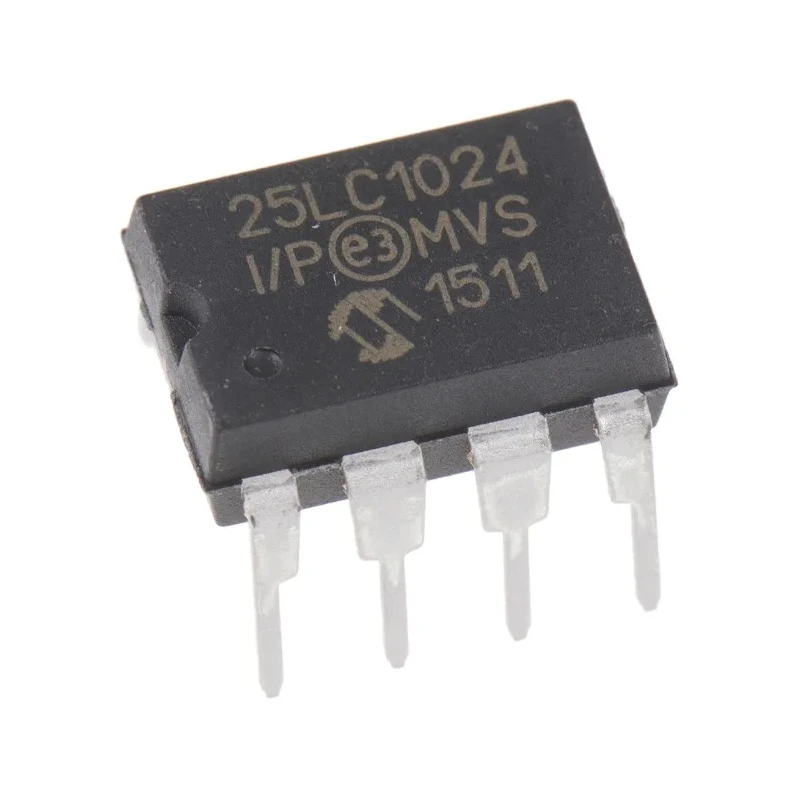

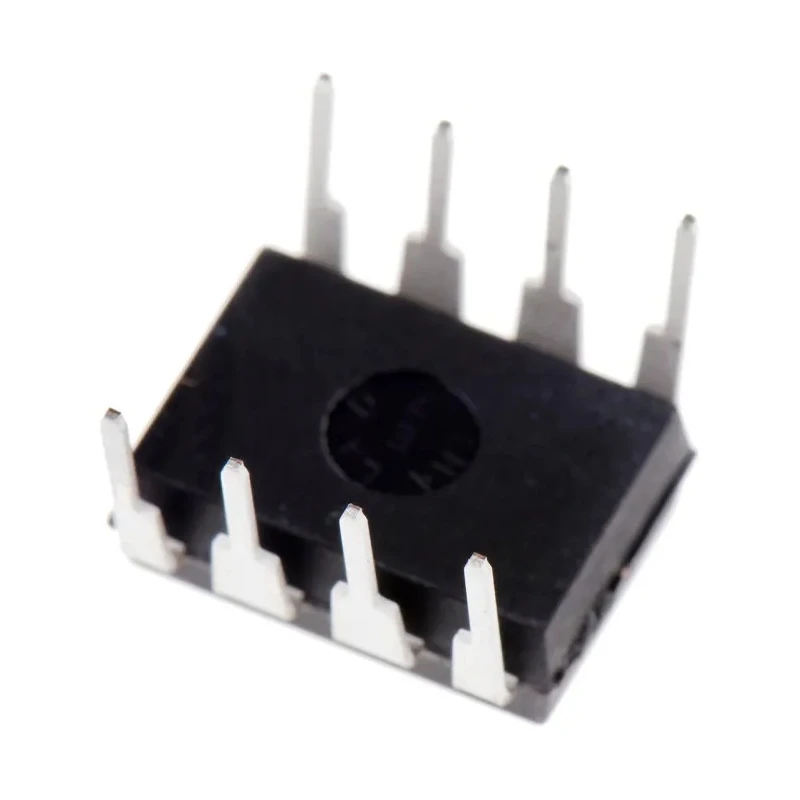

Microchip 1 MB Serial EEPROM 50 ns 8-Pin PDIP Serial-SPI 25LC1024-I/P

Microchip 25LC1024-I/P is a high-performance 1 MB Serial EEPROM designed for use in industrial and automotive electronics requiring reliable non-volatile memory storage. Featuring an 8-pin PDIP package for through-hole mounting, it communicates via a Serial-SPI interface supporting a maximum clock frequency of 20 MHz, ensuring swift and efficient data exchange.

This EEPROM operates over a voltage range of 2.5 V to 5.5 V and has an operating temperature range from -40°C to 85°C, making it robust for challenging environments. The device offers a maximum random access time of 50 ns with 128K x 8-bit organization, accommodating 128k words of 8 bits each.

Designed to retain data for up to 200 years, the 25LC1024-I/P ensures long-term data integrity for critical applications. It meets the stringent AEC-Q100 automotive standard, providing reliability in automotive and industrial usage scenarios. The compact dimensions of 9.4 mm length and 6.35 mm width facilitate easy integration on printed circuit boards.

This EEPROM's low supply current of 10 mA makes it suitable for power-conscious applications within embedded systems, data logging, and control modules. Typical industrial and automotive use cases include embedded memory storage, sensor data retention, and configuration memory.

Offers 1 MB memory capacity for diverse data storage applications. Interfaces using a Serial-SPI protocol ensuring high-speed communication. Supports operation within wide voltage range from 2.5 V to 5.5 V. Compact PDIP 8-pin through-hole mounting package measuring 9.4 mm length and 6.35 mm width.

Capable of maximum clock frequency of 20 MHz for efficient data transactions. Operating temperature range spans from -40°C to 85°C suitable for various environments. Data retention time rated at 200 years ensuring long-term data integrity.

Complies with Automotive Standard AEC-Q100, suitable for automotive applications. Supply current of 10 mA, optimizing power usage in embedded systems. Explore more EEPROM and memory chip solutions for industrial, automotive, and electronic component applications at EnvMart.
