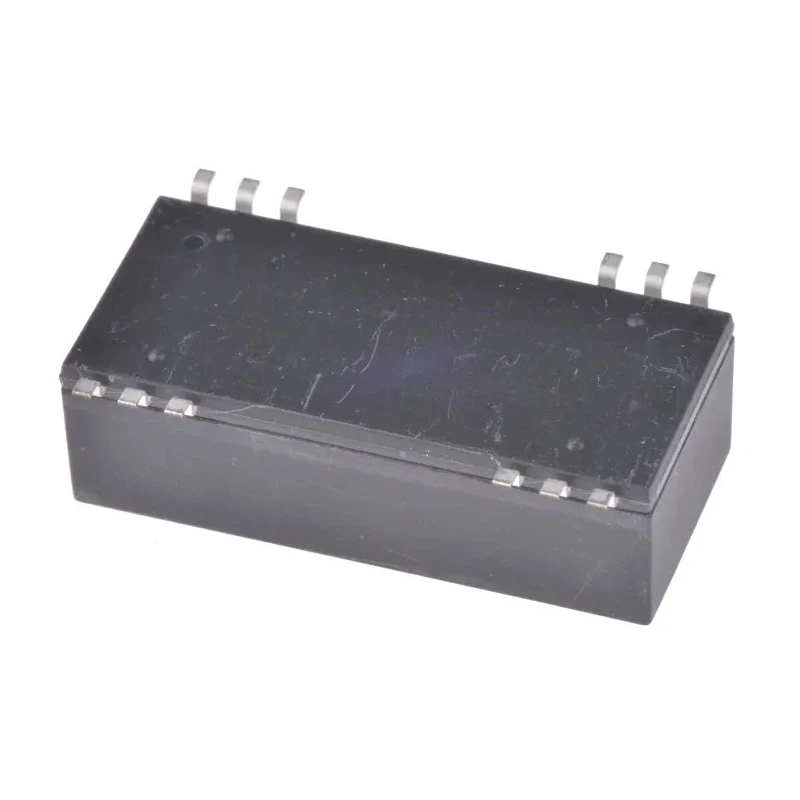

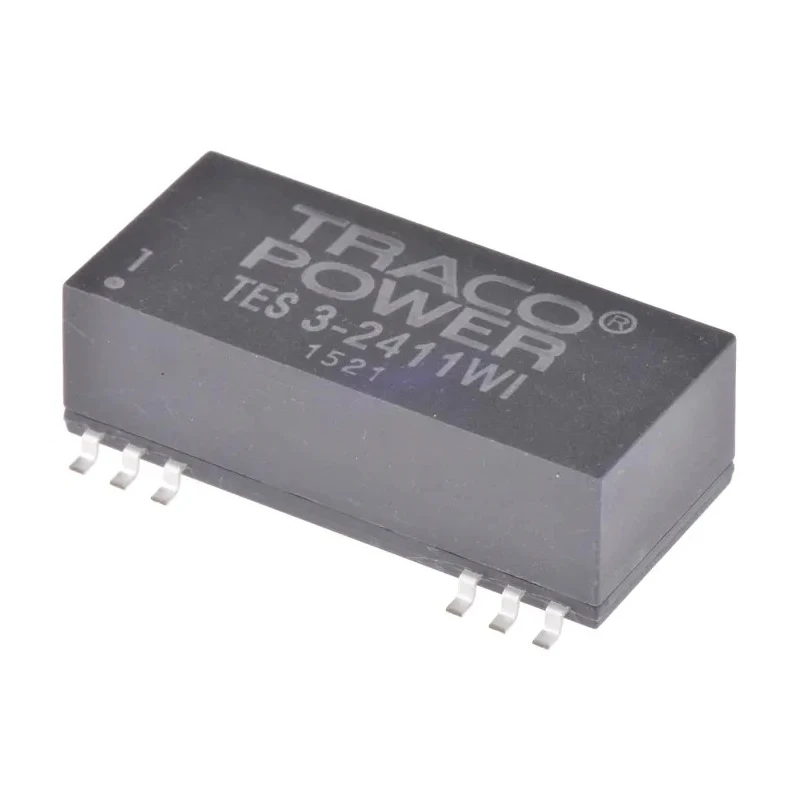

TRACOPOWER 3W Surface Mount DC/DC Converter 5V DC 600mA, 9V-36V Input TES 3-2411WI

TRACOPOWER TES 3-2411WI is a high performance 3W surface mount DC/DC converter module engineered for industrial and electronic applications requiring compact size and wide input voltage flexibility. It provides a regulated 5V DC output at 600mA current capacity and supports input voltages ranging from 9V to a maximum of 36V DC.

The module’s ultra-wide 4:1 input voltage range allows robust functionality across varying power supply conditions. With an isolation voltage rating of 1.5kV DC, it is suitable for applications demanding electrical isolation between input and output circuits.

Operating reliably within a temperature range of -40°C to +70°C, this converter module features high efficiency of 79% which maximizes energy utilization and reduces heat generation.

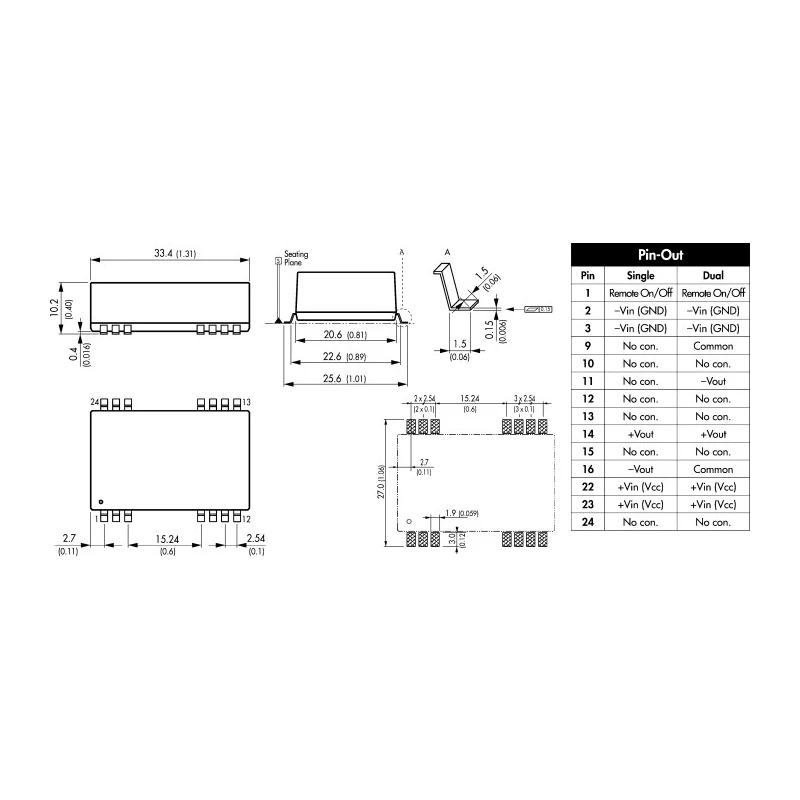

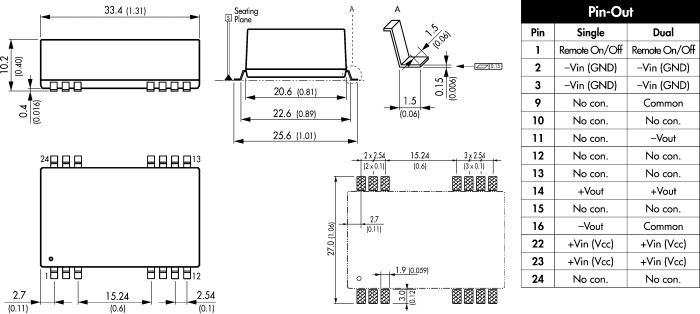

Additional features include integrated short circuit protection, an input EMI filter complying with EN 55022 Class A standards, and remote on/off capability for flexible system design. The device is housed in a low profile package sized 32.3mm length by 9.7mm depth with 24 pins for surface mounting, ensuring a compact PCB footprint.

The TES 3-2411WI series modules are qualified for lead-free reflow soldering processes according to IPC/JEDEC J-STD-020C and use UL94V-0 rated material, supporting environmentally conscious manufacturing requirements.

With an MTBF rating of 1,000,000 hours (MIL-HDBK-217F at 25°C), this DC/DC converter is designed for long-term reliability in demanding industrial, telecommunications, instrumentation, and power supply applications.

This model is manufactured in Taiwan, Province of China, and embodies TRACOPOWER’s commitment to quality and high-performance power conversion solutions. Compact 3W single output DC/DC converter with 5V 600mA output current.

Wide input voltage range (9V to 36V) for versatile use. High 1.5kV DC isolation ensures safe electrical separation. Temperature operation from -40°C to +70°C provides rugged environmental tolerance. 79% efficiency reduces power losses and heat build-up.

Surface mount design with 24 pins and low profile package (32.3mm x 9.7mm). Short circuit protection and EN 55022 input filtering enhance system reliability. Lead-free solder and UL94V-0 package material support environmental compliance.
