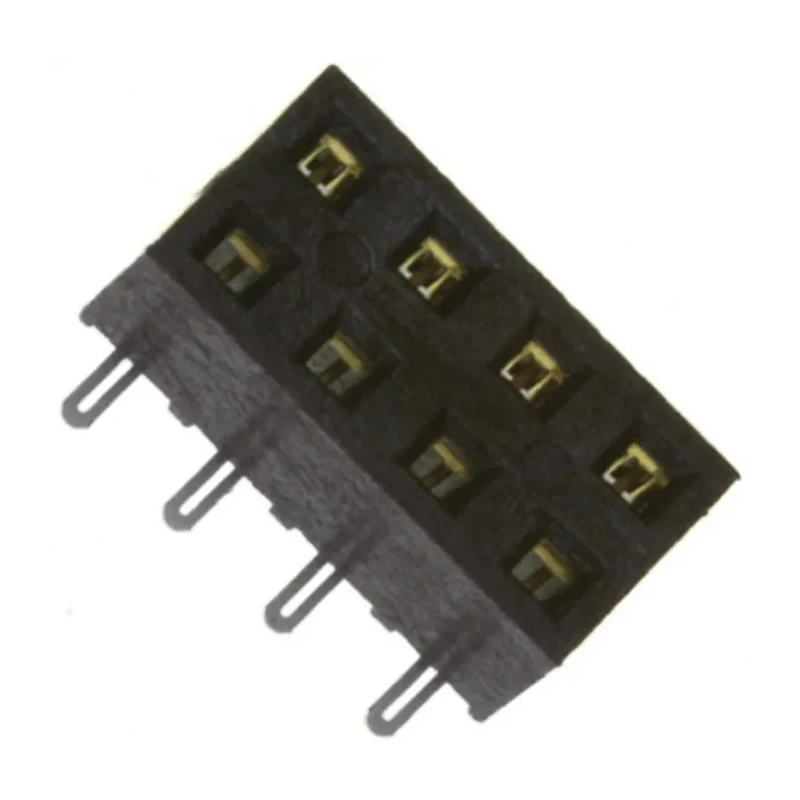

Samtec SMM Series Straight Surface PCB Socket 8-Contact 2 Row 2 mm Pitch Solder SMM-104-02-S-D

Samtec SMM-104-02-S-D is a high-quality PCB socket in the SMM Series designed for straight surface mounting with 8 contacts arranged in 2 rows. This socket features a 2 mm pitch solder termination that ensures secure and reliable connections on printed circuit boards. The housing is constructed from Liquid Crystal Polymer, offering excellent mechanical stability and thermal resistance for demanding industrial and electronic applications.

The female contacts are made from Beryllium Copper Alloy and are gold plated to provide optimal electrical conductivity and corrosion resistance. The socket operates efficiently within an operating temperature range of -55°C to 125°C, making it suitable for various environmental conditions encountered in industrial, manufacturing, laboratory, and electronics assembly settings.

The contact system, known as Tiger Eye, supports data rates up to 8 Gbps, enhancing performance for high-speed digital communication applications. It supports a current rating of 3.9 amperes and a voltage rating of 350 volts, ensuring compatibility with standard PCB connector requirements.

The socket's surface mount design with a straight orientation allows easy integration onto PCBs while saving space. With a compact 1.27 mm row pitch, this socket supports dense PCB configurations, optimizing board layouts in sophisticated electronic devices.

Supports a current rating of 3.9A for reliable electrical performance. Made from Liquid Crystal Polymer housing for durability and high temperature resistance. Features Beryllium Copper Alloy female contacts with gold plating for optimal conductivity and corrosion resistance.

Operates within a wide temperature range from -55°C to 125°C for diverse industrial environments. Designed with Tiger Eye contact system for superior signal integrity up to 8 Gbps. Provides a voltage rating of 350V suitable for standard PCB connector applications.

Surface mount type with straight orientation for easy PCB assembly and space saving. Complies with RoHS standards without specific additional approvals. Ideal for board-to-board connector system applications in electronics industries.

Compact row pitch of 1.27 mm enables high-density PCB layouts.

This product is widely used in industrial tools, electronics manufacturing, research laboratories, telecommunications, and commercial electronics assembly. It ensures dependable interconnection solutions for board-to-board communication requirements.
