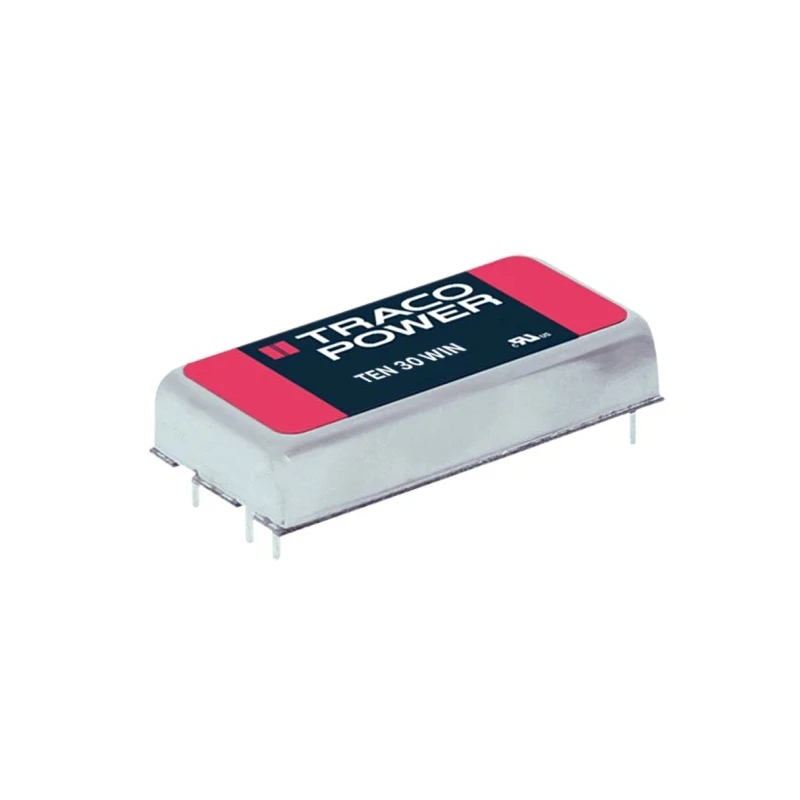

TRACOPOWER High Power Density Regulated Isolated DC/DC Converter 12V DC 2.5A 36V DC Input 9V Input 30W PCB TEN 30-2412WIN
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 30WIN DC/DC Converter, 12V dc/ 2 |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 40.6mm |
| Model | TEN 30-2412WIN |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TEN 30WIN |
| Maximum Operating Temperature | 75°C |
| Package Type | Shielded Metal Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 1300000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 2.5A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
| Ultra-wide 4 | 1 input voltage range |
| TEN 30-241x and TEN 30-242x | see 745-1222 (L1) and 745-1231 (L2) |
| TEN 30-243x | see 745-1183 (L1) and 745-1196 (L2) |
| TEN 30-481x and TEN 30-482x | see 745-1222 (L1) and 745-1231 (L2) |
Key Features
- High power density encapsulated module suitable for communication and industrial electronics.
- Output voltage adjustable ±10% with external resistors.
- Supports operating temperature range from -40°C to 75°C.
- Provides 1.5kV DC input-output isolation for safety.
- Efficient design with 89% typical efficiency.
- Compact size of 40.6mm length and 10.2mm depth.
- Includes protections against over-temperature, over-voltage, overload, and short circuit.
- Standard industry pin-out with 6 pins for PCB mounting.
Product Description
TRACOPOWER TEN 30-2412WIN is a high power density regulated isolated DC/DC converter designed for demanding industrial and communication electronics applications. It produces a stable 12V DC output at 2.5A current and 30W power, housed in a compact shielded metal case suitable for PCB mounting.
This converter features a wide 4:1 input voltage range, accepting from 9V to 36V DC input, accommodating varying power supply conditions. The output voltage can be fine-tuned by ±10% using external resistors, allowing precise control according to system requirements.
Designed for harsh environments, it operates over a broad temperature range from -40°C to 75°C with derating above 60°C. The device also provides high reliability with a MTBF of 1,300,000 hours and includes built-in protections against over-temperature, over-voltage, overload, and short circuit scenarios, ensuring robust operation.
The converter has a compact footprint measuring 40.6mm in length and 10.2mm depth, with a shielded metal case incorporating an insulated baseplate, ensuring electromagnetic compatibility. It achieves high efficiency of approximately 89%, minimizing heat dissipation and energy losses in power conversion.
The TEN 30WIN series is widely used in battery-operated equipment, distributed power architectures, and industrial control systems. Input filters comply with EN 55022 Class A standards, and the product holds UL/cUL recognition for safety compliance.
High power density DC/DC encapsulated converter module. Wide input voltage range of 9 to 36V DC. Adjustable output voltage by ±10%. 1.5kV DC isolation voltage between input and output. Operating temperature range from -40°C to +75°C.
High efficiency up to 89%. Compact shielded metal case package. Equipped with multiple protections and standard pin-out.
Ideal for industrial electronics, communications, power supply distribution, and embedded system power management. Explore more TRACOPOWER DC/DC Converters and electronic power modules at EnvMart for varied industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TEN 30-2412WIN provides a stable output voltage of 12V DC with a maximum output current of 2.5A.
This unit accepts a wide input voltage range from 9V to 36V DC, allowing for flexibility in power supply conditions.
It has a typical efficiency of 89%, which helps minimize heat dissipation during operation.
The converter features an isolation voltage of 1.5kV DC between the input and output for safety.
The dimensions of this model are 40.6mm in length and 10.2mm in depth, making it compact for various applications.
It operates effectively over a temperature range from -40°C to 75°C, suitable for harsh environments.
This model includes built-in protections against over-temperature, over-voltage, overload, and short circuit scenarios.
The output voltage can be fine-tuned by ±10% using external resistors, allowing for precise control according to system requirements.
It is designed for PCB mounting, featuring a standard pin-out with 6 pins.
The TEN 30-2412WIN has a mean time between failures (MTBF) of 1,300,000 hours, indicating high reliability.
This converter is suitable for industrial electronics, communications, power supply distribution, and embedded system power management.
The TRACOPOWER TEN 30-2412WIN is manufactured in Taiwan.
