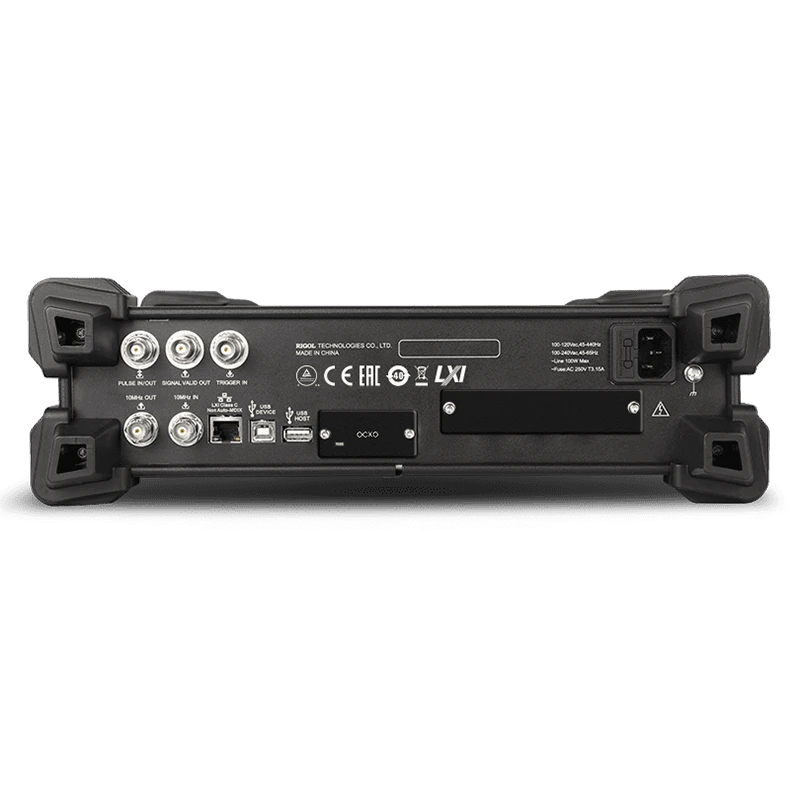

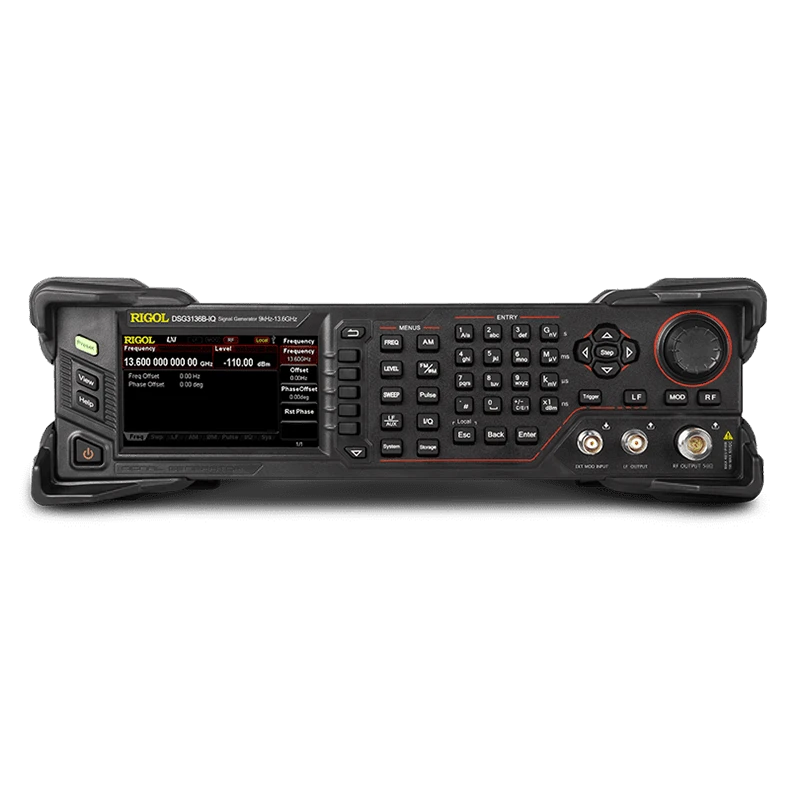

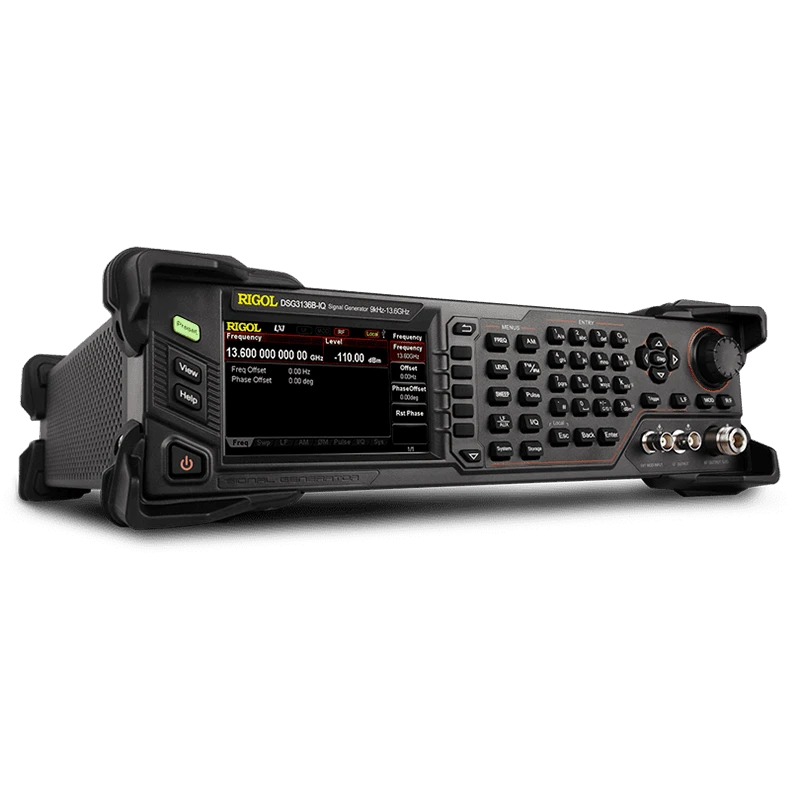

RIGOL DSG3000B Series RF Signal Generator | DSG3065B | DSG3065B-IQ | DSG3136B | DSG3136B-IQ
Model
Frequency Range
Amplitude Specification Range
SSB Phase Noise
Modulation Type
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 70 W typical, 100 W max |
| Display | 4.3-inch TFT LCD, 480×272 px |
| Frequency range | 9 kHz to 6.5 GHz / 13.6 GHz (model dependent) |
| Brand | Rigol |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to +70°C |
| Model | DSG3000B |
| Weight | 7.61 kg |
| Interfaces | LAN, USB, USB-GPIB (optional) |
| Form Factor | 2U rack-mountable |
| Dimensions (W × H × D) | 364 mm × 112 mm × 420 mm |
| Operating Altitude | Less than 3000 m |
| Internal Storage | 96 MB nom. |
| Frequency Resolution | 0.01 Hz |
| Product Condition | New |
| MPN | DSG3000B |
| Phase Noise | Less than equal to -116 dBc/Hz @ 1 GHz, 20 kHz offset typ. |
| Modulation Types | AM, FM, PM standard; I/Q optional |
| Amplitude Accuracy | Less than equal to 0.5 dB typ. (Less than 3.6 GHz), Less than equal to 1.5 dB (high bands) |
| Internal Reference Frequency | 10 MHz |
| Frequency Setting Time | Less than 10 ms typical |
| Output Amplitude Range | -130 dBm to +27 dBm |
| Harmonics CW Mode | Less than -30 dBc band dependent |
| Non-harmonic Spurious CW Mode | Less than -70 dBc typ. band dependent |
| Residual FM | Less than 10 Hz RMS typ. band dependent |
| Pulse Modulation On/Off Ratio | Greater than 70 dB (optional) |
| Reference Stability | 1 ppm standard, up to 5 ppb with OCXO (optional) |
| IQ Models Weight | 8.03 kg |
Key Features
Rigol DSG3000B RF Signal Generator designed for precise RF testing in industrial, laboratory, and communication applications.
- Frequency range from 9 kHz to 6.5 GHz or 13.6 GHz, model dependent.
- Output amplitude adjustable from -130 dBm to +27 dBm.
- Outstanding amplitude accuracy better than 0.5 dB typical.
- Low phase noise performance down to -116 dBc/Hz at 20 kHz offset.
- Standard AM, FM, PM analog modulation, and optional I/Q modulation.
- High-stability internal reference with OCXO optional.
- Fast frequency setting, less than 10 ms typical.
- Pulse modulation with >70 dB on/off ratio (optional).
- Remote control via LAN, USB, and USB-GPIB interfaces with SCPI support.
- 2U rack-mountable form factor suitable for system integration.
Product Description
The RIGOL DSG3000B Series RF Signal Generator, available in DSG3065B, DSG3065B-IQ, DSG3136B, and DSG3136B-IQ models, delivers stable and accurate RF signal generation for R&D laboratories, telecommunications testing, electronics manufacturing, and educational institutions. With frequency coverage from 9 kHz to 6.5 GHz or 13.6 GHz, depending on the selected model, the series is suitable for RF component testing, receiver calibration, wireless communication development, and automated production testing.
The RIGOL DSG3000B Series provides an output power range from −130 dBm to +27 dBm and typical amplitude accuracy better than 0.5 dB, supporting both low-level sensitivity measurements and high-power RF testing. Low phase noise—as low as −116 dBc/Hz at 1 GHz with a 20 kHz offset—helps generate clean and reliable signals for demanding RF applications.
- Frequency range from 9 kHz to 6.5 GHz or 13.6 GHz, depending on the model
- Wide output power range from −130 dBm to +27 dBm
- Typical amplitude accuracy better than 0.5 dB
- Low phase noise for stable, high-quality RF signal generation
- Supports AM, FM, and phase modulation
- Optional digital I/Q modulation on DSG3065B-IQ and DSG3136B-IQ models
- Suitable for continuous-wave and modulated RF signal testing
- 4.3-inch TFT LCD for clear configuration and monitoring
- LAN and USB connectivity for remote operation and data transfer
- Optional USB-GPIB support for automated test-system integration
- Designed for laboratory, manufacturing, education, and R&D environments
Typical applications include RF component characterization, receiver sensitivity testing, communication-system development, wireless-device validation, production-line testing, amplifier evaluation, and electronic equipment calibration.
Available Models: DSG3065B | DSG3065B-IQ | DSG3136B | DSG3136B-IQ
Explore more RIGOL RF signal generators and professional electronic testing instruments in the EnvMart Measuring & Testing Instruments category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DSG3000B offers a frequency range from 9 kHz to either 6.5 GHz or 13.6 GHz, depending on the specific model you choose.
The output amplitude of the DSG3000B can be adjusted from -130 dBm to +27 dBm, making it suitable for various testing requirements.
The amplitude accuracy is typically better than 0.5 dB for frequencies below 3.6 GHz and up to 1.5 dB for higher bands.
The DSG3000B supports standard AM, FM, and PM modulation, with optional I/Q modulation available.
The phase noise is as low as -116 dBc/Hz at 1 GHz with a 20 kHz offset, ensuring high-quality signal generation.
Yes, the DSG3000B can be controlled remotely via LAN, USB, and USB-GPIB interfaces, all supporting SCPI protocol.
The dimensions are 364 mm × 112 mm × 420 mm, and it weighs approximately 7.61 kg.
The typical power consumption is 70 W, with a maximum of 100 W.
The operating temperature range is from 0°C to 50°C, while storage temperatures can range from -20°C to +70°C.
You can purchase the Rigol DSG3000B directly through our website. For further inquiries, please contact our sales team.
