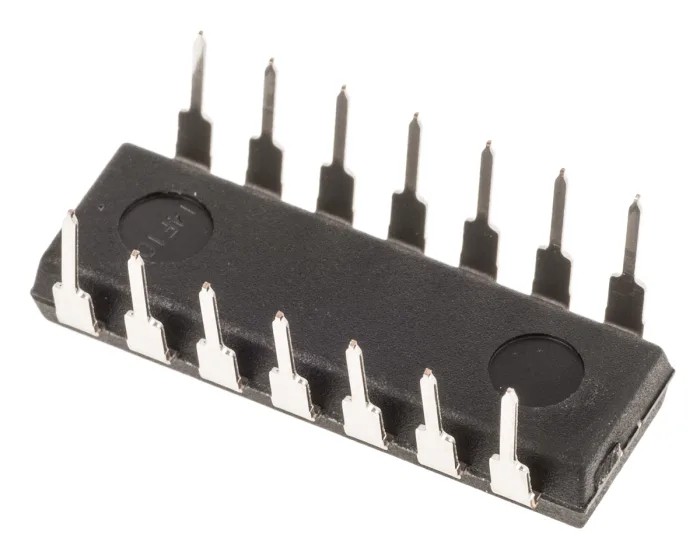

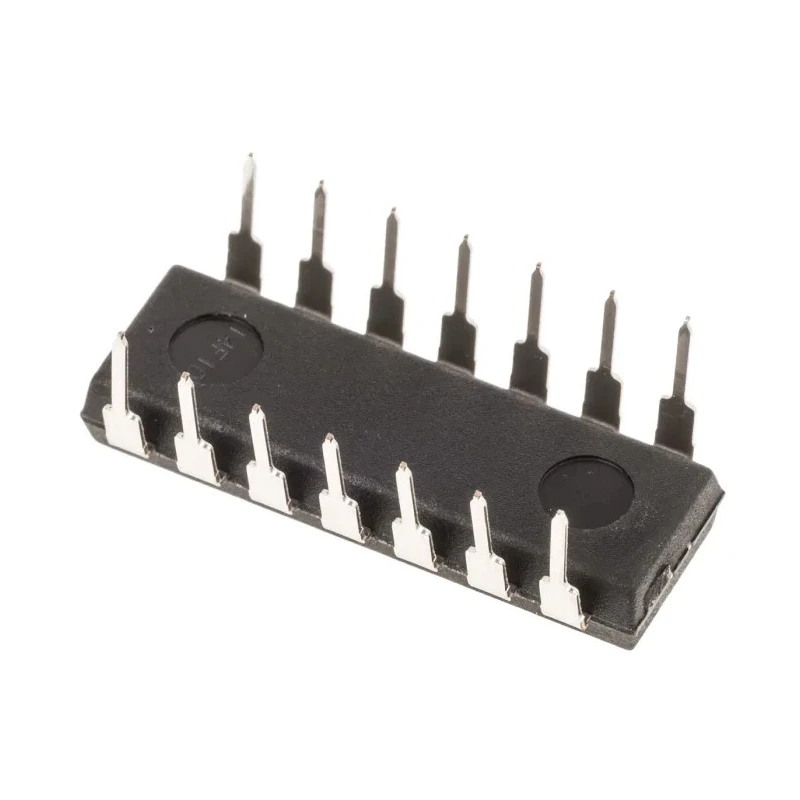

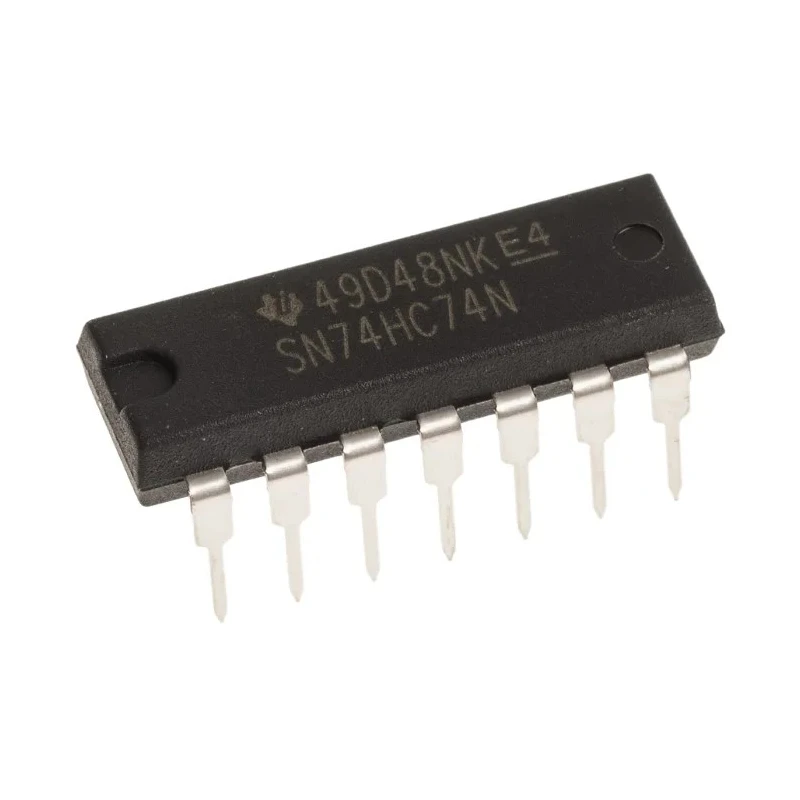

Texas Instruments 2 Flip Flop IC HC 14-Pin PDIP Operating Voltage 2 to 6V Clock Frequency 25MHz SN74HC74N

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 2 Flip Flop IC HC 14-Pin PDIP Operating Voltage 2 to 6V Clock Frequency 25MHz SN74HC74N

Name: Texas Instruments 2 Flip Flop IC HC 14-Pin PDIP Operating Voltage 2 to 6V Clock Frequency 25MHz SN74HC74N
Brand: Texas Instruments
SKU: 137717
Price: 2.04 USD
Availability: InStock



Category Flip Flop ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	SN74HC74N
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Series	SN74HC74N
Input Type	Single Ended
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Polarity	Inverting, Non-Inverting
Operating Voltage	2 to 6 V
Trigger Type	Positive Edge
Pin Count	14
Number of Elements per Chip	2
Maximum Supply Voltage	6V
Logic Family	HC
Minimum Supply Voltage	2V
Maximum Propagation Delay Time @ CL	50ns
Clock frequency	25MHz
Flip-Flop Type	D Flip-Flop

Key Features

This IC belongs to the HC logic family, suitable for CMOS input and output compatibility.
Features two D-type flip-flops with positive edge trigger and support inverting and non-inverting polarity.
Packaged in a through-hole 14-pin PDIP format for easy mounting.
Operates reliably across a temperature range of -40°C to 85°C.
Maximum propagation delay time at CL is 50ns for efficient switching.
Compatible with a wide range of industrial, electronic, and embedded system applications.
Designed without automotive standard compliance, optimized for general electronic component use.

Product Description

Texas Instruments SN74HC74N is a 2 Flip Flop IC from the HC logic family featuring a 14-pin PDIP package. It operates at a voltage range of 2 to 6 V with a clock frequency of 25 MHz, making it suitable for high-speed CMOS logic applications requiring low power consumption. This integrated circuit offers excellent compatibility with input and output CMOS devices.

The IC contains two D-type flip-flops with positive edge triggering and supports both inverting and non-inverting polarities providing versatile signal handling. With a maximum propagation delay time of 50ns at CL, it enables fast and reliable switching in various electronic circuits.

This device is through-hole mounted, making it convenient for use in prototype boards and custom PCB designs. Its compact dimensions of 19.3mm length and 4.57mm height allow for efficient PCB space utilization. The specified operating temperature range from -40°C to 85°C ensures durability and stable performance under various environments.

Common industrial, laboratory, and embedded system applications include signal storing, timing, and frequency control. This IC is an essential component in digital electronics for data synchronization, register storage, and control signal shaping.

This IC belongs to the HC logic family, suitable for CMOS input and output compatibility. Features two D-type flip-flops with positive edge trigger and support inverting and non-inverting polarity. Packaged in a through-hole 14-pin PDIP format for easy mounting.

Operates reliably across a temperature range of -40°C to 85°C. Maximum propagation delay time at CL is 50ns for efficient switching. Length and height dimensions are 19.3mm and 4.57mm respectively for compact PCB integration.

Compatible with a wide range of industrial, electronic, and embedded system applications. Designed without automotive standard compliance, optimized for general electronic component use. Explore the Texas Instruments range of flip-flop ICs and logic components on EnvMart for reliable electronic design solutions.
