Texas Instruments 8 Flip Flop IC LS, 3 State, 20-Pin PDIP SN74LS374N

Free Delivery in India | Lowest Global Shipping Charges

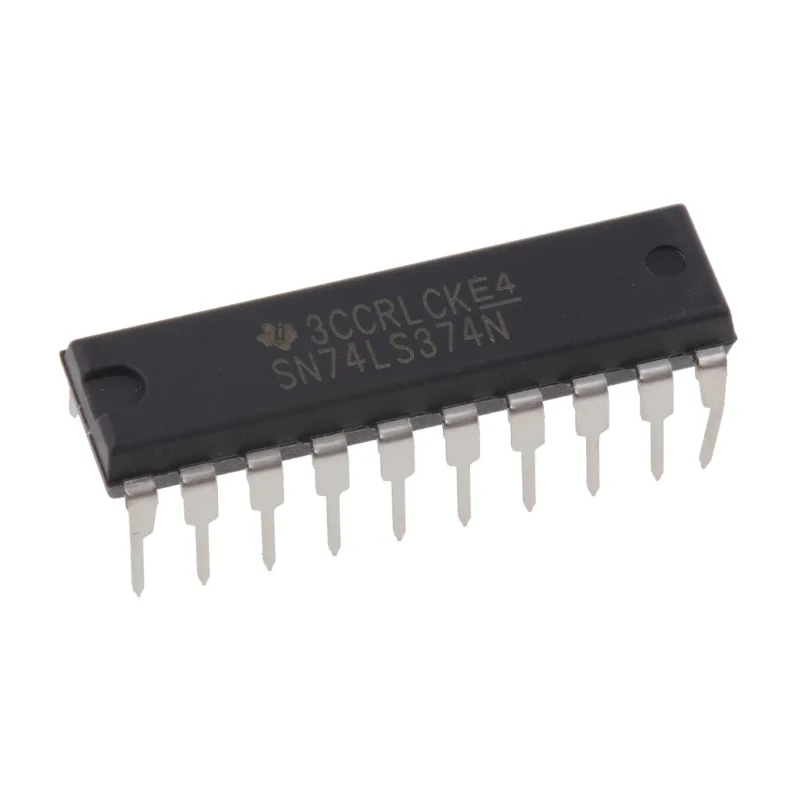

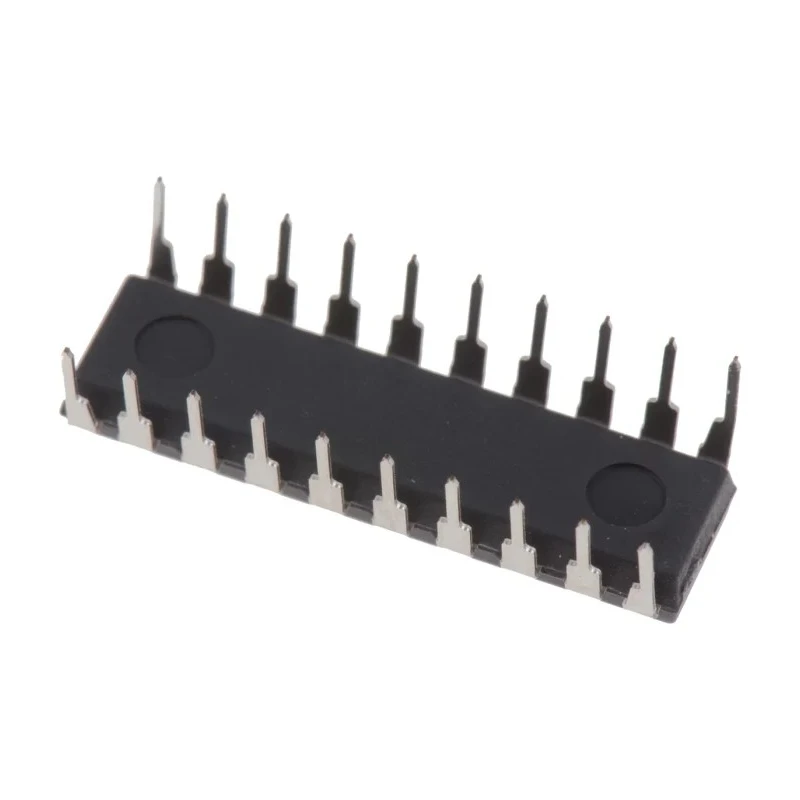

Texas Instruments 8 Flip Flop IC LS, 3 State, 20-Pin PDIP SN74LS374N

Name: Texas Instruments 8 Flip Flop IC LS, 3 State, 20-Pin PDIP SN74LS374N
Brand: Texas Instruments
SKU: 154277
Price: 1.7 USD
Availability: InStock



Category Flip Flop ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	24.33mm
Model	SN74LS374N
Mount Type	Through Hole
Output type	3 State
Series	SN74LS374N
Input Type	Single Ended
Maximum Operating Temperature	70°C
Package Type	PDIP
Minimum Operating Temperature	0°C
Polarity	Non-Inverting
Trigger Type	Positive Edge
Standards/Approvals	EN 61340-5-1
Pin Count	20
Number of Elements per Chip	8
Maximum Supply Voltage	5.25V
Logic Family	LS
Minimum Supply Voltage	4.75V
Maximum Propagation Delay Time @ CL	28ns
Clock frequency	50MHz
Flip-Flop Type	Type D

Key Features

The device features 8 elements of type D flip-flops integrated in a PDIP 20-pin package.
It supports a clock frequency of up to 50 MHz ensuring high-speed data processing.
The output type is 3-state with single-ended inputs providing flexible interfacing options.
Operating voltage ranges from 4.75V to 5.25V suitable for standard digital circuits.
Designed for through-hole mounting and rated for operating temperatures between 0°C to 70°C.
Maximum propagation delay time at capacitive load is 28ns to optimize timing precision.
The product complies with EN 61340-5-1 standard ensuring reliable industrial use.
Polarity is non-inverting with positive edge triggering for reliable data capture.

Product Description

Texas Instruments SN74LS374N is a low power Schottky logic 8 flip flop IC that operates on the LS logic family technology. This device integrates eight D-type flip-flops with 3-state outputs fabricated in a 20-pin PDIP package designed for through-hole mounting.

The SN74LS374N supports a clock frequency up to 50 MHz and features non-inverting polarity with a positive edge trigger, making it ideal for digital circuits requiring controlled data latching and buffering.

Operating voltage range is between 4.75 V and 5.25 V, with a maximum propagation delay time of 28 ns at a capacitive load which guarantees accurate and timely data propagation for industrial and electronic applications.

This product is rated for operation within a temperature range from 0°C to 70°C, ensuring stable performance under various environmental conditions. It also meets the EN 61340-5-1 standard to assure compliance with industrial electrostatic discharge protection requirements.

The compact size of 24.33 mm length and 4.57 mm height allows for seamless design integration on populated circuit boards. The 3-state output capability enables bus-oriented applications where multiple devices share data lines.

This IC is extensively used in applications such as data storage, data transfer, digital processing, and control systems within industrial, automation, and electronic manufacturing sectors.

The device contains 8 D-type flip-flops with 3-state outputs for versatile digital logic design. Supports clock frequencies up to 50 MHz for fast signal processing. Non-inverting polarity with positive edge triggering enhances data integrity.

Operating voltage range between 4.75 V and 5.25 V suitable for standard digital systems. Complies with EN 61340-5-1 electrostatic discharge standards for enhanced durability. Through-hole mount package type (PDIP) with 20 pins for easy installation.

Operating temperature range of 0°C to 70°C ensures stable performance. Compact dimensions with length of 24.33 mm and height of 4.57 mm. Browse more additions in Flip Flop ICs and related semiconductor components at EnvMart for reliable electronics system builds.
