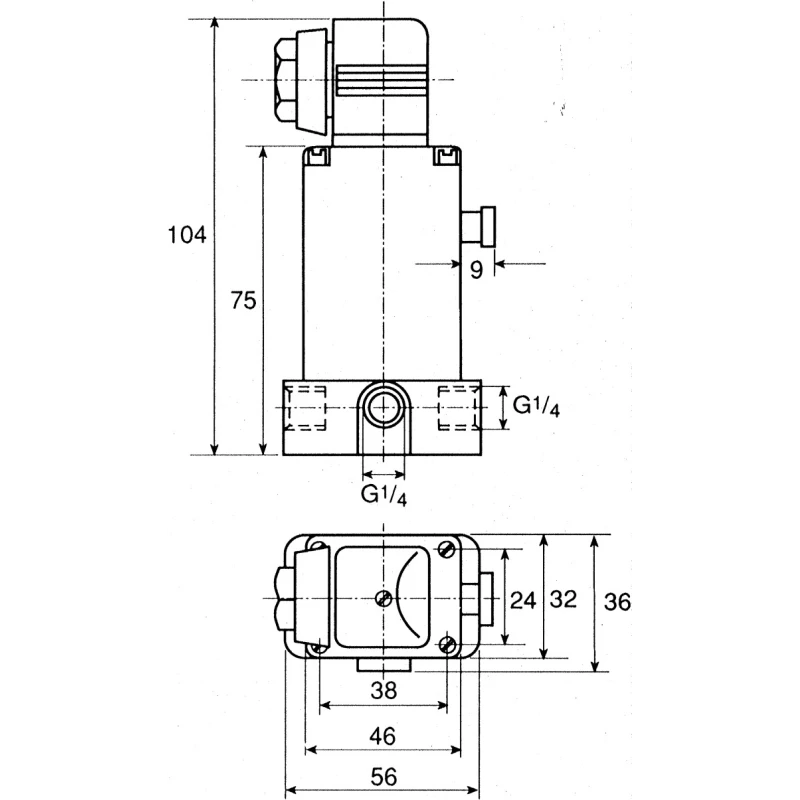

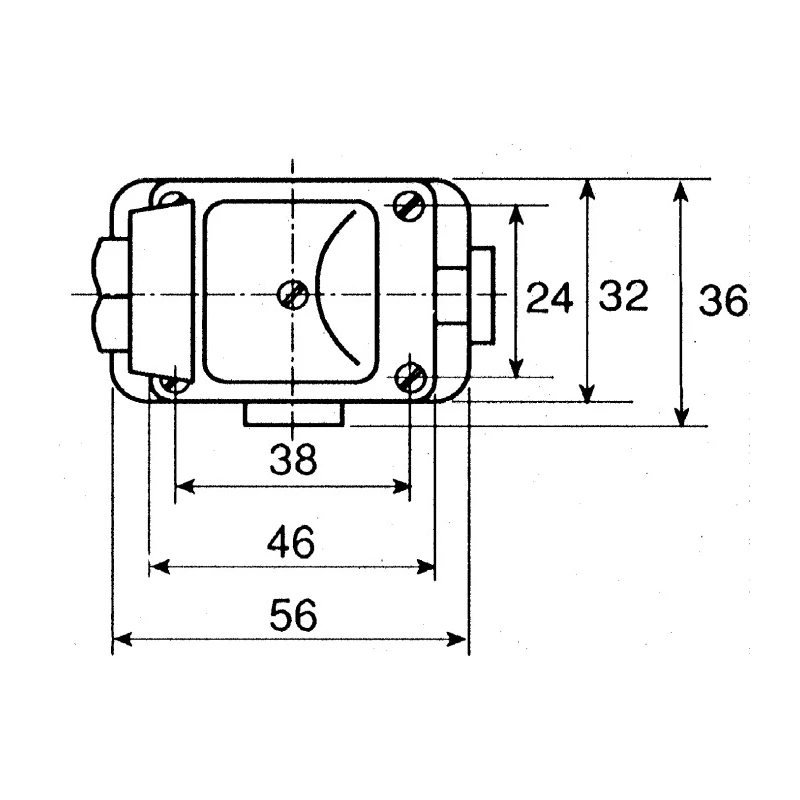

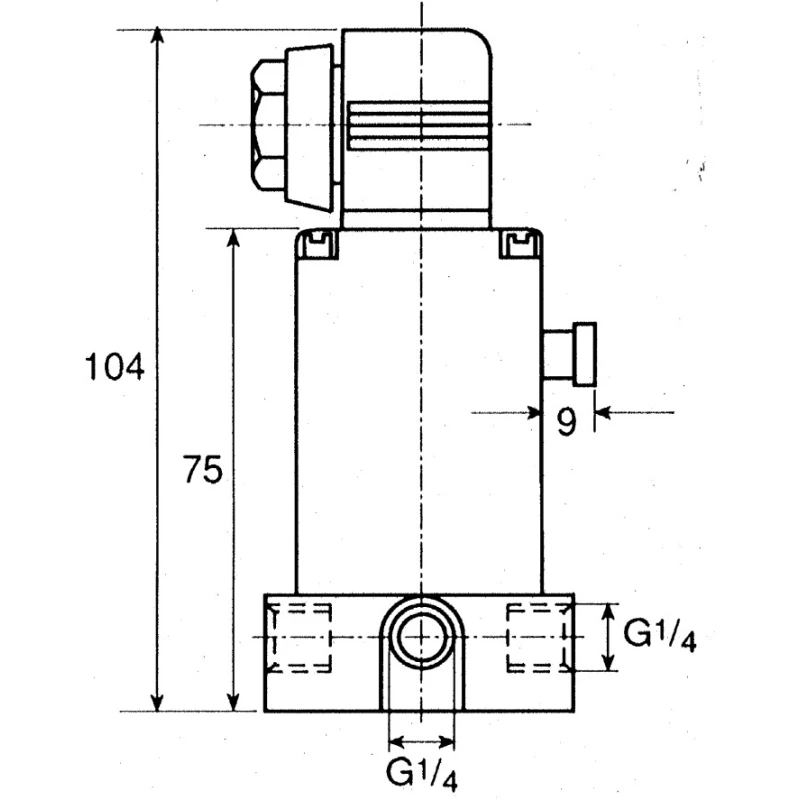

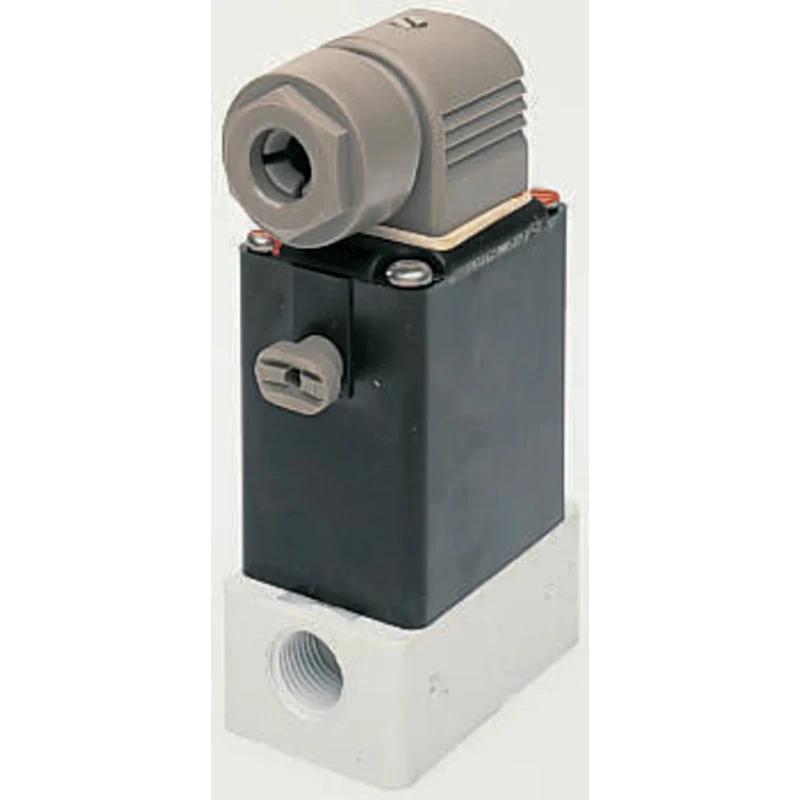

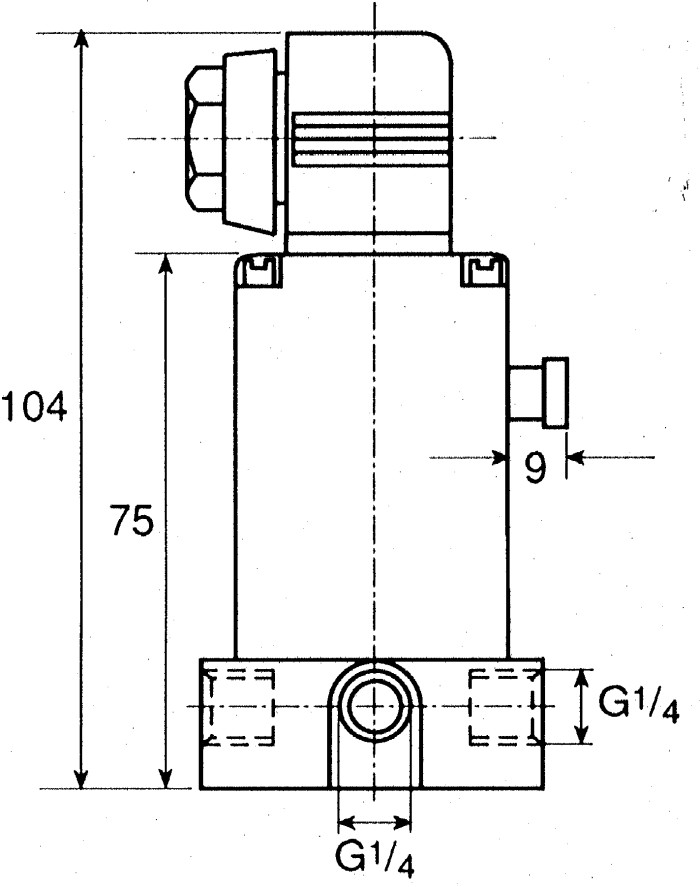

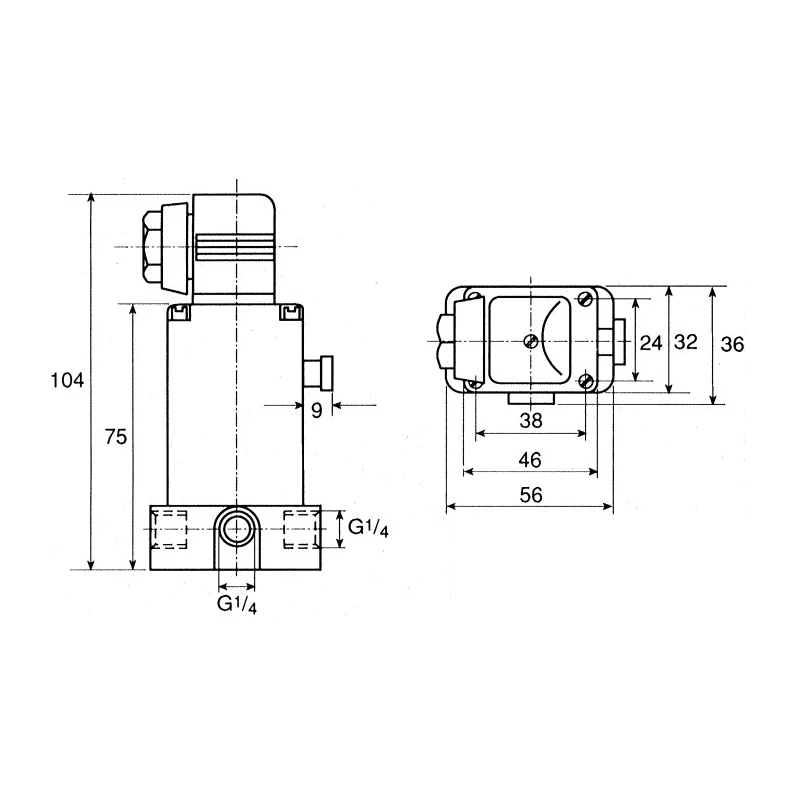

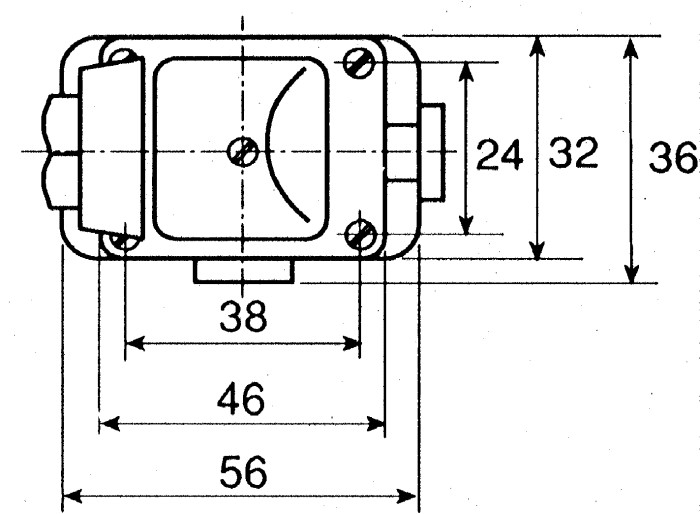

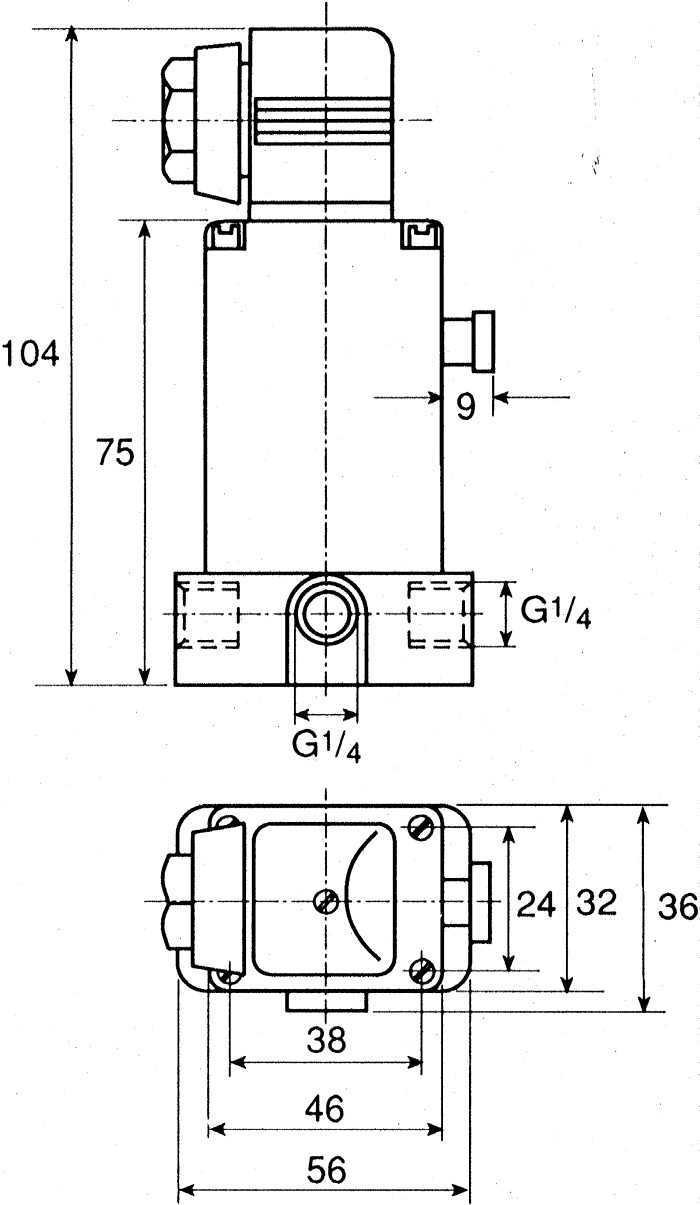

Burkert Solenoid Valve 2 Port Normally Closed Threaded 230V AC 1/4 in G Inlet with 6.35 mm Outlet Polypropylene Body 049969

Burkert 049969 solenoid valve is a high-quality 2 port, normally closed valve designed for industrial fluid control applications. It operates on 230V AC and features threaded inlet and outlet ports sized 1/4 inch G and 6.35 mm, respectively, supporting secure and leak-free pipe connections.

The valve body is made from durable polypropylene suitable for aggressive media including alkaline and acidic substances. With a maximum operating pressure of 4.5 bar and a fluid temperature range of -30 to +80°C depending on sealing (EPDM or FKM), this valve meets demanding environmental conditions.

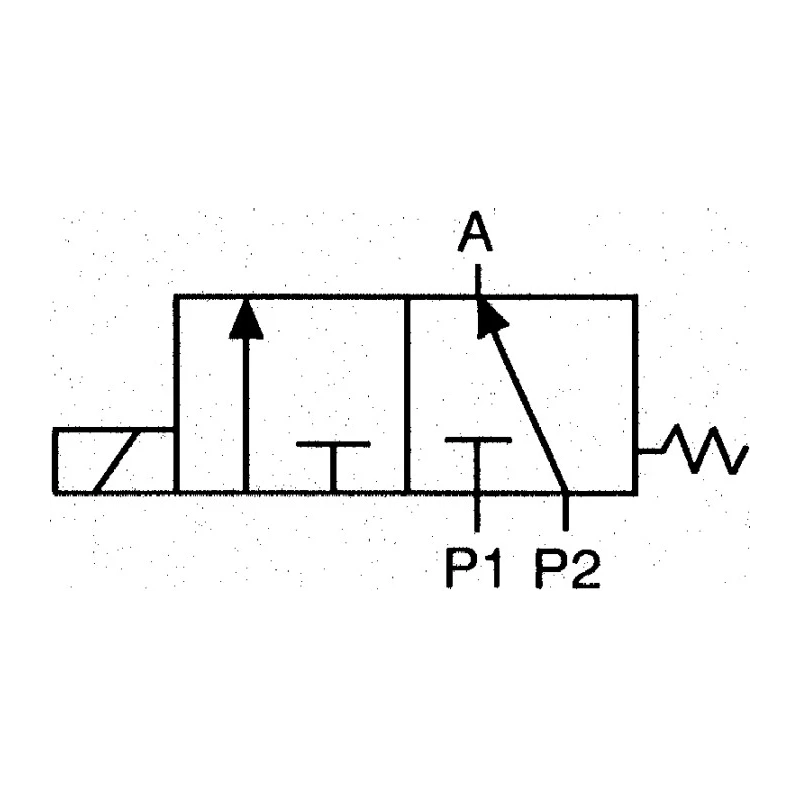

This series 0124 valve includes a servo assist mechanism, enabling fast response times with opening and closing durations of 15 ms and 20 ms. The lockable manual override ensures maintenance safety and operational convenience, while the 3-pin DIN connector rated to IP65 gives flexibility for positioning and robustness against ingress.

Power consumption is nominally 8W with a duty cycle suited for intermittent operation at 40% per 30-minute interval. The valve is compatible with alkalis, acids, and bleaching agents, making it versatile for chemical processing, water treatment, agriculture, and mechanical fluid power systems.

Manufactured in Germany, the valve meets high standards of quality and reliability. BSP parallel ports allow easy integration with standard RS stainless steel compression fittings.

The valve includes a polypropylene body resistant to aggressive media. Features a 5 mm orifice diameter enabling controlled fluid flow. Designed for industrial, laboratory, HVAC, manufacturing, and water treatment applications.

Maximum operating temperature is 55°C with suitable seals. Maximum pressure tolerance of 4.5 bar for a wide range of fluid control demands. Power consumption of 8W coil with 30VA in-rush current. Intermittent operation duty cycle extends valve and coil life.
