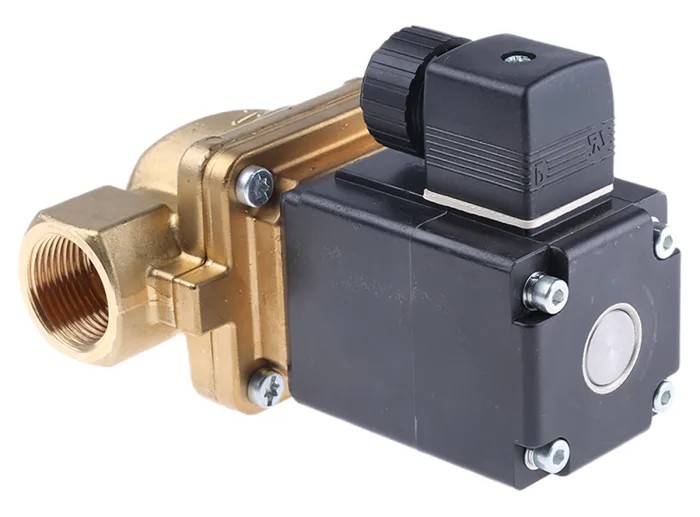

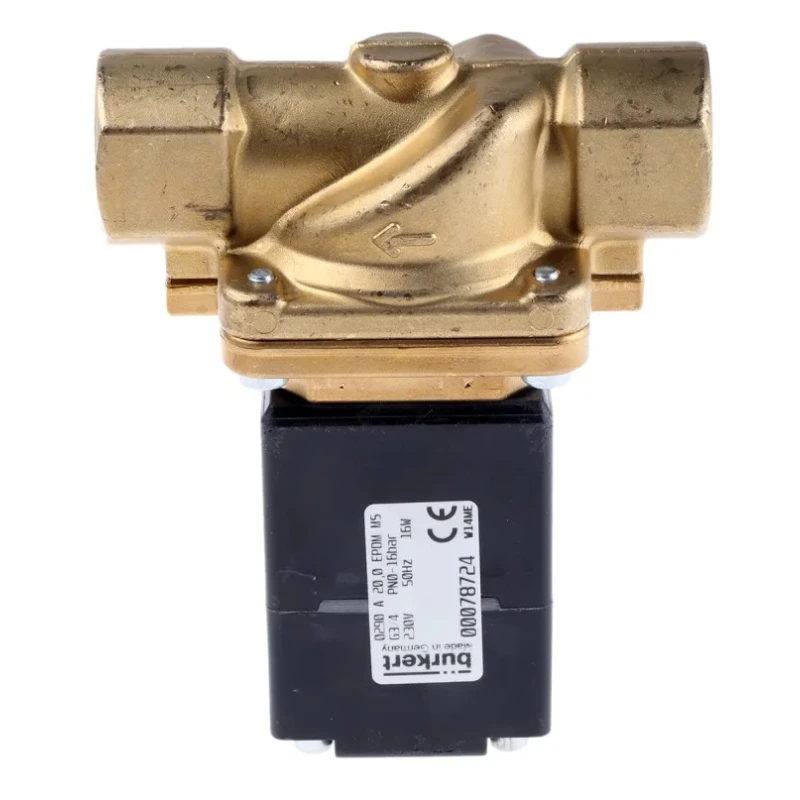

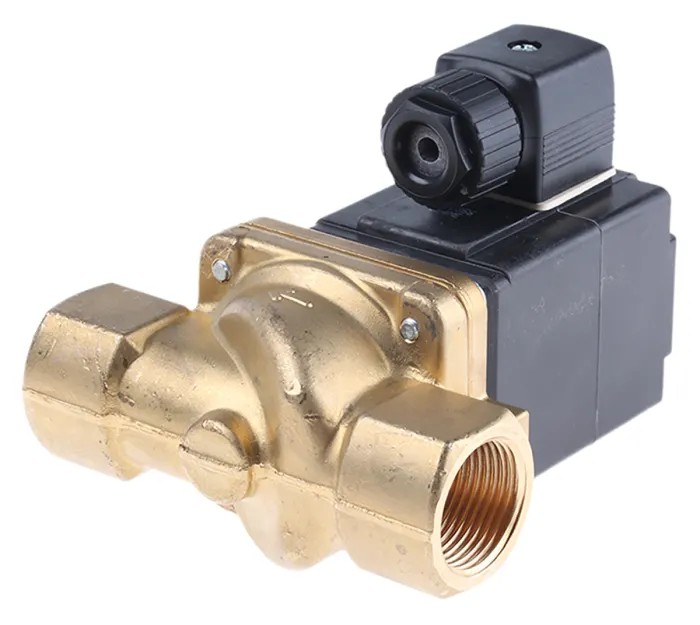

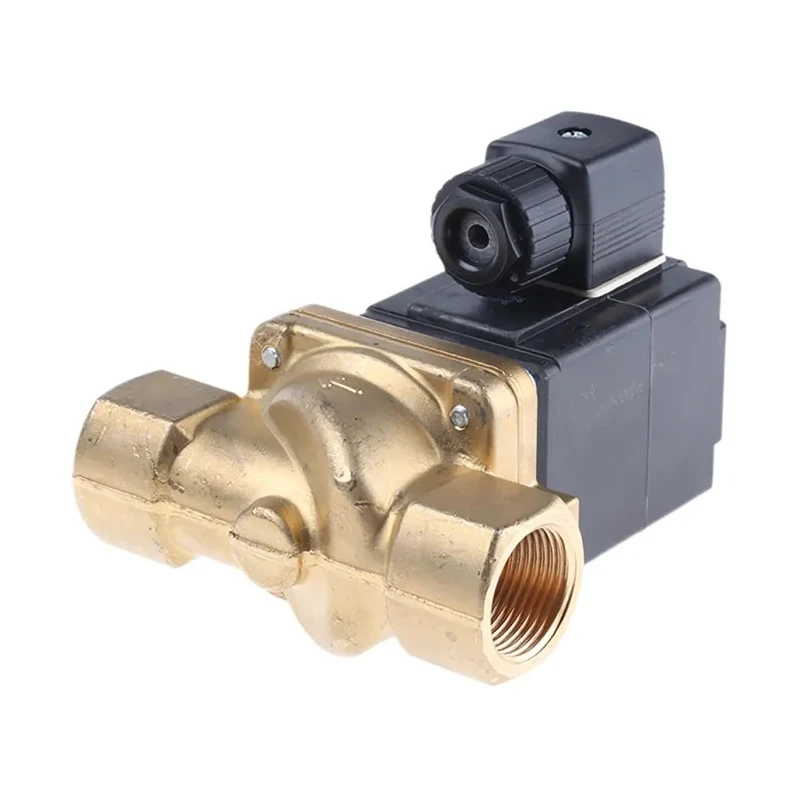

Burkert Brass Body Solenoid Valve 2 Port NC 230V AC, Orifice Diameter 20mm, Max Pressure 16 bar 078724

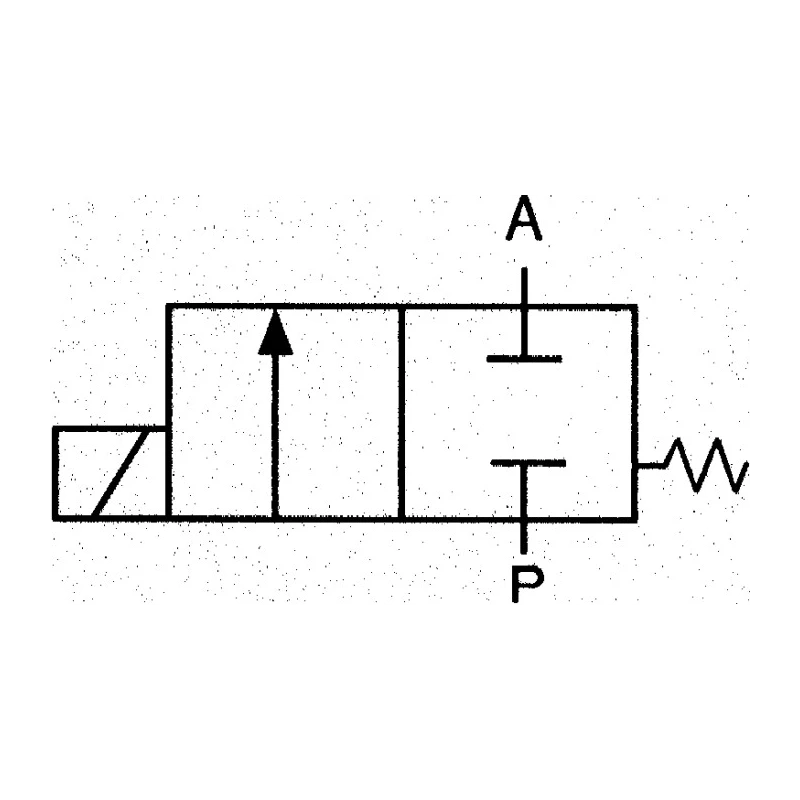

Burkert 078724 solenoid valve is a high-performance, 2-port normally closed valve designed with a brass body, offering reliable operation at 230V AC. Its 20mm orifice diameter and maximum pressure rating of 16 bar make it suitable for controlling the flow of gases and liquids in various industrial environments.

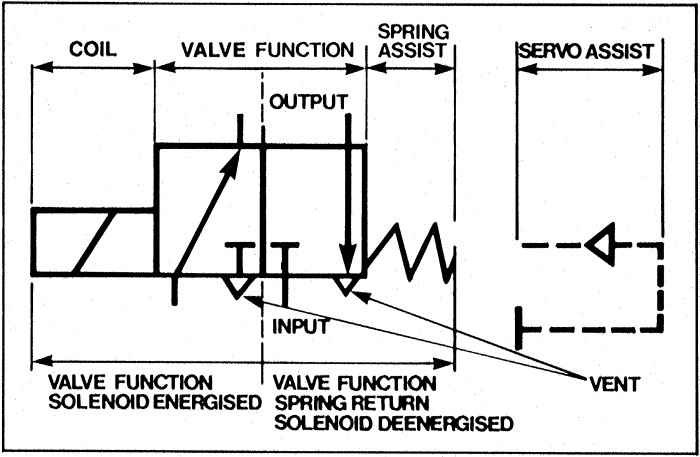

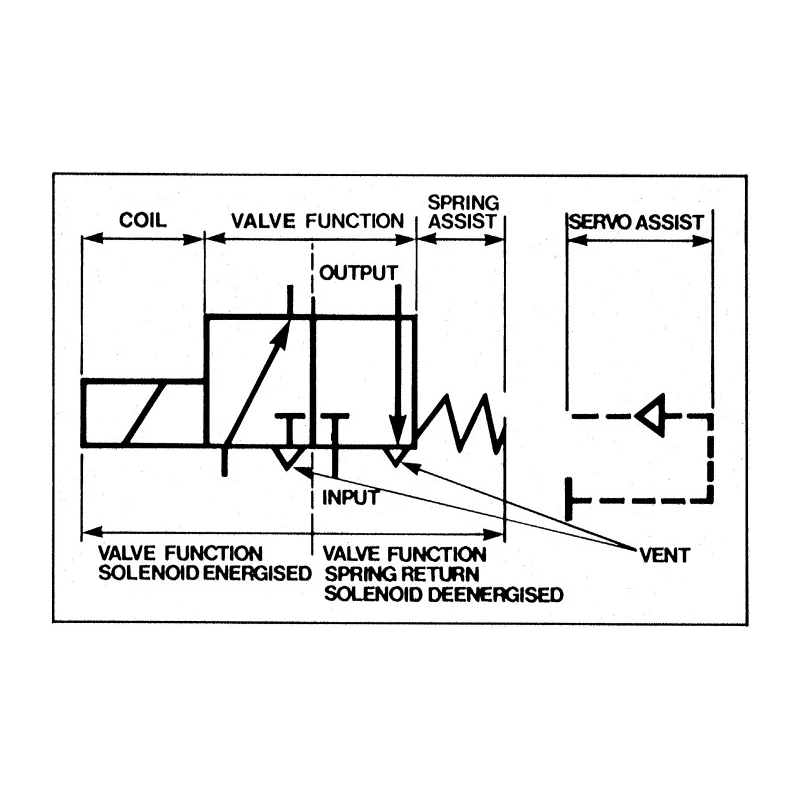

The valve uses a servo-assisted diaphragm system with a damped design, delivering quiet closing and prolonged component life. The integrated 'soft-kick' function ensures gentle opening motions without material stress. Opening and closing times are precisely controlled at a maximum of 250 milliseconds and 2000 milliseconds, respectively.

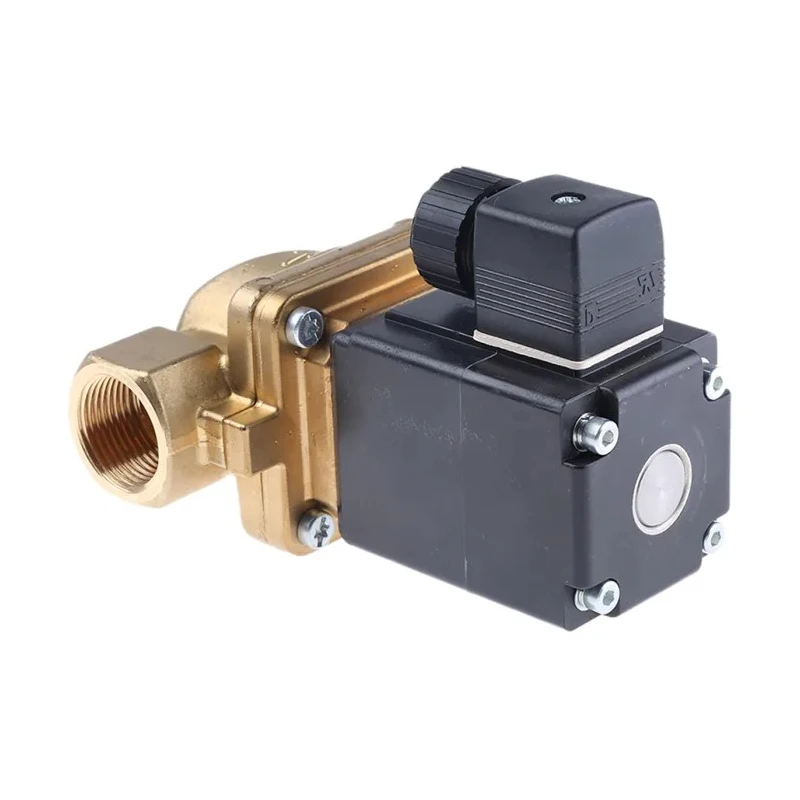

This device supports a broad operating temperature range from 0°C to 55°C and includes a 3-pin DIN connector that can be rotated through 360 degrees in 90-degree increments for flexible installation. Its BSP parallel ports accept compression fittings commonly used in plumbing and fluid power installations.

Its flow factor Kv is 5 m³/h, enabling efficient flow control in domestic water supply systems and neutral oil-free fluids and gases. Additionally, the valve features zero head pressure capability, expanding its adaptability in various piping conditions. The valve’s chemical-resistant epoxy-moulded solenoid coils provide durability in challenging environments.

The valve body is constructed from brass, providing excellent mechanical strength and corrosion resistance. Maximum operating pressure reaches up to 16 bar, suitable for high-pressure pipelines. Servo assist technology ensures reliable valve action without the need for differential pressure.

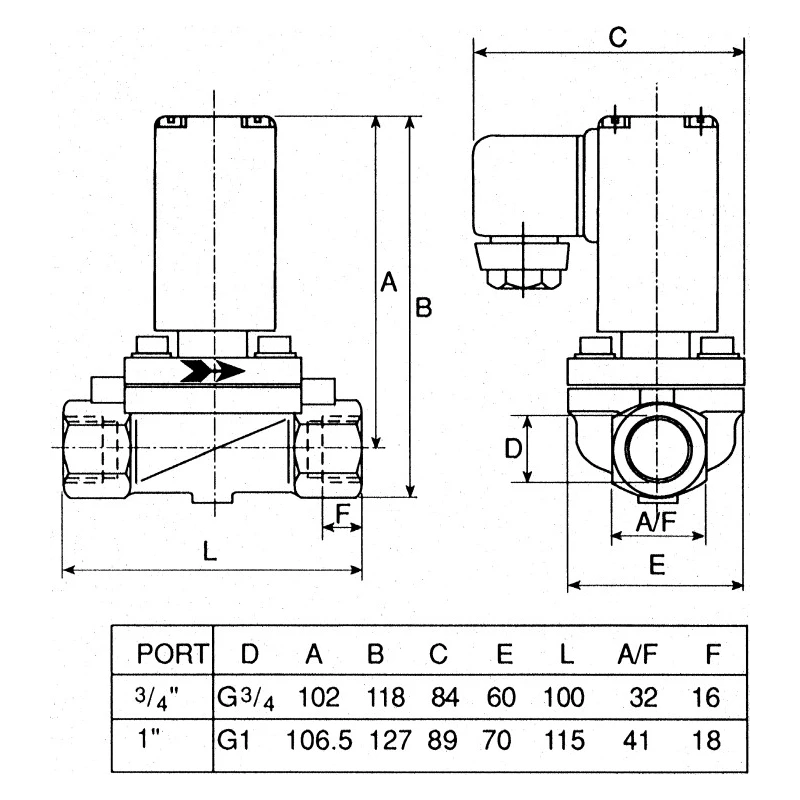

Operating temperature limits range from 0°C minimum to 55°C maximum, suitable for typical industrial HVAC and fluid systems. Compact design fits standard 3/4 inch G female threads for easy integration. IP65 rating ensures protection against dust and water ingress.

Manufactured in Germany, assuring high quality and precision engineering.

This Burkert Solenoid Valve is widely used in industrial and commercial applications including water treatment, HVAC systems, manufacturing processes, and fluid power management. Its robust construction and precise operation make it a reliable component for automated fluid control systems.
