JAE Waterproof Right Angle Through Hole PCB Header 18 Contacts 2.5 mm Pitch 2 Row Shrouded MX23A

Free Delivery in India | Lowest Global Shipping Charges

JAE Waterproof Right Angle Through Hole PCB Header 18 Contacts 2.5 mm Pitch 2 Row Shrouded MX23A



Category PCB Header Brand JAE Condition New

Specifications

Country of Origin	Japan
Voltage	1000V
Brand	JAE
Orientation	Right Angle
Current	3A
Model	MX23A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	MX23A
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	18
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Designed with shrouded housing for waterproof protection.
Features 18 contacts arranged in 2 rows for compact connectivity.
Operates safely up to 125°C and -40°C minimum temperature.
Constructed from polybutylene terephthalate housing with copper alloy contacts.
Tin-plated contact surfaces ensure reliable solder termination.
Right angle orientation optimizes board mounting space.
Supports current rating of 3A and voltage up to 1000V.
Mount type is through hole ensuring strong PCB attachment.

Product Description

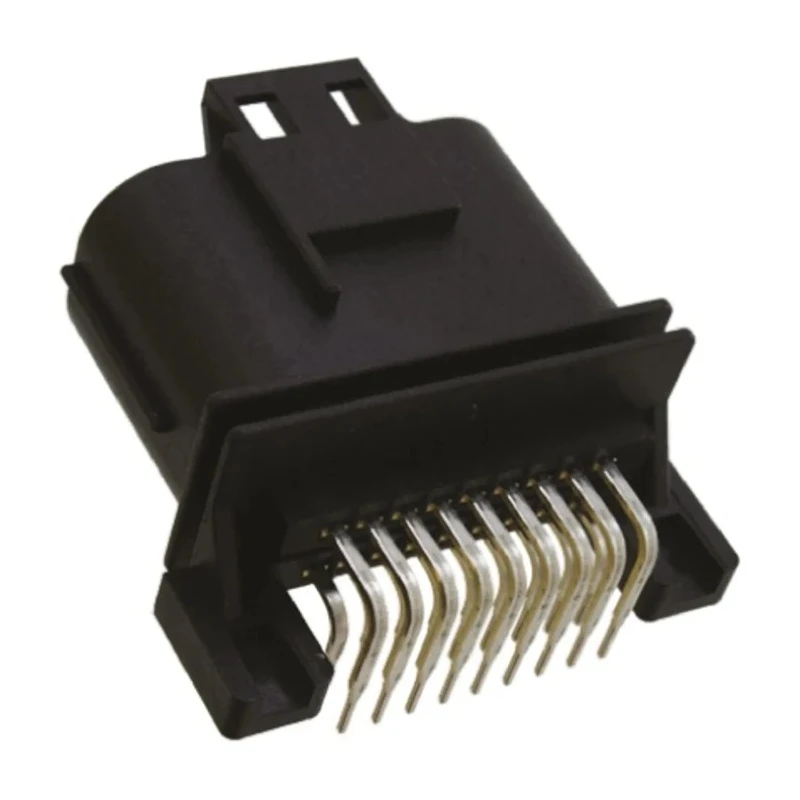

JAE MX23A18NF1 is a waterproof right angle through hole PCB header connector designed for wire-to-board applications requiring reliable and sealed connectivity.

This 18-contact connector features a 2.5 mm pitch with two rows arranged in a compact and shrouded form, providing protection against water ingress when mated with appropriate sockets.

The housing is made from polybutylene terephthalate which ensures mechanical durability and heat resistance, rated for operation between -40°C and 125°C.

Each contact is crafted from high-quality copper alloy with tin plating to promote excellent solderability and corrosion resistance. The connector supports a current rating of 3 amperes and voltage up to 1000 volts, suitable for various electronic applications.

With a right angle orientation and through-hole mount, the header offers secure, low-profile mounting on printed circuit boards. Its waterproof design makes it ideal for use in automotive systems, motorcycles, and other equipment requiring environmental sealing.

Shrouded housing achieves waterproof protection when mated. Low profile design with 18 contacts in 2 rows at 2.5 mm pitch. High temperature resistance from -40°C to 125°C. Robust construction with polybutylene terephthalate and copper alloy contacts.

Right angle orientation facilitates flexible PCB integration. Rated for 3A current and 1000V voltage applications. Through hole mount ensures strong mechanical stability. Manufactured in Japan ensuring premium quality. Suitable for demanding automotive and waterproof equipment applications.

Includes mounting bosses for precise PCB positioning. This product belongs to the JAE MX23A series, well known for waterproof PCB connectors used widely in industrial and automotive sectors. Explore more high-quality PCB Header connectors within EnvMart’s Electronics Components category to meet diverse design and manufacturing requirements.
