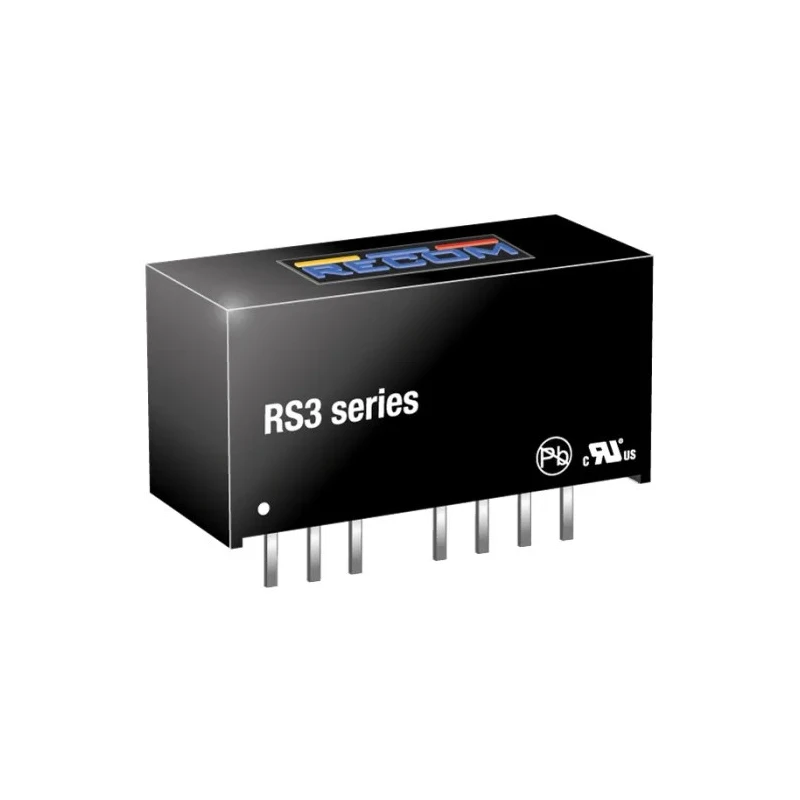

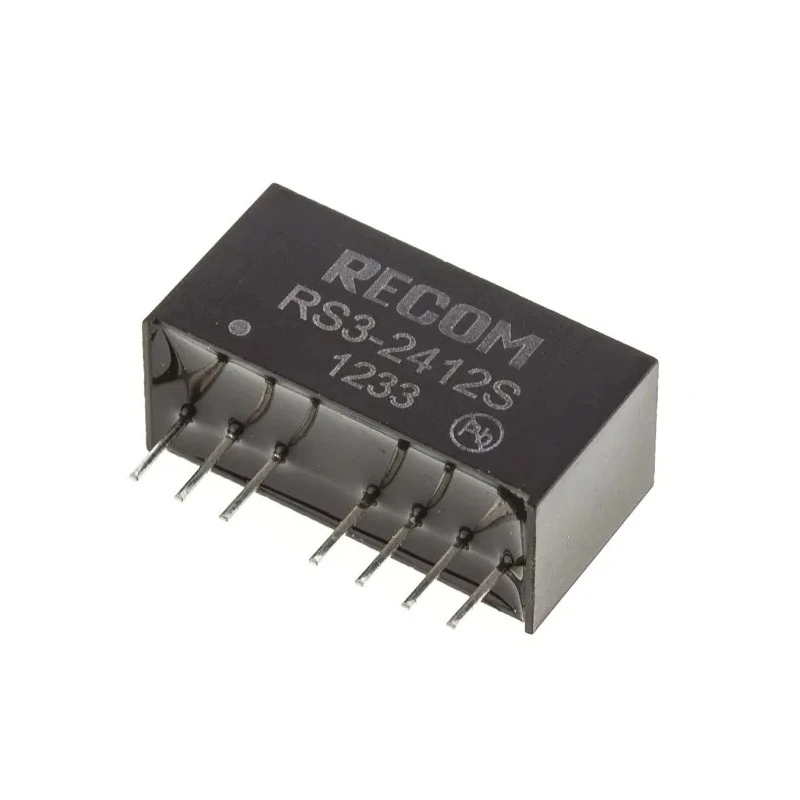

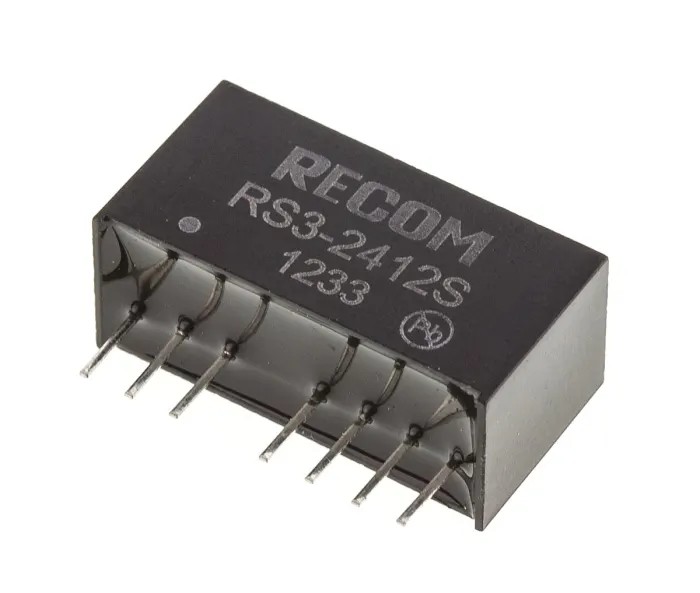

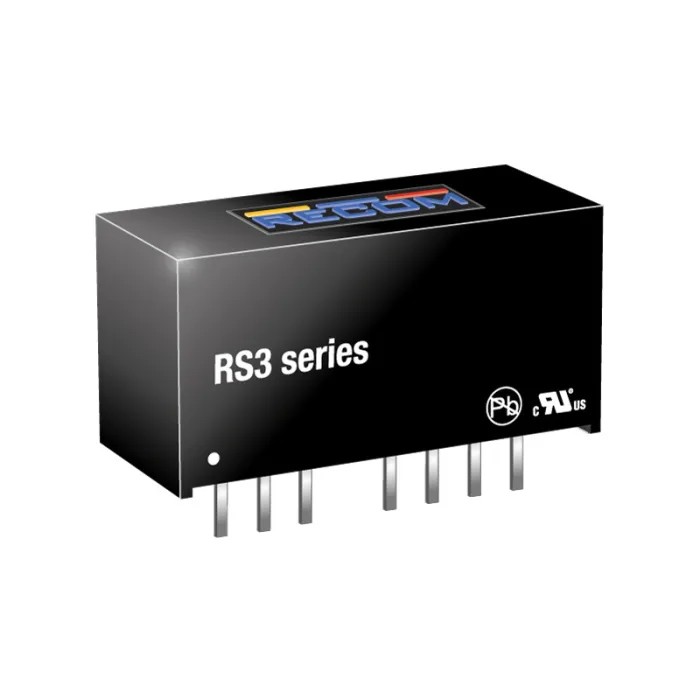

Recom DC/DC Converter Single Output SIP Package 12V DC 250mA 3W 18V-36V Input RS3-2412S

Recom RS3-2412S is a robust and efficient DC/DC converter designed for stepping down DC voltage from 18V-36V input range to a stabilized 12V DC output at 250mA current and 3W power. Packaged in a compact SIP housing, it facilitates easy through-hole PCB mounting which enhances mechanical stability in high vibration environments.

This converter achieves an efficiency of 83%, significantly reducing wasted energy as heat, which is critical for energy-efficient industrial applications. It operates reliably across a broad temperature range from -40°C to 85°C, making it suitable for demanding applications in industrial automation, lighting control systems, and renewable energy installations.

Additional features include a high isolation voltage rating of 500V AC which provides excellent protection against electrical surges and interference, crucial for sensitive electronic equipment in hospital or laboratory environments. The device maintains low ripple and noise levels at 50mV peak-to-peak, ensuring the output voltage remains stable and clean.

With a mean time between failure (MTBF) of 745,000 hours, this RS3 series converter assures long-term reliability and minimal downtime. It carries RoHS and UR certifications, confirming adherence to environmental and safety standards.

This single output converter is ideally suited for electronics systems requiring compact, stable, and efficient power conversion solutions, including lighting systems, medical devices, and renewable energy equipment. The SIP package integrates multiple components into a small footprint, maximizing board space efficiency.

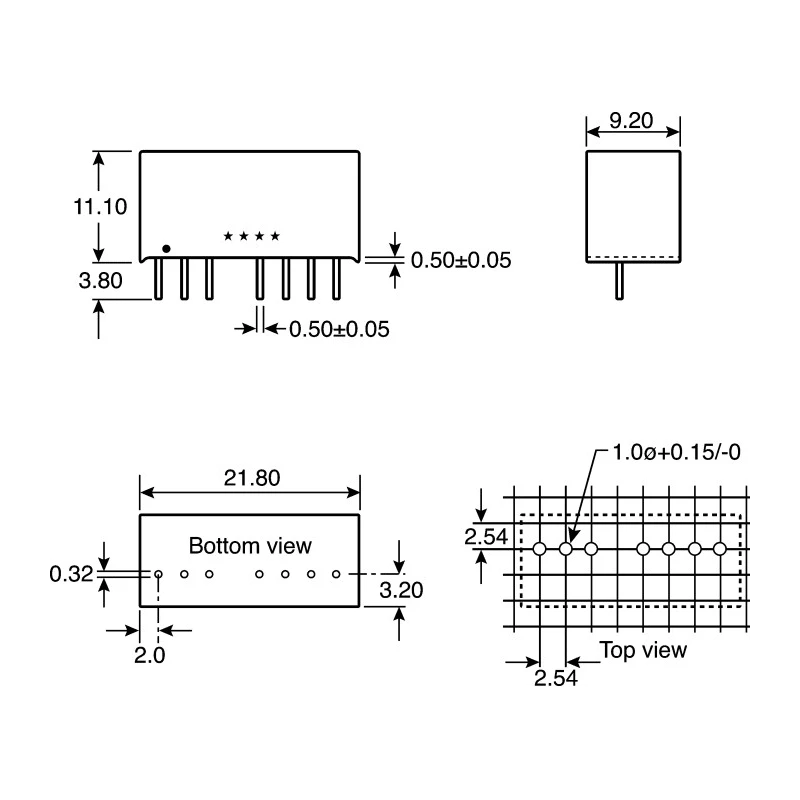

Compact SIP package with 21.8mm x 9.2mm x 11.1mm size. High 83% efficiency for reduced heat dissipation. Robust through-hole mounting for secure installation. Wide temperature tolerance from -40°C to +85°C. 500V AC input to output isolation for surge protection.

Low ripple noise output at 50mV peak to peak. Extended reliability with 745,000h MTBF. RoHS and UR certified for quality compliance. Ideal for industrial, medical, and renewable energy applications. Explore more advanced power solutions in the DC/DC Converter category on EnvMart for all your industrial and electronic component needs.
