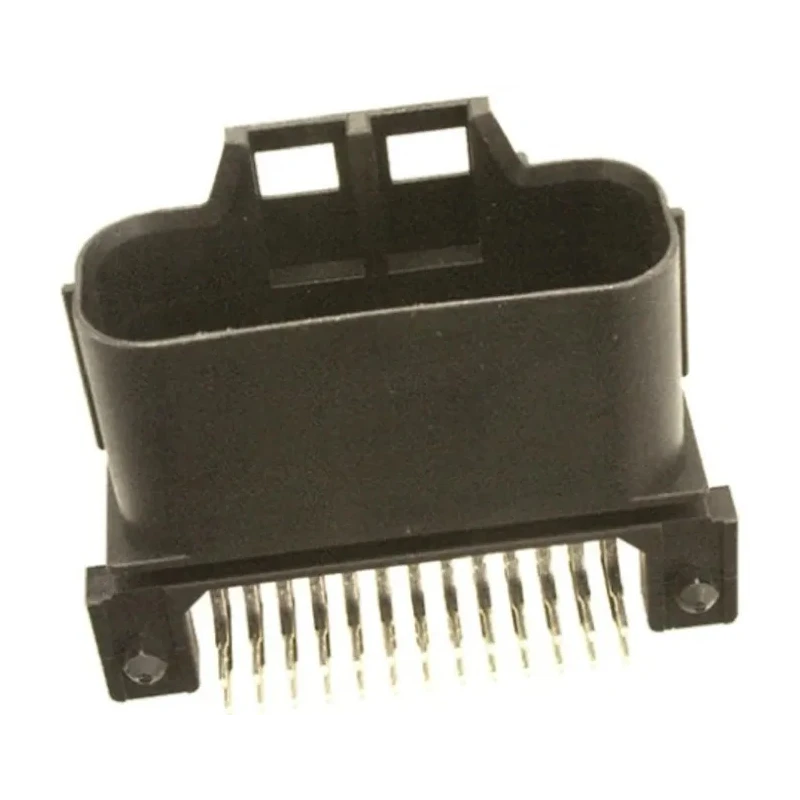

JAE MX23A Series Right Angle Through Hole PCB Header 26 Contacts 2.5 mm Pitch 2 Row Shrouded MX23A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | JAE |
| Orientation | Right Angle |
| Current | 3A |
| Model | MX23A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | MX23A |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 26 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The shrouded design enhances protection and secure mating.
- Low profile with a board mounting height of 18.3 mm for compact PCB layouts.
- Made from durable Polybutylene Terephthalate housing material ensuring mechanical strength.
- Operates reliably between -40°C to 125°C suitable for harsh environments.
- Features copper alloy contacts plated with tin for superior electrical conductivity.
- Current rating of 3A and voltage rating of 1000V meet demanding electronic applications.
- Right angle orientation with through hole mount ensures firm PCB attachment.
- Includes mounting bosses for precise positioning on printed circuit boards.
Product Description
JAE MX23A is a series of right angle through hole PCB headers featuring 26 contacts arranged in 2 rows with a 2.5 mm pitch. These connectors are manufactured with shrouded housings made of Polybutylene Terephthalate offering mechanical robustness and waterproof protection when mated.
The connectors operate efficiently at a current of 3A and voltage of 1000V. They can reliably perform in operating temperature ranges from -40°C to 125°C, making them suitable for a variety of industrial and automotive environments where waterproofing is essential.
The MX23A series features tin-plated copper alloy contacts and a solder-type termination ensuring superior electrical contact and durability. The right angle orientation and through hole mount type provide stable mechanical and electrical connection with PCB boards.
To aid assembly, these headers include mounting bosses for accurate placement. Their low profile height of 18.3 mm minimizes space usage on boards. These features make the MX23A series ideal for electronic wire-to-board applications requiring waterproof and reliable electrical connectors, such as automotive, motorcycle, and waterproof devices.
The shrouded design provides waterproof connection when mated with the matching MX23A sockets. Low profile design with minimal mounting height helps conserve PCB space. Housing material ensures resistance to mechanical stress and environmental conditions.
The connectors can withstand extreme temperatures from -40°C up to 125°C. Up to 26 contacts arranged in 2 rows allow for multiple connection points. Use cases include automotive electronics, motorcycles, and other waterproof electrical equipment.
Solder termination offers secure and stable electrical contacts on PCB. Right angle orientation allows for optimized wire routing on boards. Mounting bosses provide precise connector positioning and assembly aid.
These JAE MX23A series PCB Headers support demanding industrial and automotive applications requiring durable, waterproof wire-to-board connectors. The product is designed and built in India according to industry standards. Explore more PCB header connectors and related electronics components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3A and a voltage rating of 1000V, making it suitable for demanding electronic applications.
It operates reliably within a temperature range of -40°C to 125°C, suitable for harsh environments.
The MX23A series features a pitch of 2.5 mm and includes 26 contacts arranged in 2 rows.
This unit utilizes a through hole mount type, providing stable mechanical and electrical connections with PCB boards.
The housing is made from Polybutylene Terephthalate, ensuring mechanical strength and resistance to environmental conditions.
It features a solder termination type, which ensures secure and stable electrical contacts on the PCB.
Yes, the shrouded design of this model enhances protection and provides waterproof connection when mated with matching sockets.
The orientation of this model is right angle, which allows for optimized wire routing on printed circuit boards.
The contacts are made of tin-plated copper alloy, ensuring superior electrical conductivity.
Yes, it includes mounting bosses for precise positioning and assembly on printed circuit boards.
This model is ideal for electronic wire-to-board applications, particularly in automotive, motorcycle, and waterproof devices.
The product is designed and built in India according to industry standards.
