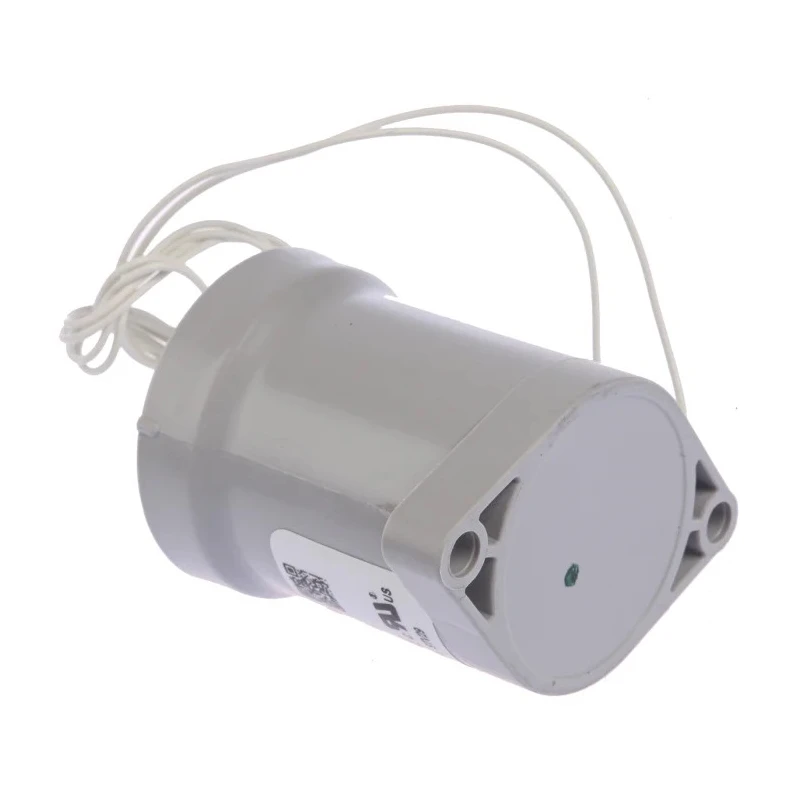

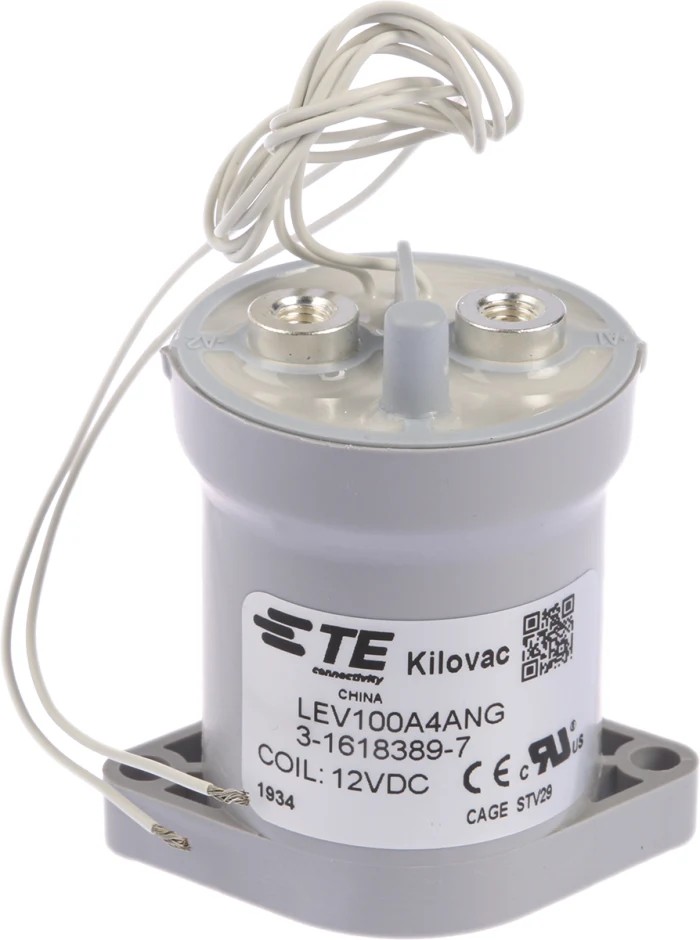

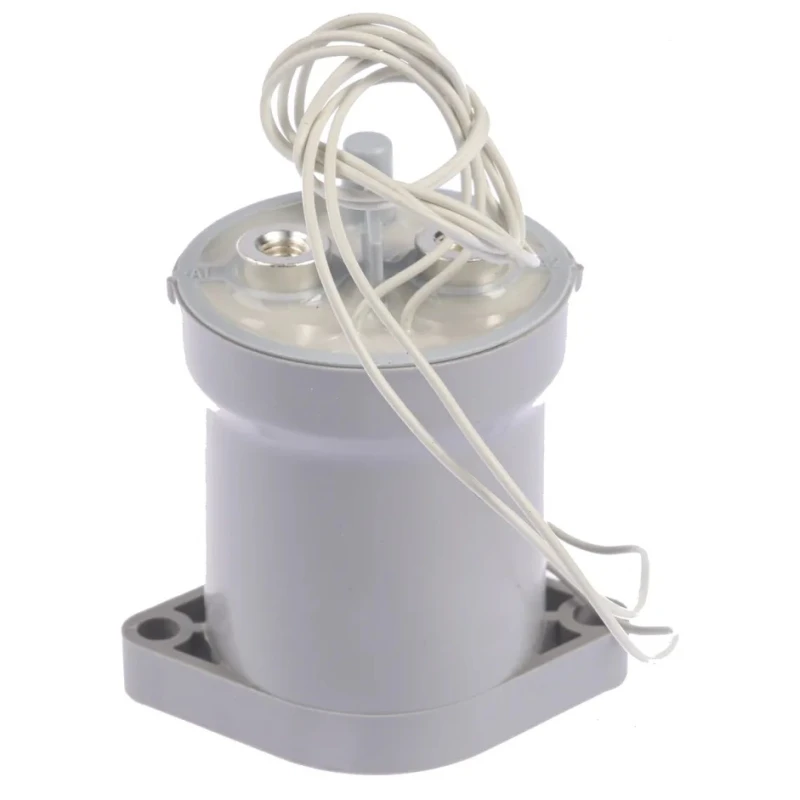

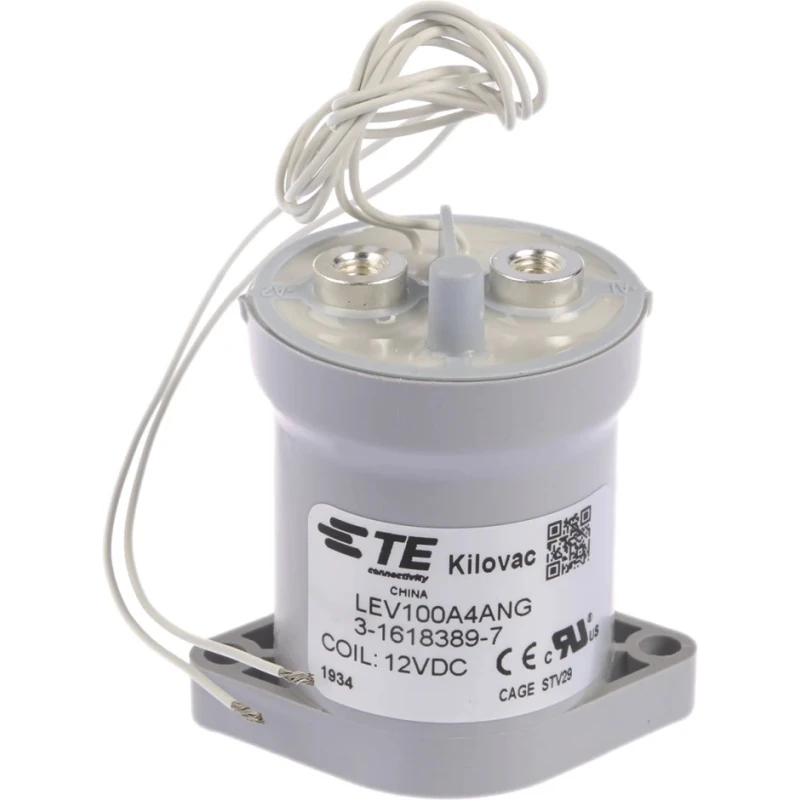

TE Connectivity LEV100 Contactor, 12V DC Coil, 1-Pole, 100 A, 5.5 W Power Rating, 900V Contact Voltage LEV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Function | Safety |
| Model | LEV100 |
| Mount Type | Panel |
| Series | LEV100 |
| Power Rating | 5.5W |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Contact Voltage | 900V |
| Coil Voltage | 12V dc |
| Normal State Configuration | 1 NO |
| Contact Current | 100A |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 100A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Safety |
| Pole and Throw Configuration | SPST |
Key Features
- Operates at 12V DC coil voltage with a power rating of 5.5 W.
- Single pole construction suitable for switching and control circuits.
- Contact current rating of 100 A supports high load operations.
- Hermetically sealed robust design ensures reliability and safety.
- Mount type is panel mount with screw terminal connections for secure wiring.
- Maximum operating temperature up to 85°C, suitable for industrial environments.
- Minimum operating temperature is -40°C allowing use in cold conditions.
- Function designed primarily for safety applications in motor control and circuit isolation.
Product Description
TE Connectivity LEV100 contactor, model LEV100, features a 12V DC coil and is designed as a 1-pole contactor with a 100 A contact current rating and 900V maximum contact voltage. This contactor is specifically made for safety-critical applications including industrial motor control circuit isolation, circuit protection, and automotive battery switching and backup systems.
It is a part of the KILOVAC LEV Series known for its compact, hermetically sealed design occupying only 65.5 cm³, offering intrinsic safety and high voltage isolation with 8kV between open contacts. This product’s mount type is panel mount with secure screw terminal connections enhancing installation flexibility and reliability.
The LEV100 contactor operates within a wide temperature range from -40°C to 85°C, making it suitable for diverse industrial environments. It provides a normal state configuration of 1 Normally Open (NO) contact plus an auxiliary NO contact, allowing various control configurations. The device supports safety functionality with industrial standard compliance including RoHS certification.
Operates at 12V DC coil voltage with 5.5 W power consumption. Single pole (1-pole) configuration for effective switching. Contact current rating of 100 A for heavy-duty industrial use. 900V rated contact voltage for high voltage applications.
Hermetically sealed compact package for reliability and safety. Panel mount with screw terminals ensures firm connections. Wide operating temperature range from -40°C to 85°C. Functionally designed for safety and industrial motor control.
RoHS compliant for environmental safety.
This LEV100 contactor is ideal for roles in industrial automation, automotive systems, manufacturing equipment safety, and energy distribution. It ensures reliable and safe electrical switching, supporting critical operational demands.
Explore more TE Connectivity industrial components and Contactors in the Electronics & Electricals category on EnvMart for versatile and high-quality automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LEV100 contactor operates at a coil voltage of 12V DC.
It has a contact current rating of 100 A, suitable for high load operations.
The maximum contact voltage for this contactor is 900V.
This model has a power rating of 5.5 W.
The contactor operates within a temperature range of -40°C to 85°C.
It features a panel mount design with screw terminal connections for secure wiring.
This contactor has a normal state configuration of 1 Normally Open (NO) contact plus an auxiliary NO contact.
Yes, it is RoHS compliant, ensuring environmental safety.
It is designed primarily for safety applications in motor control and circuit isolation.
The LEV100 is part of the KILOVAC LEV Series.
The terminal type for this model is screw, allowing for secure connections.
The primary function of this contactor is safety, particularly in industrial applications.
