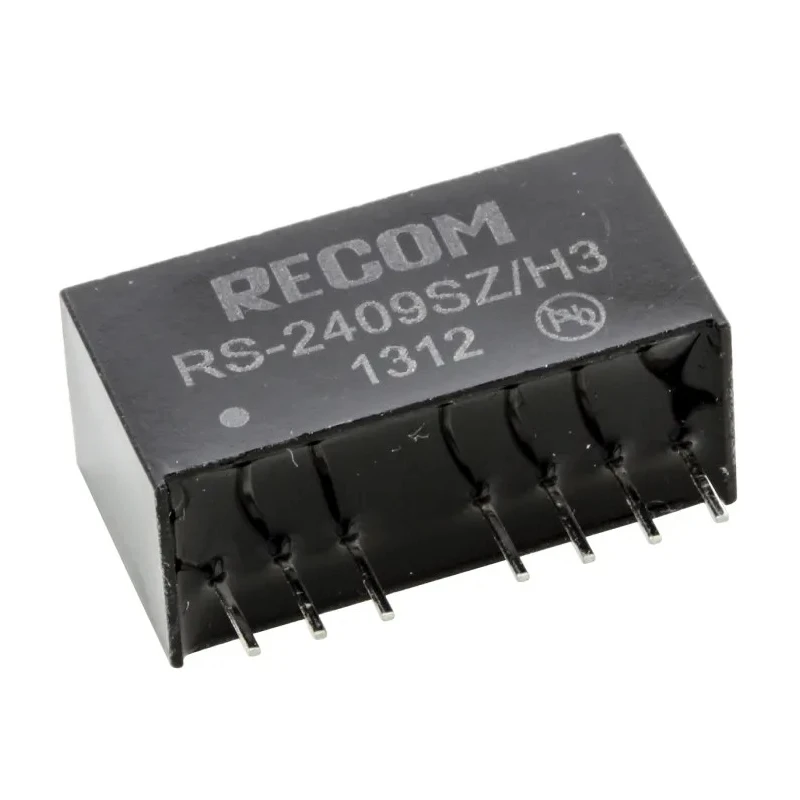

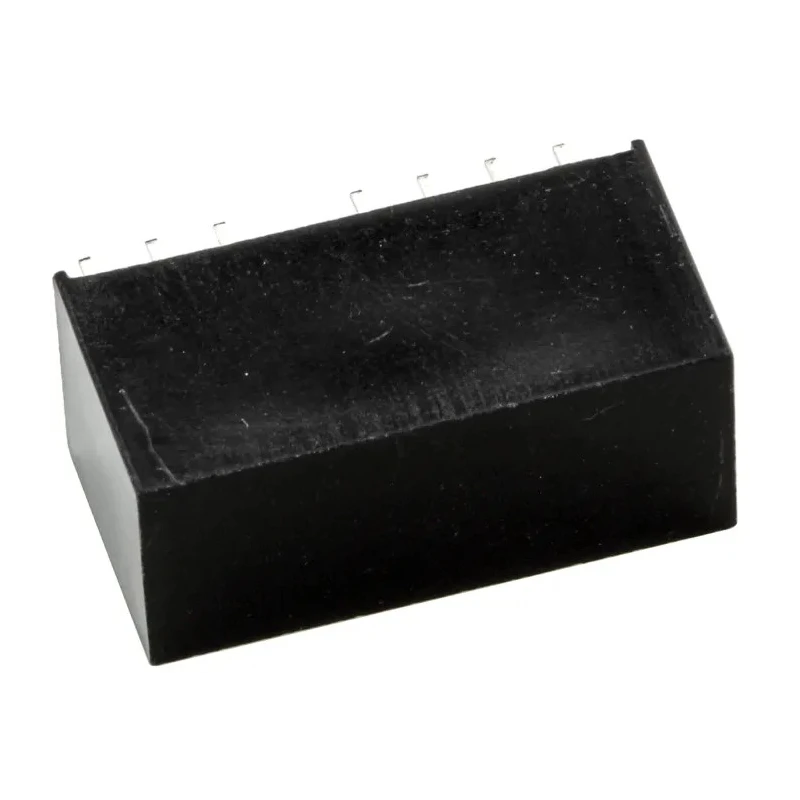

Recom Through-Hole DC/DC Converter RS-2409SZ/H3, 9V DC Output, 222 mA, 36V DC Input, 2W Power, SIP Package
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS DC/DC Converter, 9V dc/ 222 mA, 36V dc In |
| Brand | Recom |
| Efficiency | 80% |

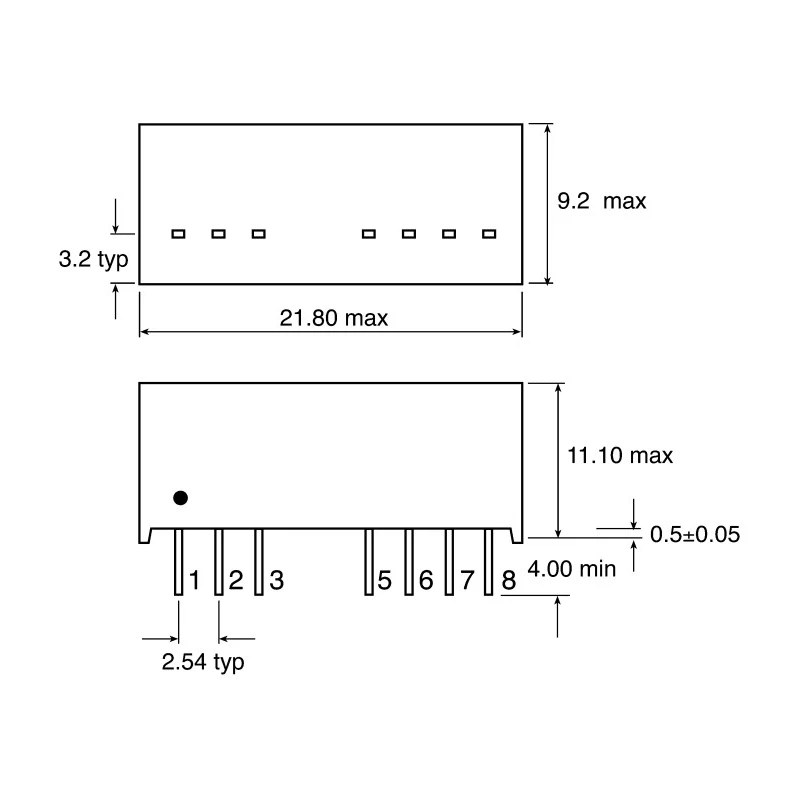

| Length | 21.8mm |
| Model | RS-2409SZ/H3 |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RS |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1398000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V dc |
| Number of Pins | 8 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 222mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- High efficiency of 80% ensures minimal power loss during conversion.
- Features isolated primary and secondary circuits with 3kV DC isolation voltage for safety.
- Compact SIP package type with 8 pins suitable for through-hole mounting.
- Wide operating temperature range from -40°C to +85°C for reliable industrial use.
- Includes continuous short-circuit protection for device safety and durability.
- Mean time between failures (MTBF) is approximately 1,398,000 hours, ensuring long operational life.
- Self-extinguishing housing enhances fire safety compliance.
- Remote on/off function provides convenient operation control.
Product Description
Recom RS-2409SZ/H3 is a through-hole DC/DC Converter designed for industrial and commercial applications requiring a stable 9V DC output of 222 mA and power rating of 2W from input voltages ranging between 9V DC and 36V DC. This converter belongs to the RS series and comes in an 8-pin SIP package suitable for through-hole mounting.
The unit features isolated primary and secondary circuits rated at an isolation voltage of 3kV DC, providing enhanced protection against electrical faults and ensuring safe operation of sensitive electronic equipment. Its high efficiency of 80% supports energy-efficient performance with minimal heat dissipation.
Engineered for harsh environments, the converter operates reliably in temperatures spanning from -40°C to 85°C. It includes continuous short-circuit protection, significantly reducing damage risks to connected devices. The mean time between failures (MTBF) of 1,398,000 hours at 25°C solidifies its durability for long-term deployment.
The device’s self-extinguishing housing improves safety by limiting fire spread, and a remote on/off control feature adds operational convenience. This makes it ideal for industrial process control systems, food and beverage production lines, and pharmaceutical and medical industry applications requiring dependable power conversion.
High efficiency 80% DC/DC conversion. 3kV DC isolation voltage for primary to secondary protection. Wide temperature range from -40°C to +85°C. Self-extinguishing housing enhances safety. Continuous short-circuit protection.
Compact SIP 8-pin through-hole package. Remote on/off functionality. Long MTBF of approximately 1,398,000 hours. Suitable for industrial process control and medical applications.
Recom RS-2409SZ/H3 meets the needs for safe, reliable, and efficient DC voltage conversions in demanding environments. Explore more precision power supply and converter products in the EnvMart Electronics & Electricals category.
