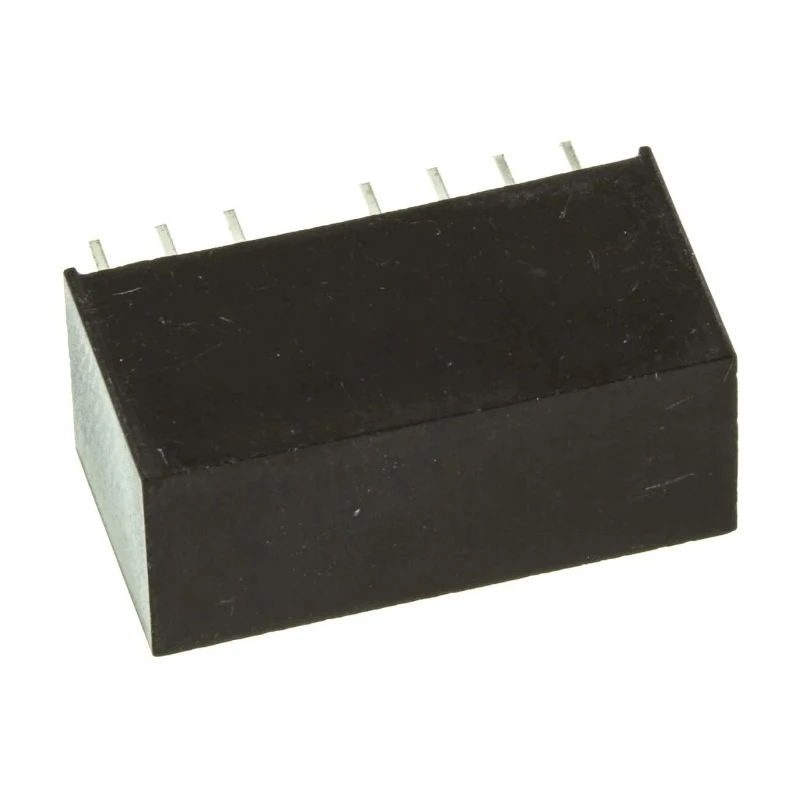

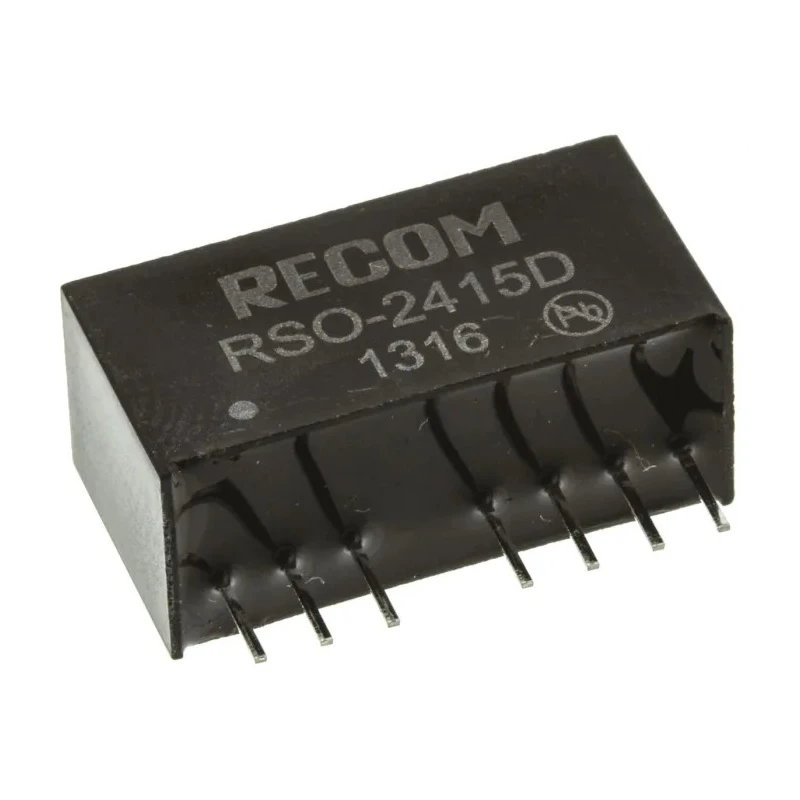

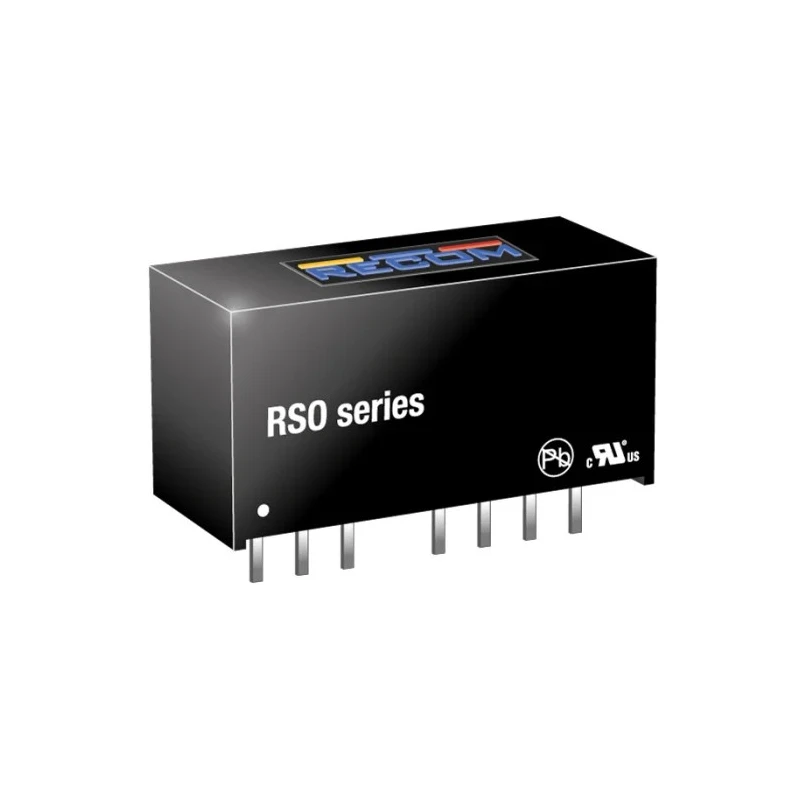

Recom DC/DC Converter 18-36V Input ±15V Output, 1W Power, Through Hole Mount RSO-2415D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RSO DC/DC Converter, 15V dc/ 34 mA, 36V dc I |
| Brand | Recom |
| Efficiency | 80% |
| Length | 21.8mm |
| Model | RSO-2415D |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RSO |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1685000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 34mA |
| Isolation Voltage | 1kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Offers wide operating temperature range from -40°C to 85°C for industrial and commercial use.
- Provides two bipolar outputs of ±15V with 34mA output current for each output.
- Built-in short circuit protection and 1kV isolation for enhanced electrical safety.
- Compact SIP package measures 21.8mm length, 9.2mm width, and 11.1mm depth for space-saving PCB integration.
- Through-hole mount ensures secure placement on circuit boards under vibration conditions.
- Long MTBF of 1,685,000 hours ensures high reliability in demanding environments.
- Ideal for powering low voltage devices in radio & TV broadcasting, gaming consoles, and desktop computers.
Product Description
Recom RSO-2415D is a high-reliability 1W DC/DC Converter designed for converting a wide input voltage range of 18 to 36V DC into balanced bipolar outputs of ±15V DC. It is packaged in a compact SIP format, enabling easy through-hole mounting on printed circuit boards, suitable for industrial and commercial electronics applications.
The converter operates efficiently at approximately 80%, minimizing energy wastage as heat and improving system performance. It supports a wide temperature range from -40°C to 85°C, making it suitable for use in harsh environments and challenging conditions.
This model features a built-in short-circuit protection mechanism and an isolation voltage of 1kV DC, enhancing safety for sensitive electronics and ensuring robustness in volatile work conditions. The MTBF rating of 1,685,000 hours ensures exceptional durability and operational longevity.
Physical dimensions are 21.8mm (length) by 9.2mm (width) by 11.1mm (depth), which allows installation in compact electronic assemblies where space is at a premium. The through-hole mounting design provides a strong mechanical connection to the PCB, even under vibration.
Recom RSO-2415D is ideally suited for use in radio and TV broadcast studios, gaming consoles, desktop computing devices, and other electronic systems requiring stable ±15V bipolar power supply.
Wide operating temperature range from -40°C to 85°C. Remote ON/OFF control support for flexible integration. Low output ripple of 50mVp-p ensures clean signal output. High energy efficiency of approximately 80% reduces thermal management needs.
Short circuit protection built-in to prevent damage to equipment. Compact form factor for ease of installation in confined spaces. Robust isolation voltage of 1kV DC supports safe operation in complex systems. Applications include broadcast, gaming, computing and industrial control systems.
Explore more precision engineered converters and power supplies within the Recom product range on EnvMart for your critical electronic application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 18 to 36V DC.
It provides two bipolar outputs of ±15V DC, with an output current of 34mA for each output.
This model operates with an efficiency of approximately 80%.
The converter measures 21.8mm in length, 9.2mm in width, and 11.1mm in depth.
The maximum operating temperature is 85°C.
Yes, it features built-in short circuit protection to prevent damage to equipment.
The isolation voltage is 1kV DC, which supports safe operation in complex systems.
It has a Mean Time Between Failures (MTBF) rating of 1,685,000 hours.
This model uses a through-hole mounting type for secure placement on circuit boards.
It is suitable for applications in radio and TV broadcasting, gaming consoles, and desktop computing devices.
The output ripple is low, specified at 50mVp-p, ensuring clean signal output.
The minimum operating temperature is -40°C, allowing it to function in harsh environments.
