Mean Well Switching Power Supply 5V DC 40A 200W Chassis Mount UHP-200A-5

Free Delivery in India | Lowest Global Shipping Charges

Mean Well Switching Power Supply 5V DC 40A 200W Chassis Mount UHP-200A-5

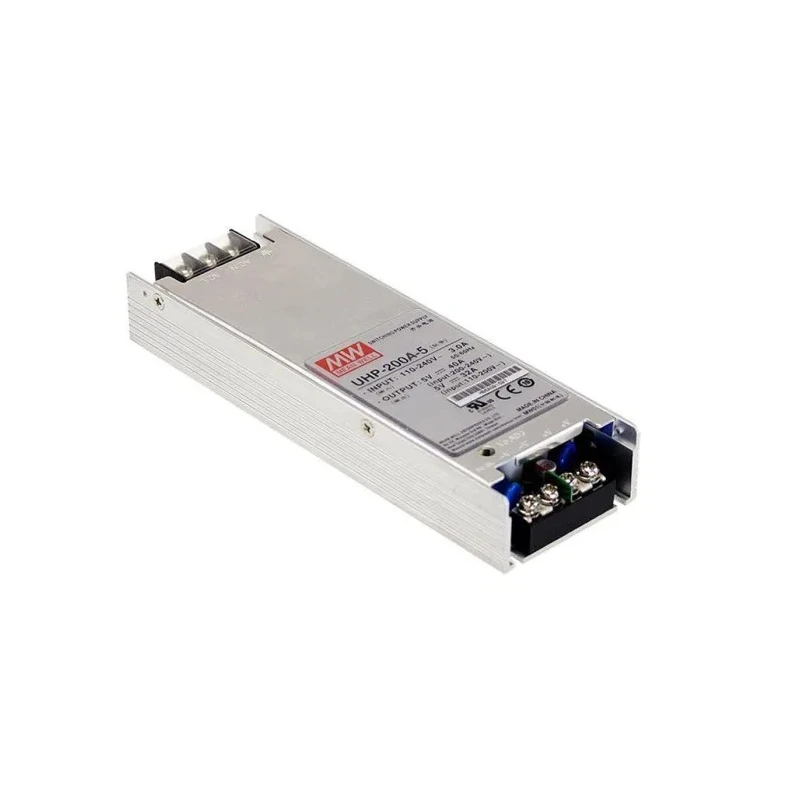

Name: Mean Well Switching Power Supply 5V DC 40A 200W Chassis Mount UHP-200A-5
Brand: MEAN WELL
SKU: 81514



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	200W
Efficiency	88.5%
Length	167mm
Model	UHP-200A-5
Depth	26mm
Gross Weight	420g
Width	55mm
Mount Type	Chassis
Series	UHP-200A
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit / Overload / Over voltage / Over temperature
Maximum Output Voltage	5V dc
SMPS Output Current	40A
Minimum Input Voltage	90V ac

Key Features

Delivers 5V DC output at up to 40A for high-current applications.
Compact, slim and low-profile design with a depth of 26mm for flexible installation.
Fanless convection cooling ensures quiet operation and reduced maintenance needs.
Supports input voltages up to 370V DC and 264V AC for global compatibility.
Includes protection features against short circuit, overload, over-voltage, and over-temperature.
Efficiency rated at 88.5% for optimal energy use and reduced heat generation.
Active power factor correction built-in for improved performance.
Peak load capability up to 150% for demanding operational scenarios.

Product Description

Mean Well UHP-200A-5 is a high-performance industrial switching power supply designed to deliver a stable 5V DC output at a rated current of 40A and maximum power of 200W. The unit stands out with its slim, low-profile form factor (only 26mm thick) making it exceptionally well-suited for space-constrained chassis mounting in control panels and electronic equipment installations.

The fanless convection cooling system minimizes acoustics and maintenance, guaranteeing sustained, quiet operation in environments requiring high reliability and continuous uptime. This model accepts wide-range input voltages: 90V AC minimum, up to 264V AC or 370V DC, supporting deployment across global sites with varying electrical standards.

For demanding power requirements, the UHP-200A-5 offers a peak load capability of up to 150% for short durations, allowing it to support transient loads without risk of failure. Integrated protection circuits safeguard its operation from short circuit, overload, over-voltage, and over-temperature events, helping to ensure the longevity and safety of connected devices.

Efficiency is rated at 88.5%, reducing energy loss and heat generation. The power supply also features built-in active power factor correction for optimal performance, surge input withstand capability up to 300VAC for 5 seconds, high working temperature range from -30°C to +70°C, and DC OK active signal plus redundant function options for advanced system monitoring.

The robust construction and world-wide safety approvals (UL 62368-1, TUV BS EN/EN 62368-1, IS 13252/IEC 60950-1, CSA, CCC, BSMI, AS/NZS62368.1, EAC TP TC 00) make this unit ideal for industrial, automation, laboratory, and embedded power supply applications. Typical use cases include industrial process control, test equipment, LED display systems, security devices, and other applications requiring reliable DC power in compact spaces.

Operating altitude is up to 5000 meters. A LED indicator is present for power-on status. Package contents include one Mean Well UHP-200A-5 power supply. Explore more industrial power supply solutions in the Switching Power Supplies category or browse the full range of Mean Well products on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It accepts input voltages from a minimum of 90V AC up to 264V AC or 370V DC, making it compatible with global electrical standards.

The dimensions are 167mm in length, 55mm in width, and 26mm in depth, allowing for a compact installation.

It has an efficiency rating of 88.5%, which helps reduce energy loss and heat generation.

This unit includes protection against short circuit, overload, over-voltage, and over-temperature events.

The UHP-200A-5 can handle peak loads up to 150% for short durations, accommodating transient loads without failure.

It operates within a temperature range of -30°C to +70°C, suitable for various environments.

The gross weight of this power supply is 420g, making it lightweight for its capacity.

It features a fanless convection cooling system, ensuring quiet operation and reduced maintenance needs.

This model is designed for chassis mounting, making it suitable for installation in control panels and electronic equipment.

Typical applications include industrial process control, test equipment, LED display systems, and security devices, where reliable DC power is required.
