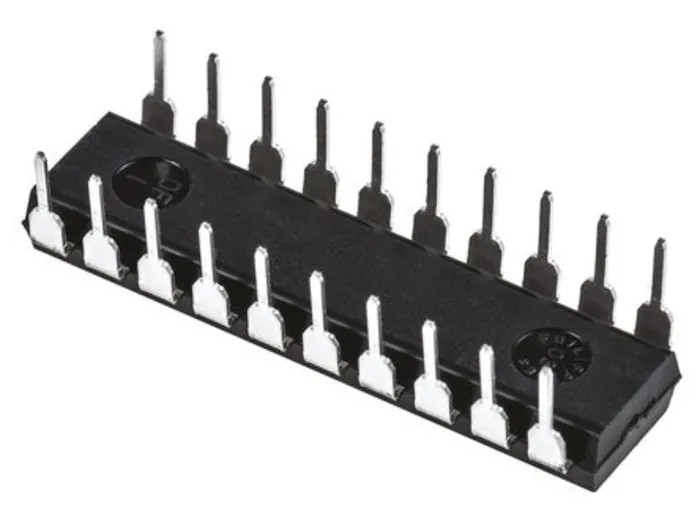

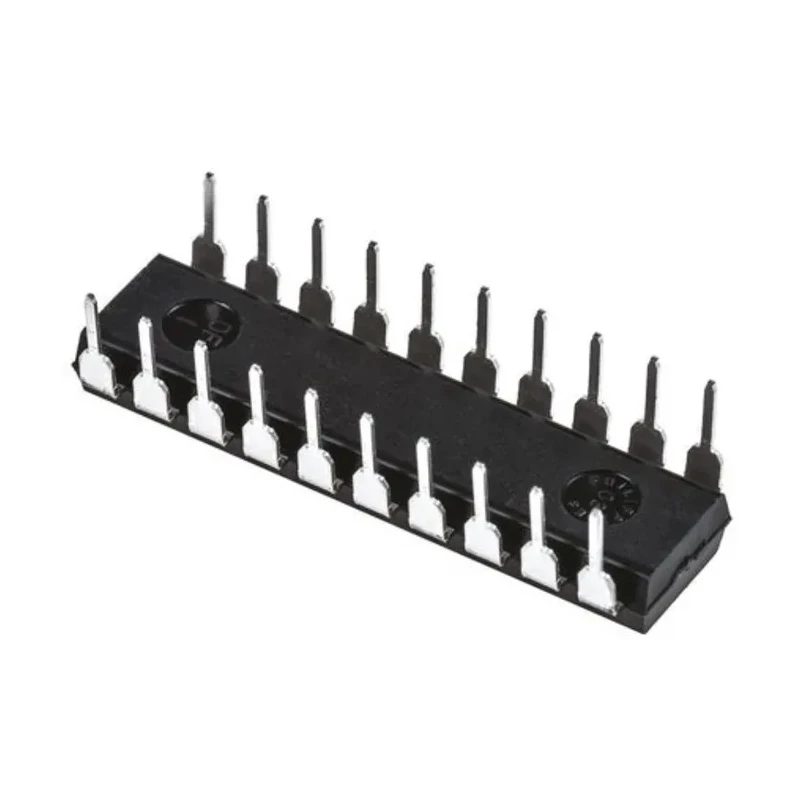

Renesas Electronics MOSFET Gate Driver 4 Outputs 2.5 A 20-Pin 15V PDIP HIP4080AIPZ

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics MOSFET Gate Driver 4 Outputs 2.5 A 20-Pin 15V PDIP HIP4080AIPZ

Name: Renesas Electronics MOSFET Gate Driver 4 Outputs 2.5 A 20-Pin 15V PDIP HIP4080AIPZ
Brand: Renesas Electronics
SKU: 136787
Price: 8.1 USD
Availability: InStock



Category MOSFET Gate Driver Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	4.95mm
Length	26.9mm
Model	HIP4080AIPZ
Width	7.11mm
Mount Type	Through Hole
Series	HIP4080A
Output Current	2.5A
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Number of outputs	4
Rise Time	10ns
Pin Count	20
Minimum Supply Voltage	15V
Number of Drivers	4
Fall Time	10ns
Driver Type	MOSFET

Key Features

Operates at a minimum and maximum supply voltage of 15V.
Package type is PDIP with through-hole mount suitable for PCB integration.
Driver type is MOSFET offering fast switching with 10ns rise and fall times.
Temperature operating range spans from -40°C to 85°C ensuring robust performance.
Compact physical dimensions with length 26.9mm, width 7.11mm, and height 4.95mm.
Contains 4 driver outputs for half bridge, full bridge, and three-phase applications.
High performance input-to-output propagation delay tailored for power MOSFET and IGBT driving.
Engineered for industrial, power management, and electronic control system uses.

Product Description

Renesas Electronics HIP4080AIPZ MOSFET Gate Driver is a high-performance power management IC designed to drive MOSFETs with 4 outputs capable of delivering 2.5A output current. Housed in a 20-pin PDIP package with through-hole mounting, it operates at a fixed supply voltage of 15V. The device features fast switching capabilities with 10ns rise and fall times, making it suitable for driving half bridge, full bridge, and three-phase MOSFET and IGBT configurations.

With a robust operating temperature range from -40°C to 85°C, the HIP4080AIPZ delivers reliable performance across industrial and electronic applications including power converters and motor controls. The compact 26.9mm by 7.11mm body and 4.95mm height enable ease of integration in various PCB designs. Its driver architecture ensures minimal propagation delay, enhancing efficiency in power switching circuits.

This MOSFET gate driver does not hold any automotive standard certifications, but remains well-suited for demanding electronics and power management scenarios. It is specifically optimized for use in industrial, automation, power electronics, and laboratory electronics environments.

Operates at both minimum and maximum supply voltage of 15V. Through-hole PDIP package ensures robust mechanical mounting. Fast switching speed with 10ns rise and fall times increases efficiency. Wide operating temperature range from -40°C to 85°C supports harsh environments.

Multiple outputs enable driving complex half bridge and three-phase systems. Compact dimensions allow for flexible PCB layout and integration. High drive current capacity of 2.5A ensures compatibility with high power MOSFETs.

No special automotive certifications; tailored for industrial and electronic applications.

Package includes one Renesas Electronics HIP4080AIPZ MOSFET Gate Driver IC in PDIP 20-pin format, designed for compatibility with standard electronic manufacturing processes. This product is ideal for engineers seeking a reliable, high-speed MOSFET driver solution for power conversion and control circuits.
