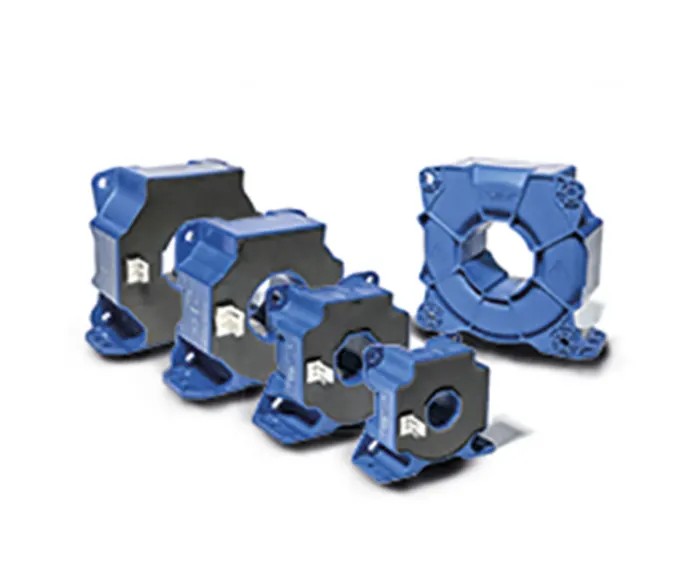

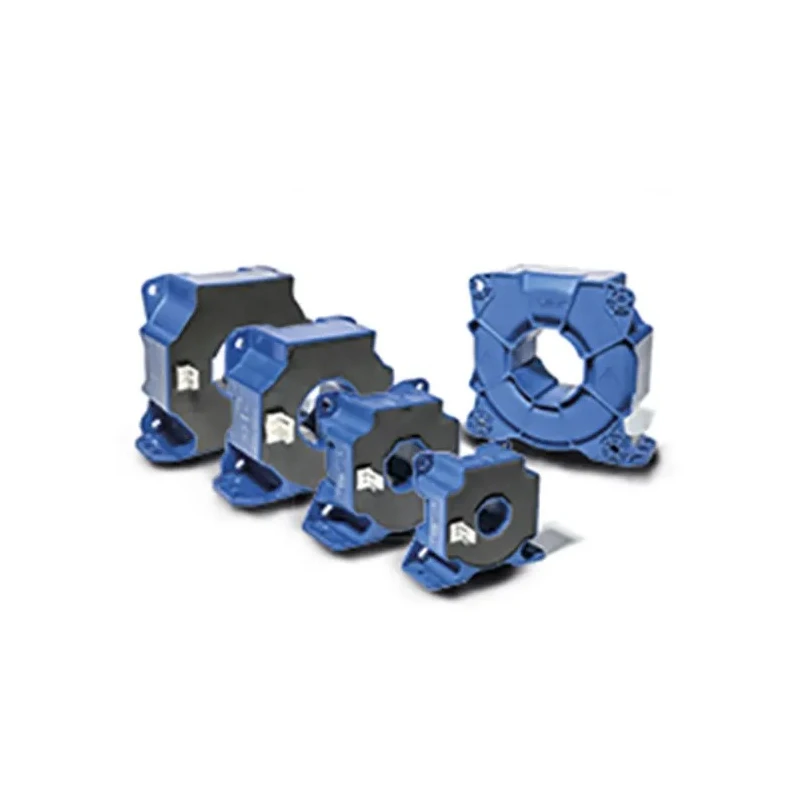

LEM LF 2010-S Series Current Transformer 3000A 5000 Turns Ratio, -14.25V, 14.25V, -25.2V, 25.2V LF 2010-S

LEM LF 2010-S Series Current Transformer is engineered for industrial applications requiring accurate measurement of dc, ac, and pulsed currents. This model offers galvanic separation between primary and secondary circuits, enhancing safety and measurement precision. The current transformer supports a primary current rating of 3000A and a turns ratio of 5000.

It operates reliably within a temperature range from -40°C to 85°C and can handle maximum operating frequencies up to 150kHz, making it suitable for a wide range of electrical monitoring applications including process control, automation, and electrical testing.

The transformer features a robust panel mount design and a plastic body construction compliant with UL94-V0 for flame retardancy. Terminal connections use the JST S3P Vh type, ensuring secure and reliable wiring.

Additional technical advantages include a low secondary dc resistance of 18.6Ω for reduced power loss and a supply voltage flexibility accommodating -14.25V, 14.25V, -25.2V, and 25.2V. These features contribute to its high accuracy and stable performance in noisy industrial environments.

Measurement suitable for dc, ac, and pulsed currents with high accuracy. Galvanic isolation ensures electrical safety and signal integrity. Panel mount type for versatile installation. Supports maximum operating frequency up to 150kHz.

Compact design with plastic body material rated UL94-V0 for flame retardance. Wide supply voltage range including -14.25V, 14.25V, -25.2V, and 25.2V options. Low secondary dc resistance of 18.6Ω ensuring minimal energy loss.

Terminal type: JST S3P Vh for stable electrical connections. Manufactured in Bulgaria ensuring European quality standards.

This Current Transformer is ideal for industrial automation, electrical testing, and process control applications where precise current measurement and safety are critical. The LF 2010-S model from LEM provides high noise immunity and low temperature drift for reliable performance.
