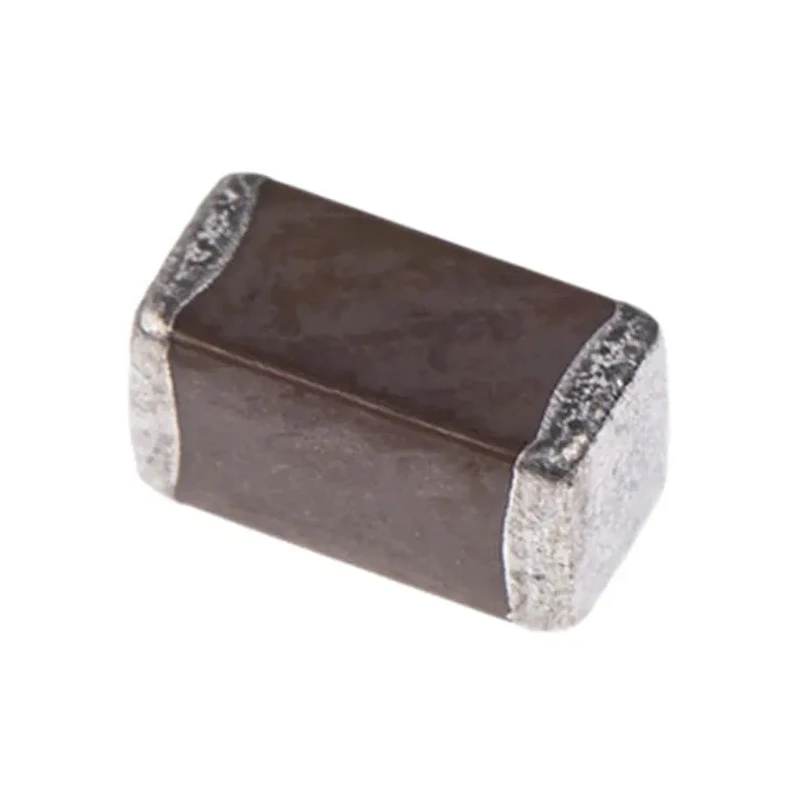

TDK 33 nF Multilayer Ceramic Capacitor 50V DC X7R Dielectric, ±10 % Tolerance Surface Mount 0402 CGA2B3X7R1H333K050BB

Free Delivery in India | Lowest Global Shipping Charges

TDK 33 nF Multilayer Ceramic Capacitor 50V DC X7R Dielectric, ±10 % Tolerance Surface Mount 0402 CGA2B3X7R1H333K050BB



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.5mm
Length	1mm
Model	CGA2B3X7R1H333K050BB
Packaging	Tape & Reel
Width	0.5mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	33nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0402
Dielectric	X7R
Automotive Standard	AEC-Q200

Key Features

The capacitor features a surface mount 0402 package size measuring 1 mm by 0.5 mm by 0.5 mm.
Utilizes X7R dielectric which provides excellent thermal stability and performance.
Designed to meet AEC-Q200 automotive standards, ensuring high reliability in automotive applications.
Operates within a temperature range of -55°C to 125°C, suitable for harsh environments.
Packaging is tape and reel for efficient automatic mounting and assembly.
Low equivalent series resistance (ESR) ensures low self-heating and excellent frequency characteristics.
Highly durable with superior mechanical strength and guaranteed performance from a mature manufacturing process.

Product Description

TDK CGA2B3X7R1H333K050BB is a 33 nanofarad (nF) multilayer ceramic capacitor designed for high reliability and automotive use. It has a voltage rating of 50 volts direct current (50V DC) and features a ±10 % capacitance tolerance. This capacitor employs an X7R dielectric, known for excellent heat resistance and stable performance in varying temperature conditions.

The capacitor is constructed in a compact surface mount 0402 package with dimensions of 1 mm length, 0.5 mm width, and 0.5 mm height, making it suitable for high-density electronic circuits. The device complies with the AEC-Q200 automotive quality standard, making it ideal for use in automotive battery line smoothing, sensor modules, and engine control units.

The operating temperature range spans from a minimum of -55°C to a maximum of 125°C, ensuring durability in demanding environments. Packaging in tape and reel format facilitates automatic mounting in production lines, improving assembly efficiency.

With a low equivalent series resistance (ESR), the CGA series capacitors minimize self-heating and deliver high ripple resistance and excellent frequency characteristics. Their mechanical robustness and proven manufacturing process guarantee superior reliability and performance.

Recommended applications include automotive anti-lock brake systems, infotainment systems, smart meters, solar inverters, AC-DC battery chargers, transportation, and agricultural electronics where high accuracy and reliability are critical.

The capacitor features a surface mount 0402 package size measuring 1 mm by 0.5 mm by 0.5 mm. Utilizes X7R dielectric which provides excellent thermal stability and performance. Designed to meet AEC-Q200 automotive standards, ensuring high reliability in automotive applications.

Operates within a temperature range of -55°C to 125°C, suitable for harsh environments. Packaging is tape and reel for efficient automatic mounting and assembly. Low equivalent series resistance (ESR) ensures low self-heating and excellent frequency characteristics.

Highly durable with superior mechanical strength and guaranteed performance from a mature manufacturing process. Explore a wide range of Multilayer Ceramic Capacitors from TDK on EnvMart for your industrial, automotive, and electronics manufacturing needs.
